HK2214-RS-AS1-L271 INA

All dimensions

1. Inner (d) MM 22,00
2. Outer (D) MM 28,00
3. Width (B) MM 14,00
4. Under roller diameter (F w) mm 22,00
5. Width (C) mm 14,00

Suffix description

1. RS One Seal, Buna-N Rubber, Radial Type
2. AS1 Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
3. L271 Anti Wear Protection Grease

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number HK2214-RS-AS1-L271 INA
4. Also known as 0005790760968

5. EAN 4054364526894
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 13400
2. Radial Dynamic Load Rating Cr (N) 9100
3. Basic static load rating, radial (C 0r) "13400.0000"
4. Limiting speed (n G) "7000.0000"
5. Limiting speed for grease lubrication (n G Grease) "7000.0000"
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05

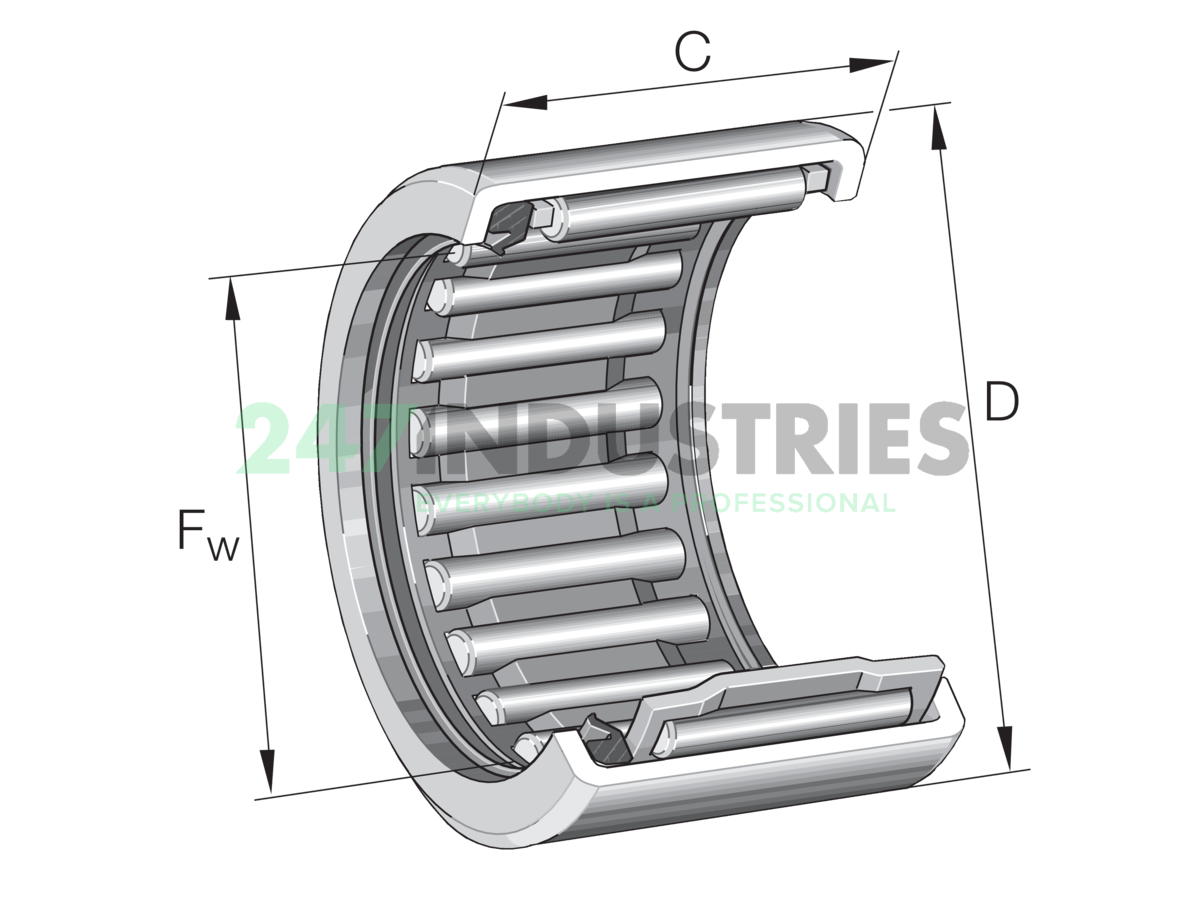

8. Medias description Drawn cup needle roller bearing open end HK..-RS-AS1, single row, with cage
