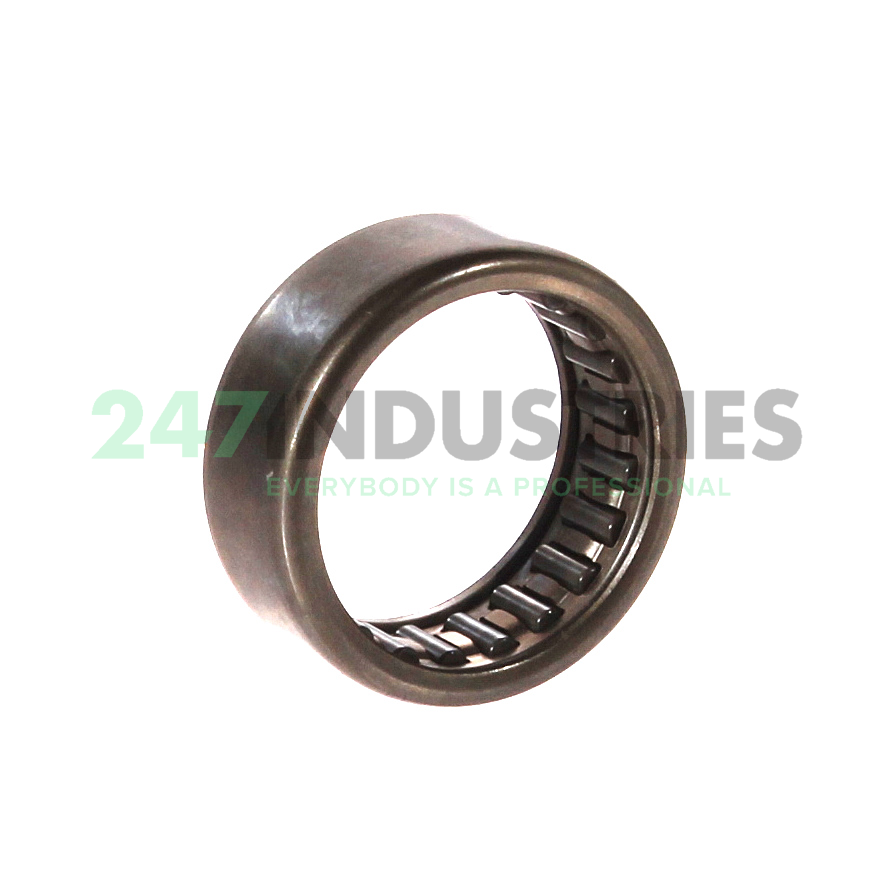

HK2010 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 26
3. Width (B) MM 10
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.3937
7. Under roller diameter (F w) mm 20
8. Width (C) mm 10

Technical details

1. Availability 31 pcs
2. Brand INA
3. Item number HK2010 INA
4. Also known as 0060071200000

5. EAN 4054364120436
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.012

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 8200
2. Radial Dynamic Load Rating Cr (N) 6400
3. Limiting speed (n G) 12700
4. Limiting speed for grease lubrication (n G Grease) 7600
5. Reference speed (n ϑr) 10000
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias description Drawn cup needle roller bearing open end HK, single row, with cage
