HK1814-RS-L271 INA

All dimensions

1. Inner (d) MM 18
2. Outer (D) MM 24
3. Width (B) MM 14
4. Inner (d) Inch 0.7087
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.5512
7. Under roller diameter (F w) mm 18
8. Width (C) mm 14

Suffix description

1. RS One Seal, Buna-N Rubber, Radial Type
2. L271 Anti Wear Protection Grease

Technical details

1. Availability 34 pcs
2. Brand INA
3. Item number HK1814-RS-L271 INA
4. Also known as 0007010170968

5. EAN 4047643187015
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.015

Product Properties

1. Seal RS - Rubber Seal on One Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 10900
2. Radial Dynamic Load Rating Cr (N) 8100
3. Limiting speed (n G) 8400
4. Limiting speed for grease lubrication (n G Grease) 8400
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05

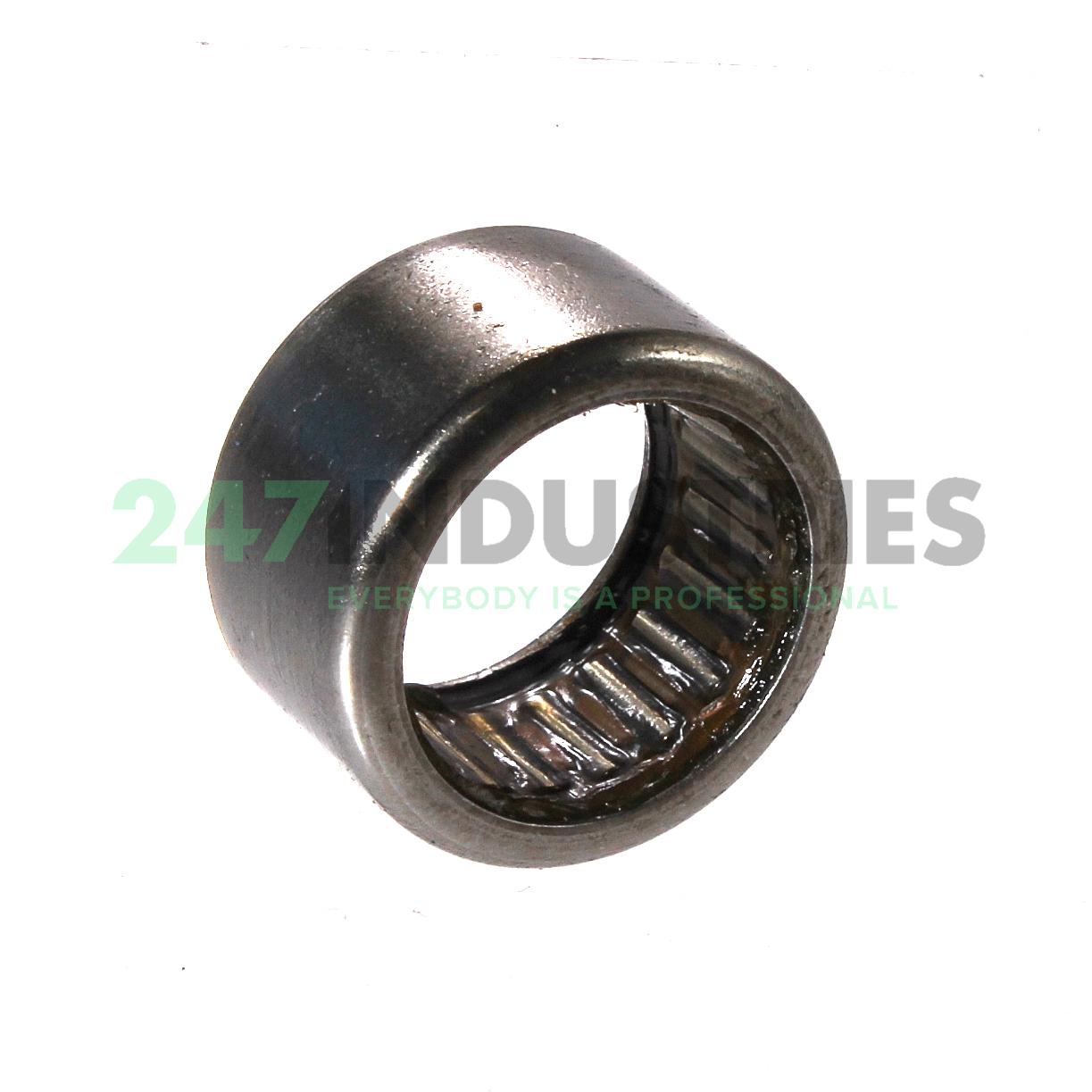

7. Medias description Drawn cup needle roller bearings with open ends HK..-RS, lip seal on one side, to DIN 618
