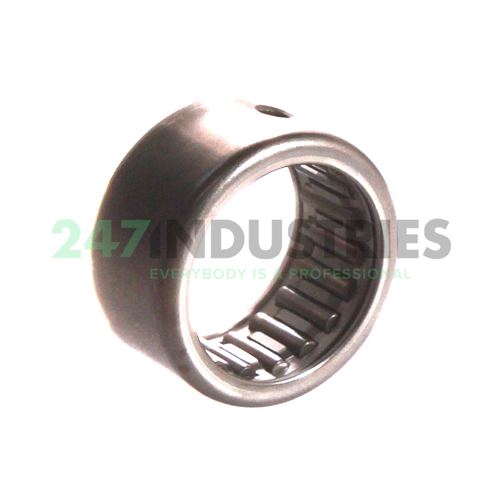

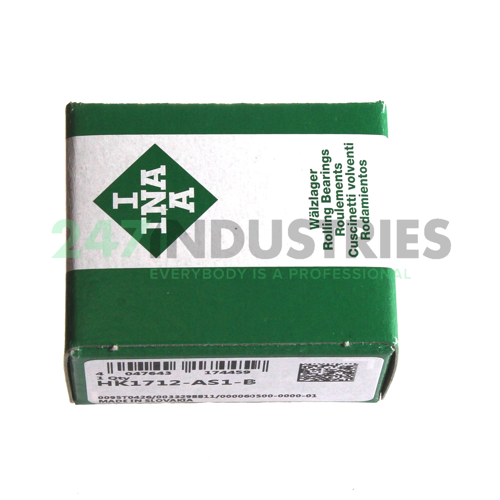

HK1712-AS1-B INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 23
3. Width (B) MM 12
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 0.9055
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 17
8. Width (C) mm 12

Suffix description

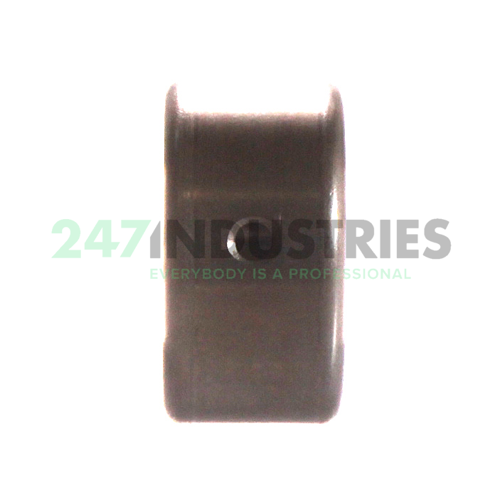

1. AS1 Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
2. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 20 pcs on Tue 23 Dec
2. Brand INA
3. Item number HK1712-AS1-B INA
4. Also known as 0000605000000

5. EAN 4047643174459
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.012

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 10300
2. Limiting speed (n G) 14700
3. Limiting speed for grease lubrication (n G Grease) 8800
4. Reference speed (n ϑr) 11200
5. ECLASS number 23-05-09-05
6. ECLASS2 number 23-05-09-05
