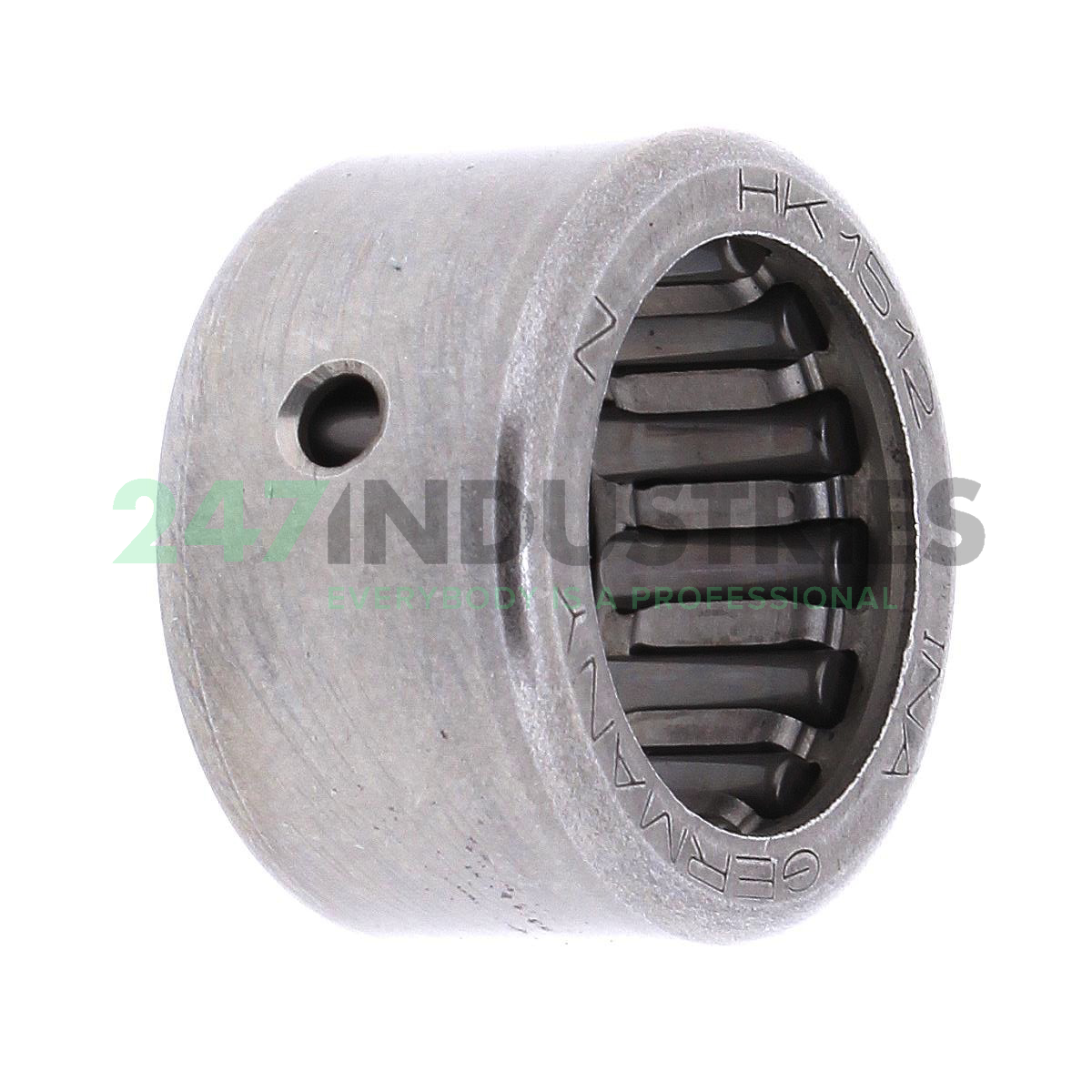

HK1512-AS1-B INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 21
3. Width (B) MM 12
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 0.8268
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 15
8. Width (C) mm 12

Suffix description

1. AS1 Needle Roller Bearing With Lubrication Hole(s) In The Outer Ring. A Figure Following The As Indicates The Number Of Holes
2. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)

Technical details

1. Availability 55 pcs
2. Brand INA
3. Item number HK1512-AS1-B INA
4. Also known as 0037372090000

5. EAN 4012802417623
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.011

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 9400
2. Radial Dynamic Load Rating Cr (N) 7900
3. Limiting speed (n G) 16300
4. Limiting speed for grease lubrication (n G Grease) 9800
5. Reference speed (n ϑr) 12300
6. ECLASS number 23-05-09-05
7. ECLASS2 number 23-05-09-05
8. Medias description Drawn cup needle roller bearing open end HK..-AS1-B, single row, with cage
