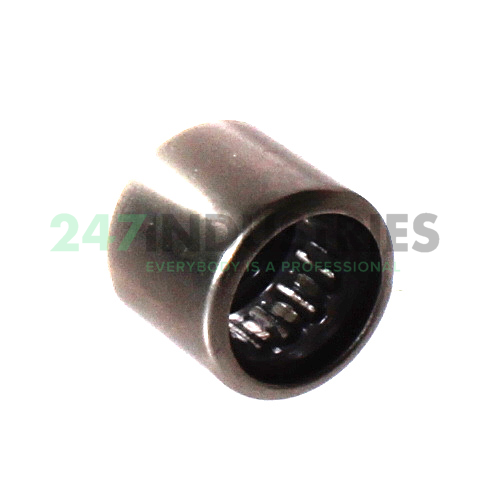

HK1012-2RS-FPM-DK-B-L178 INA

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 14
3. Width (B) MM 12
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 0.5512
6. Width (B) Inch 0.4724

Suffix description

1. 2RS Lip Seals On Both Sides
2. FPM Fluorcarbon (Viton®) - Seal Of Series G, Made From Fluoro Rubber
3. DK Tested On Sealing
4. B The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
5. L178 High Speed Grease, Low And High Temp. -50°C / 120°C. Longtime Limit Temperature 75°C
6. QZ43 Unknown

Technical details

1. Availability 739 pcs
2. Brand INA
3. Item number HK1012-2RS-FPM-DK-B-L178 INA
4. Also known as 0074487751193

5. EAN 4047643190183
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.004

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides

Downloads and links

1. Link to manufacturer Link to manufacturer
