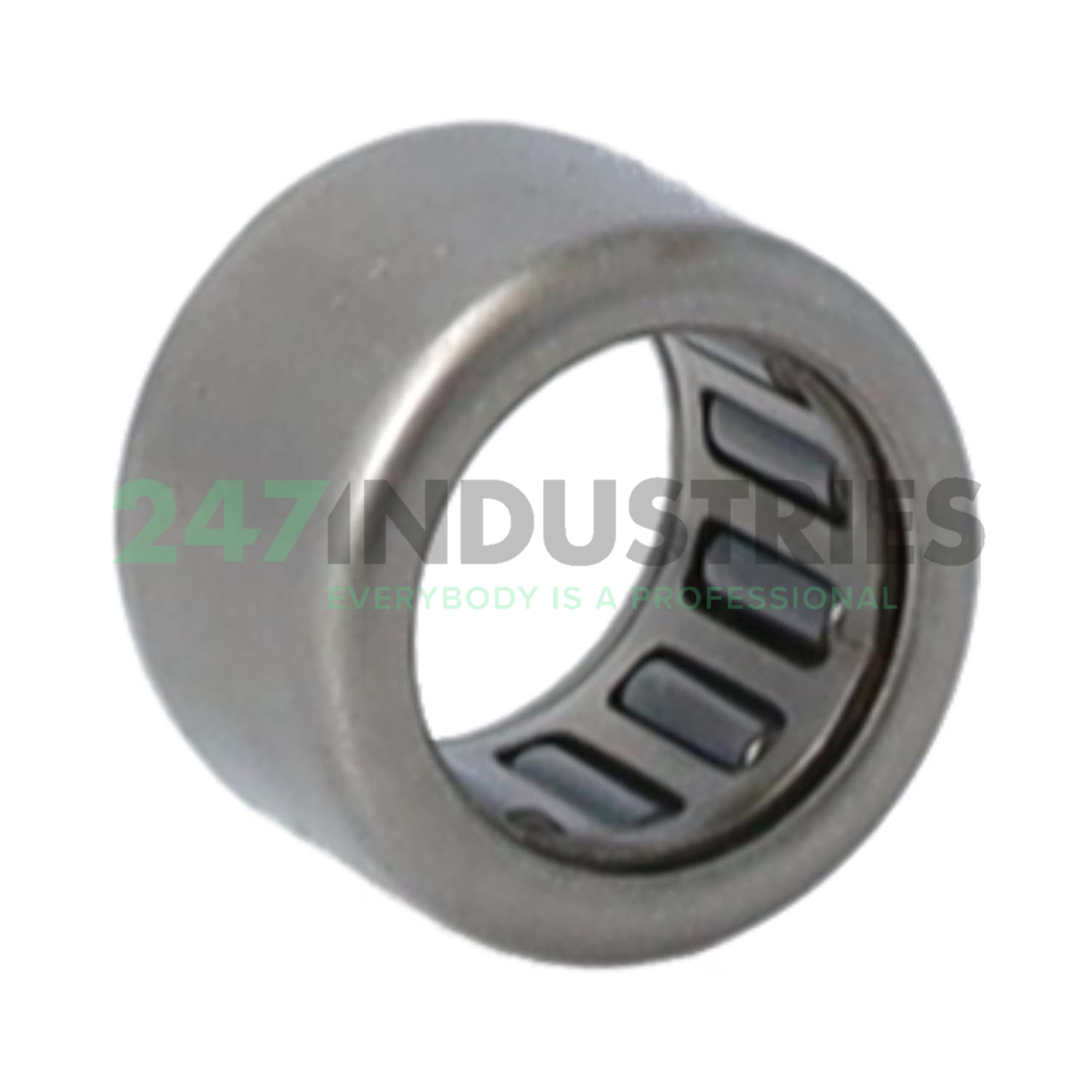

HK0808 INA

All dimensions

1. Inner (d) MM 8
2. Outer (D) MM 12
3. Width (B) MM 8
4. Inner (d) Inch 0.315
5. Outer (D) Inch 0.4724
6. Width (B) Inch 0.315
7. Under roller diameter (F w) mm 8
8. Width (C) mm 8

Technical details

1. Availability 924 pcs
2. Brand INA
3. Item number HK0808 INA
4. Also known as 0060066550000

5. EAN 4012802595932
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.0026

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 2600
2. Limiting speed (n G) 29500
3. Limiting speed for grease lubrication (n G Grease) 17700
4. Reference speed (n ϑr) 23800

Downloads and links

1. Link to manufacturer Link to manufacturer
