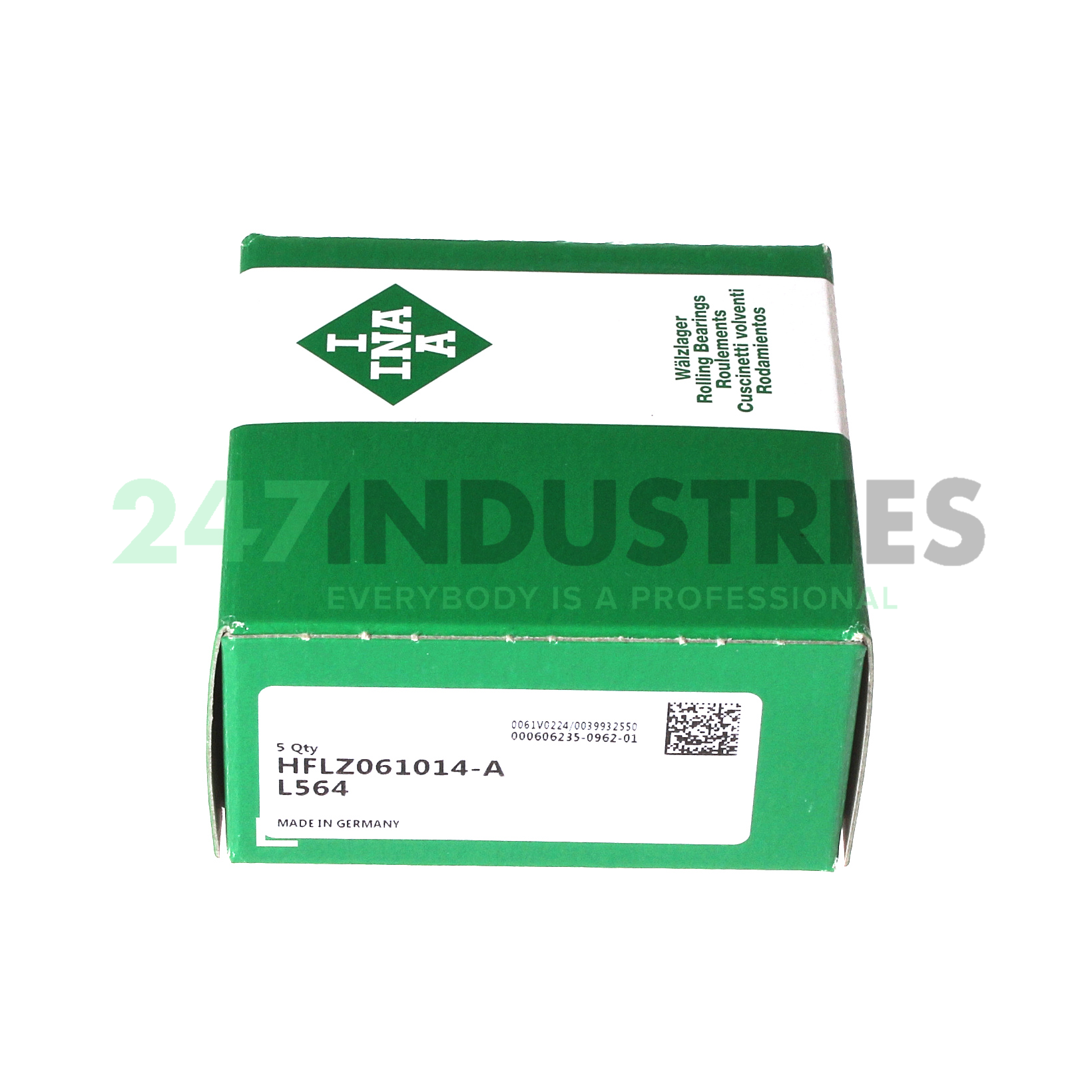

HFLZ061014-A-L564 INA

All dimensions

1. Inner (d) MM 9,53
2. Outer (D) MM 15,88
3. Width (B) MM 22,23
4. Inner (d) Inch 0.375
5. Outer (D) Inch 0.625
6. Width (B) Inch 0.875
7. Under roller diameter (F w) mm 9,525

Suffix description

1. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
2. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 122 pcs
2. Brand INA
3. Item number HFLZ061014-A-L564 INA
4. Also known as 0006062350962
   HFLZ061014

5. EAN 4012802605808
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.014

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 5500
2. Limiting speed for rotating shaft (n GW) 14000
3. Limiting speed for rotating outer ring (n GA) 12000
4. ECLASS number 23-05-21-90
5. ECLASS2 number 23-05-21-90

Downloads and links

1. Link to manufacturer Link to manufacturer
