HFL1226-L564 INA

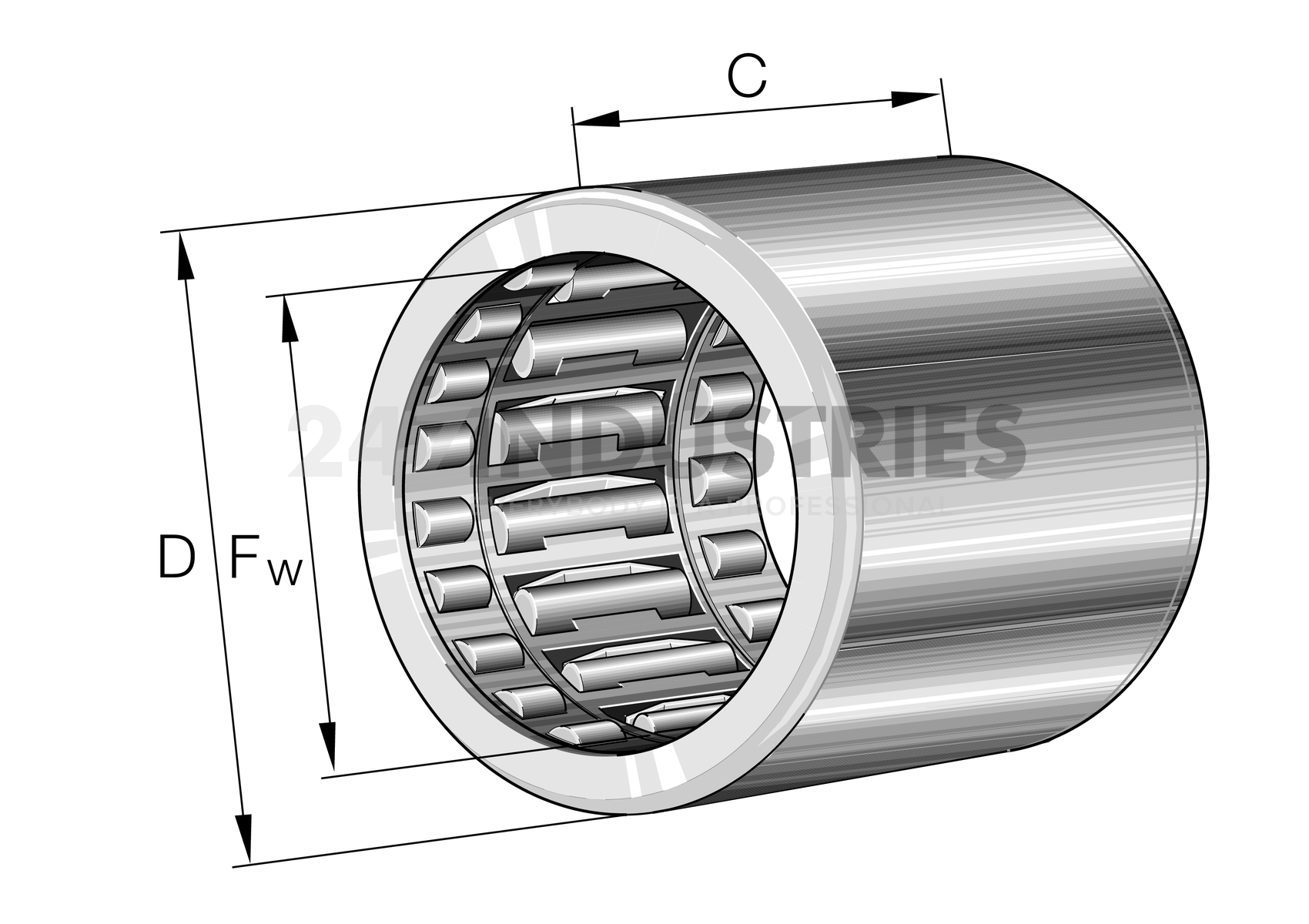

All dimensions

1. Inner (d) MM 12,00
2. Outer (D) MM 18,00
3. Width (B) MM 26,00
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.7087
6. Width (B) Inch 1.0236
7. Under roller diameter (F w) mm 12,00

Suffix description

1. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 373 pcs
2. Brand INA
3. Item number HFL1226-L564 INA
4. Also known as 0016001840962
   HFL1226

5. EAN 4047643183222
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.01777

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6700
2. Radial Dynamic Load Rating Cr (N) 6300
3. Basic static load rating, radial (C 0r) "6700.0000"
4. Limiting speed for rotating shaft (n GW) "11000.0000"
5. Limiting speed for rotating outer ring (n GA) "8000.0000"
6. ECLASS number 23-05-21-90
7. ECLASS2 number 23-05-21-90
8. Medias description Drawn cup roller clutch HFL, with bearing
