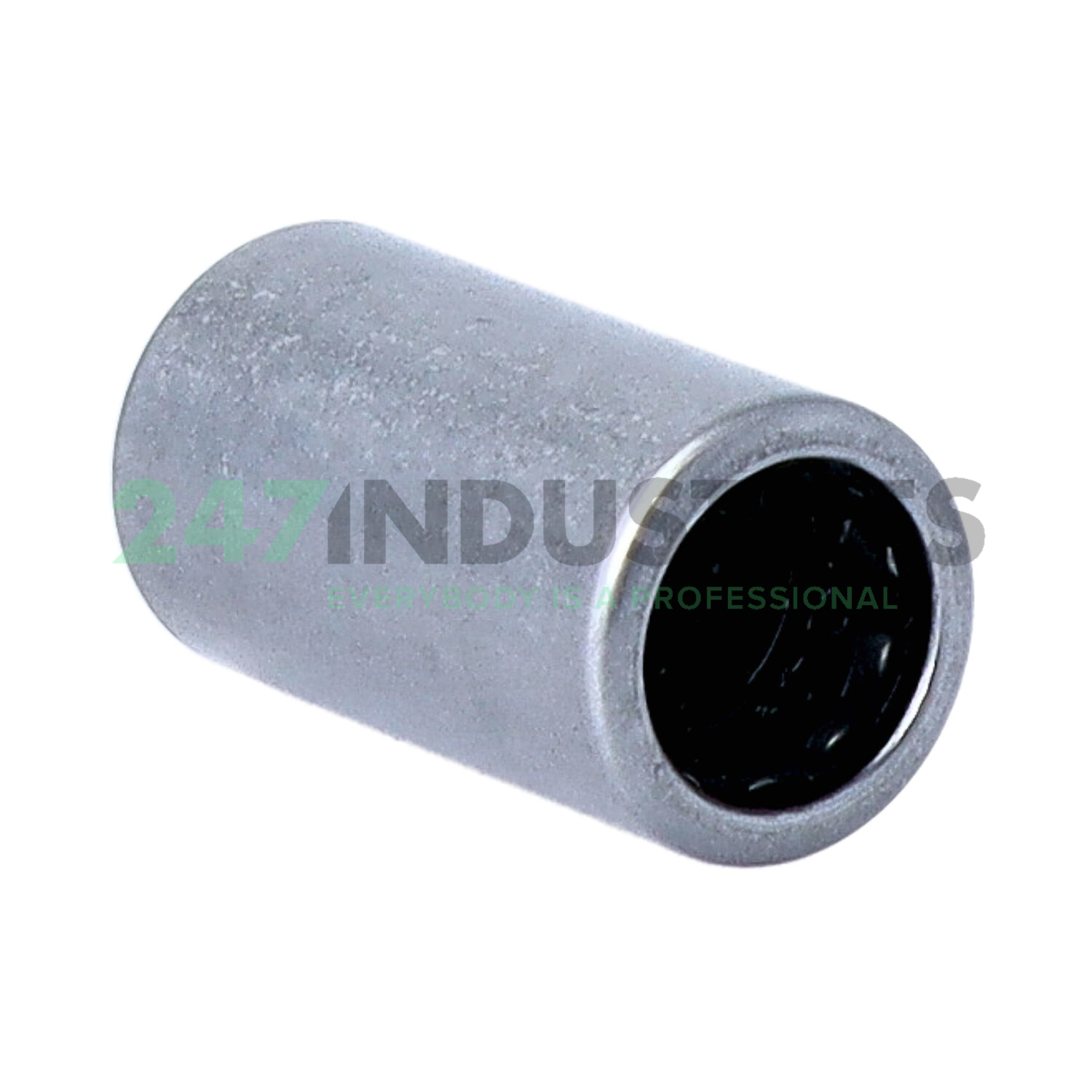

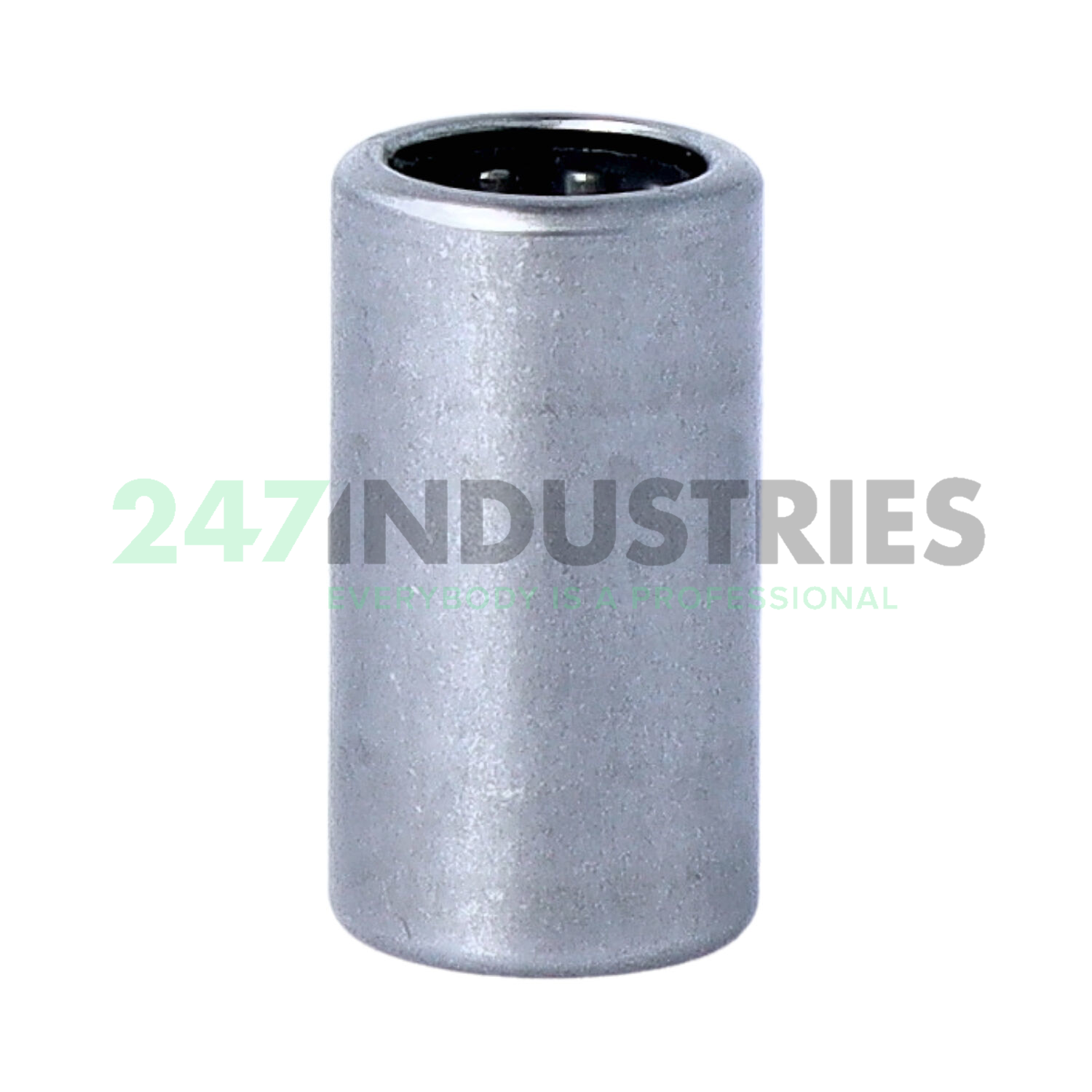

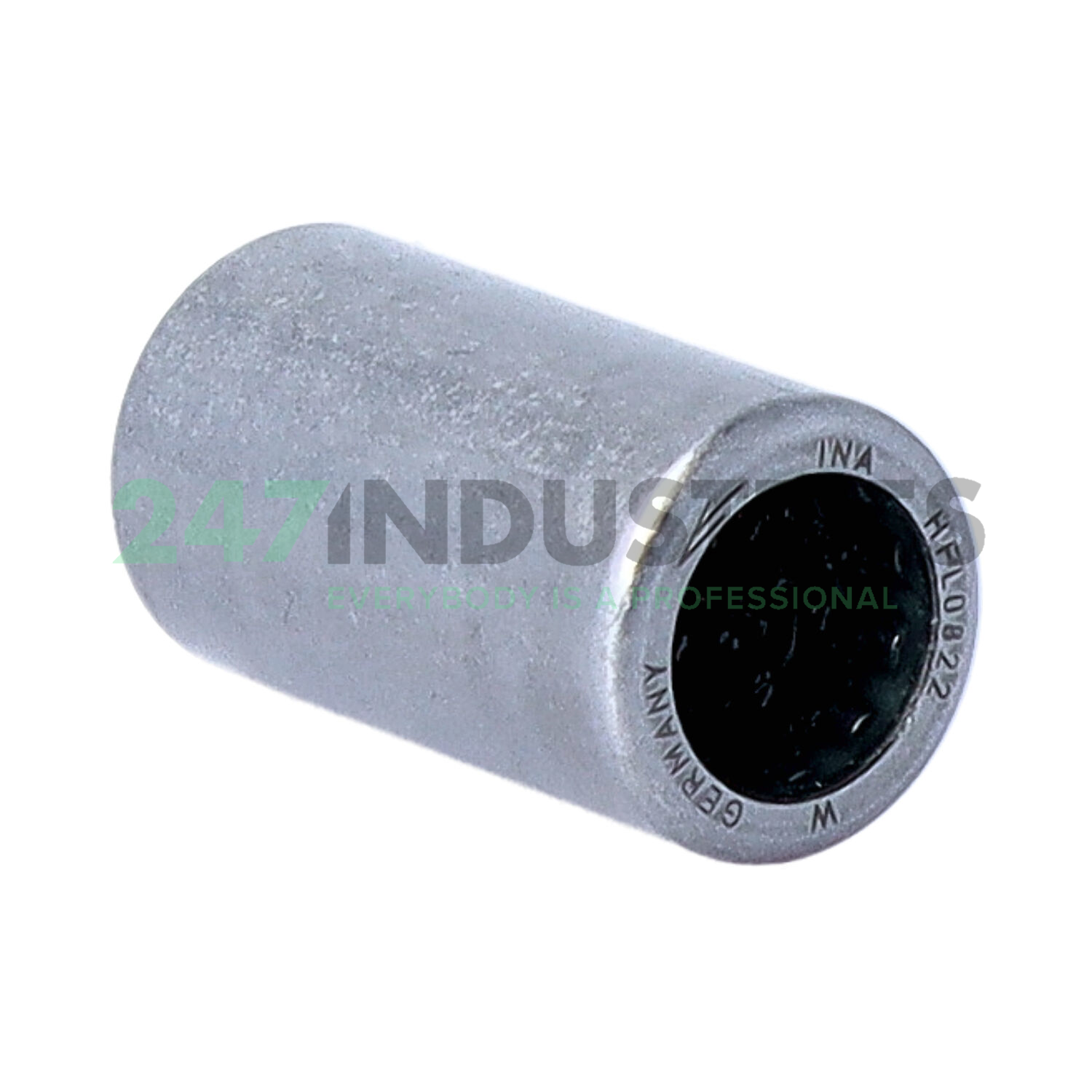

HFL0822-L025 INA

All dimensions

1. Inner (d) MM 8
2. Outer (D) MM 12
3. Width (B) MM 22
4. Inner (d) Inch 0.315
5. Outer (D) Inch 0.4724
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 8

Suffix description

1. L025 Exxon Mobil Unirex N2 Grease

Technical details

1. Availability 22 pcs
2. Brand INA
3. Item number HFL0822-L025 INA
4. Also known as 0015854871463

5. EAN 4012802667714
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.004

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 3950
2. Limiting speed for rotating shaft (n GW) 17000
3. Limiting speed for rotating outer ring (n GA) 12000
4. ECLASS number 23-05-21-90
5. ECLASS2 number 23-05-21-90

Downloads and links

1. Link to manufacturer Link to manufacturer
