HFL0822-KF-L564 INA

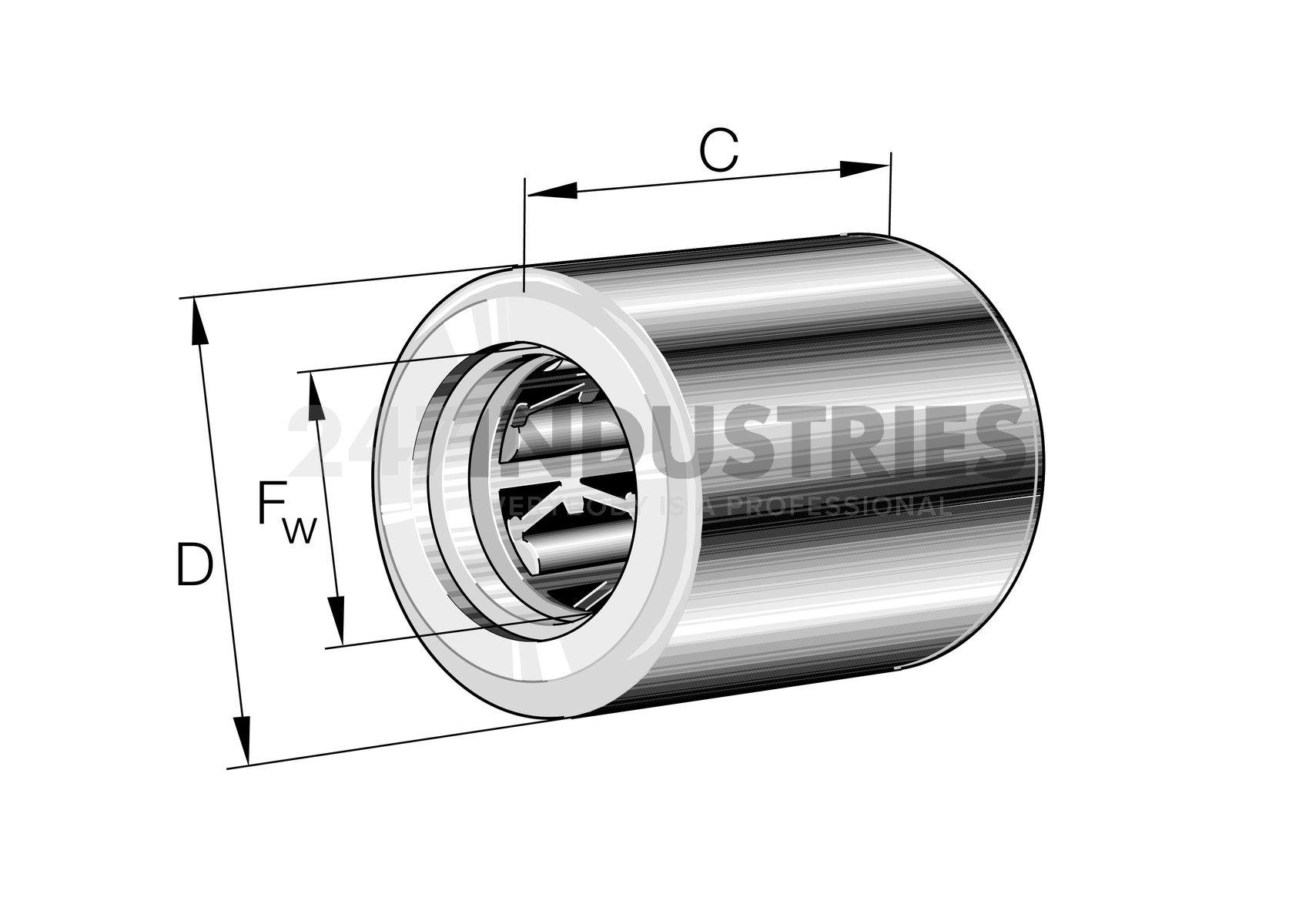

All dimensions

1. Inner (d) MM 8
2. Outer (D) MM 12
3. Width (B) MM 22
4. Inner (d) Inch 0.315
5. Outer (D) Inch 0.4724
6. Width (B) Inch 0.8661
7. Under roller diameter (F w) mm 8

Suffix description

1. KF Plastic Springs
2. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 11 pcs
2. Brand INA
3. Item number HFL0822-KF-L564 INA
4. Also known as 0005043600962
   HFL0822KF

5. EAN 4054362383277
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.004

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 3950
2. Radial Dynamic Load Rating Cr (N) 3650
3. Limiting speed for rotating shaft (n GW) 17000
4. Limiting speed for rotating outer ring (n GA) 12000
5. ECLASS number 23-05-21-90
6. ECLASS2 number 23-05-21-90
7. Medias description Drawn cup roller clutches HFL..-KF, with plain or rolling bearing arrangement, plastic springs
