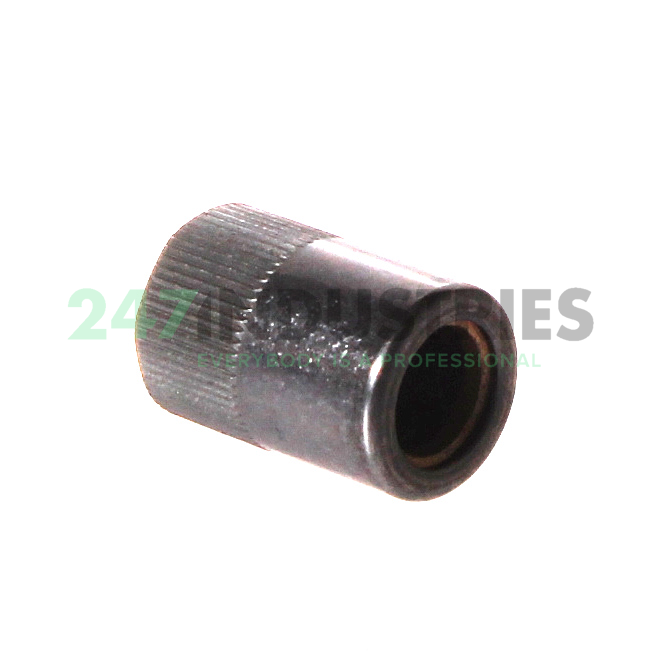

HFL0615-R-L564 INA

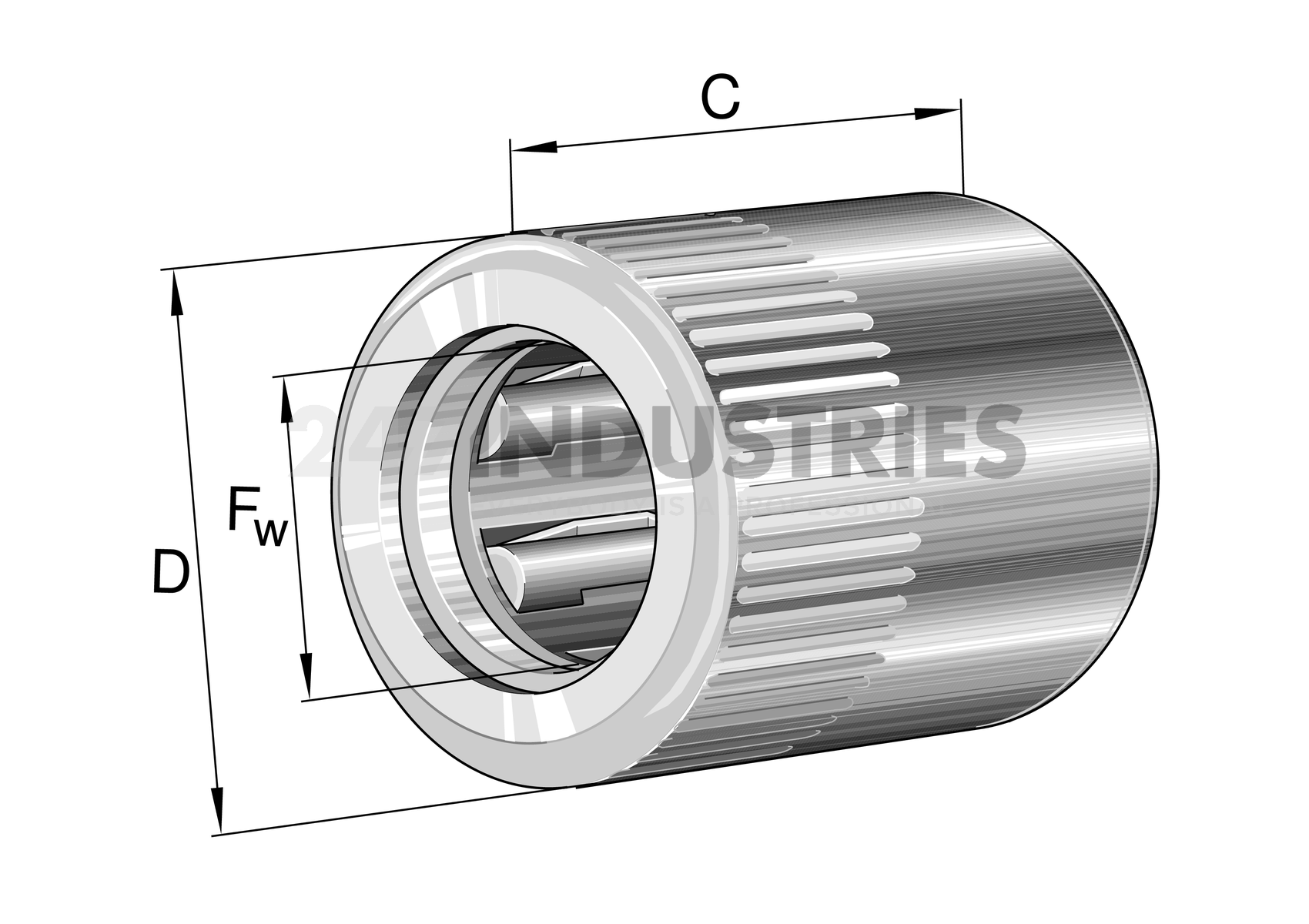

All dimensions

1. Inner (d) MM 6,00
2. Outer (D) MM 10,00
3. Width (B) MM 15,00
4. Inner (d) Inch 0.2362
5. Outer (D) Inch 0.3937
6. Width (B) Inch 0.5906
7. Under roller diameter (F w) mm 6,00

Suffix description

1. R Knurled Outer Ring
2. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 83 pcs
2. Brand INA
3. Item number HFL0615-R-L564 INA
4. Also known as 0001172260962
   HFL0615R

5. EAN 4012802844610
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.004

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Limiting speed for rotating shaft (n GW) "23000.0000"
2. Limiting speed for rotating outer ring (n GA) "13000.0000"
3. ECLASS number 23-05-21-90
4. ECLASS2 number 23-05-21-90
5. Medias description Drawn Cup roller clutches HFL, with plain or rolling bearing arrangement, steel springs, knurled outer ring
