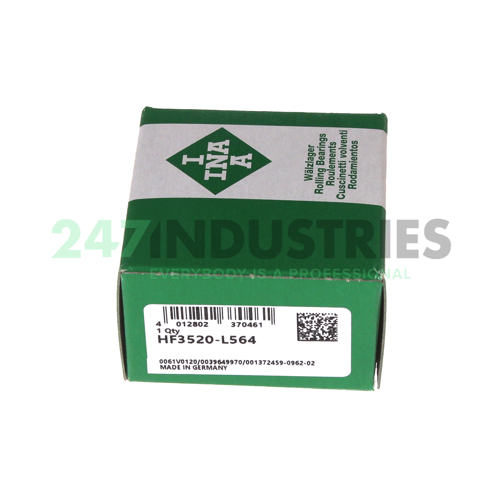

HF3520-L564 INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 42
3. Width (B) MM 20
4. Inner (d) Inch 1.378
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.7874
7. Under roller diameter (F w) mm 35

Suffix description

1. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 223 pcs
2. Brand INA
3. Item number HF3520-L564 INA
4. Also known as 0013724590962
   HF3520

5. EAN 4012802370461
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.04

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Permissible torque (M d per) 121
2. Limiting speed for rotating shaft (n GW) 3900
3. Limiting speed for rotating outer ring (n GA) 3900
4. ECLASS number 23-05-21-90
5. ECLASS2 number 23-05-21-90
6. Medias description Drawn cup roller clutches HF, with steel springs
