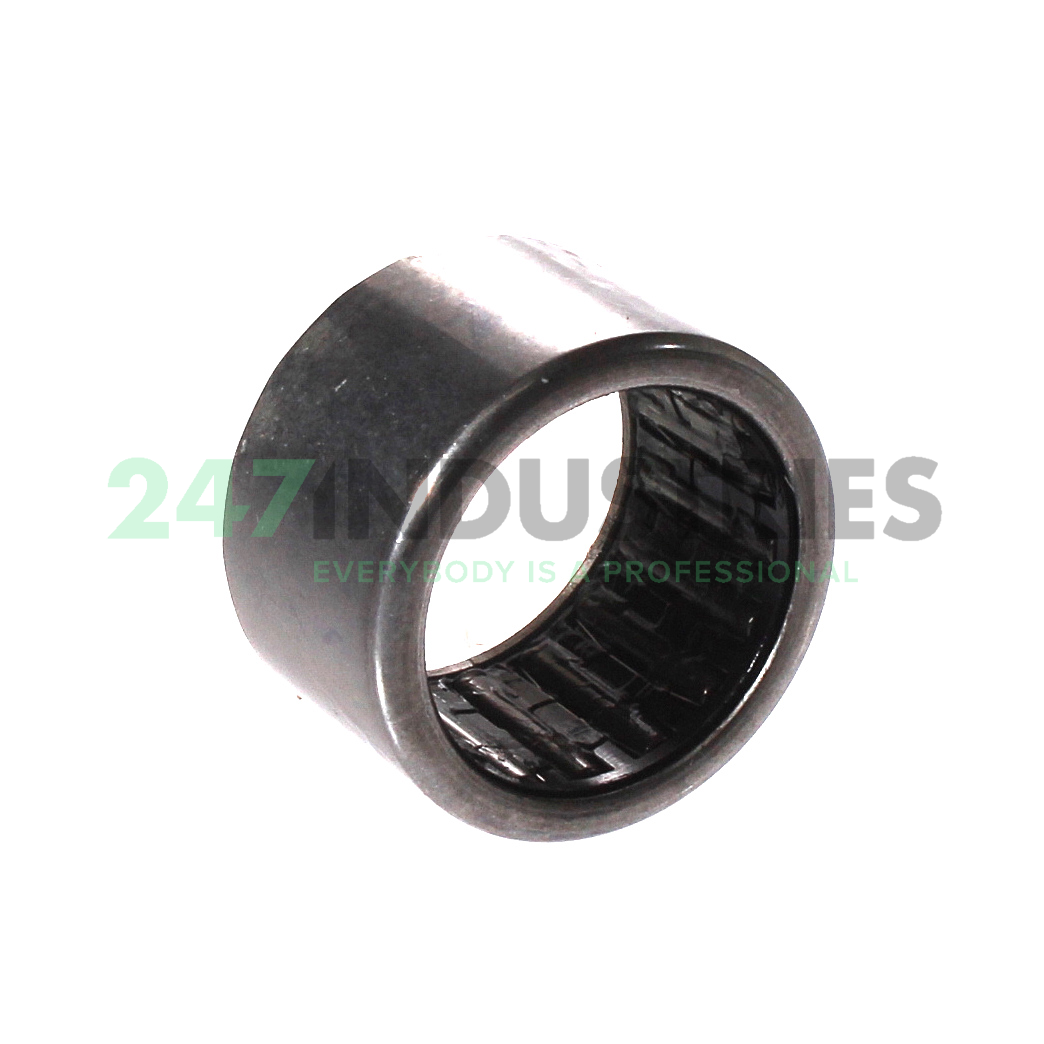

HF2016-L564 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 26
3. Width (B) MM 16
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.6299
7. Under roller diameter (F w) mm 20

Suffix description

1. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 100 pcs on Mon 9 Feb
2. Brand INA
3. Item number HF2016-L564 INA
4. Also known as 0013724160962
   HF2016

5. EAN 4047643159999
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.018

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Permissible torque (M d per) 28.5
2. Limiting speed for rotating shaft (n GW) 7000
3. Limiting speed for rotating outer ring (n GA) 6500
4. ECLASS number 23-05-21-90
5. ECLASS2 number 23-05-21-90
6. Medias description Drawn cup roller clutches HF, with steel springs
