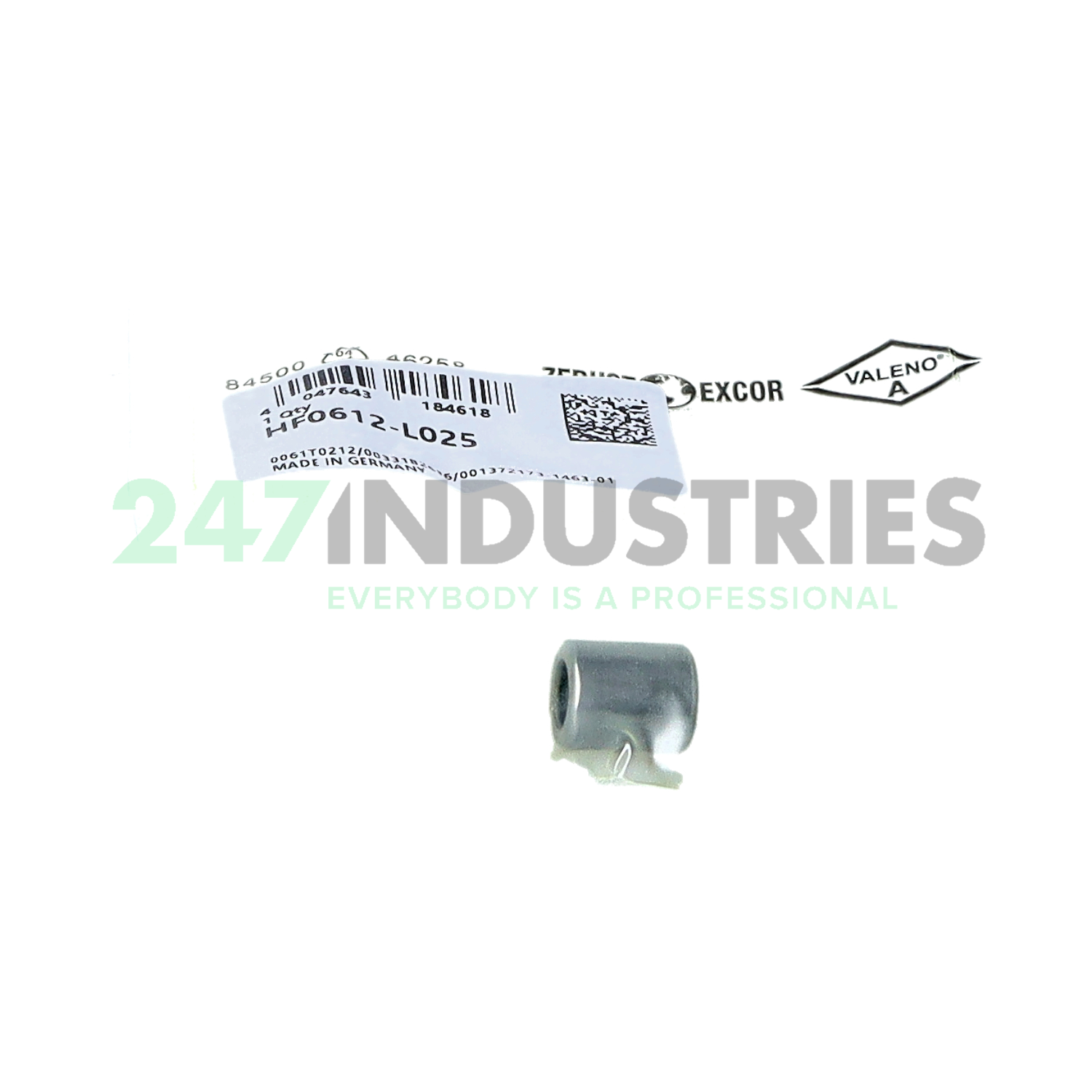

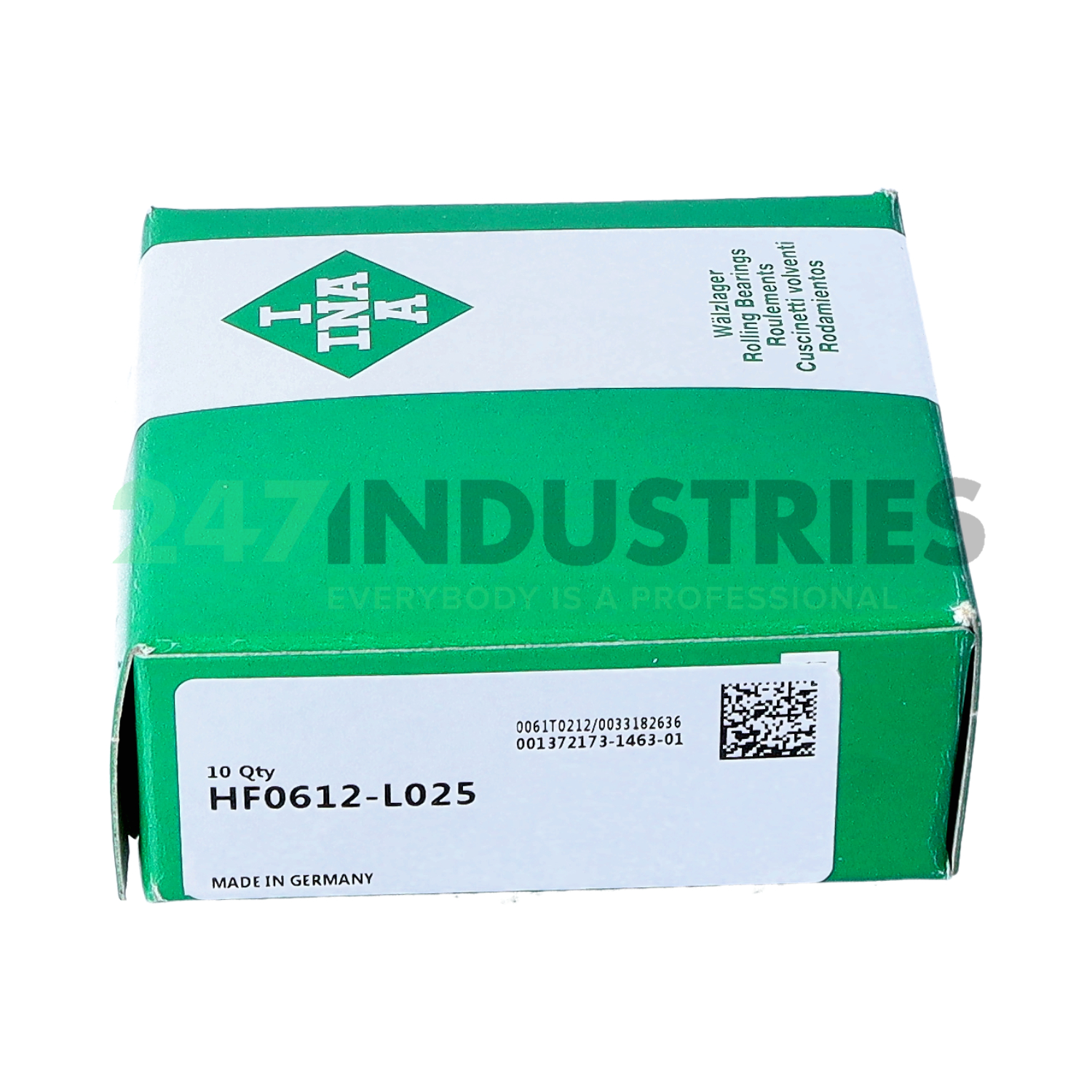

HF0612-L025 INA

All dimensions

1. Inner (d) MM 6
2. Outer (D) MM 10
3. Width (B) MM 12
4. Inner (d) Inch 0.2362
5. Outer (D) Inch 0.3937
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 6

Suffix description

1. L025 Exxon Mobil Unirex N2 Grease

Technical details

1. Availability 2,117 pcs
2. Brand INA
3. Item number HF0612-L025 INA
4. Also known as 0013721731463

5. EAN 4047643184618
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.003

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Permissible torque (M d per) 1.76
2. Limiting speed for rotating shaft (n GW) 23000
3. Limiting speed for rotating outer ring (n GA) 13000
4. ECLASS number 23-05-21-90
5. ECLASS2 number 23-05-21-90

Downloads and links

1. Link to manufacturer Link to manufacturer
