HF0612-KF-R-A-L564 INA

All dimensions

1. Inner (d) MM 6
2. Outer (D) MM 10
3. Width (B) MM 12
4. Inner (d) Inch 0.2362
5. Outer (D) Inch 0.3937
6. Width (B) Inch 0.4724
7. Under roller diameter (F w) mm 6

Suffix description

1. KF Plastic Springs
2. R Partially Knurled Outer Ring For Assembly In Plastic Housing
3. A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
4. L564 Centoplex 1 Dl/2 Dl Are Low-Temperature Greases Based On An Oxidation-Resistant Mineral Oil And A Lithium-Calcium Soap. Due To The Good Resistance To Working Under Normal Temperatures And Loads These Greases Can Be Used For Long-Term Lubrication

Technical details

1. Availability 1,542 pcs
2. Brand INA
3. Item number HF0612-KF-R-A-L564 INA
4. Also known as 0567673820962
   HF0612KFRA
   HF0612-KF-R-A

5. EAN 4054368258692
6. Category Needle Roller and Cage Assembly

Weight and Dimensions

1. Weight (kg) 0.003

Product Properties

1. Seal No Seal

Data from Schaeffler (medias)

1. Permissible torque (M d per) 0.6
2. Limiting speed for rotating shaft (n GW) 23000
3. Limiting speed for rotating outer ring (n GA) 13000
4. ECLASS number 23-05-21-90
5. ECLASS2 number 23-05-21-90

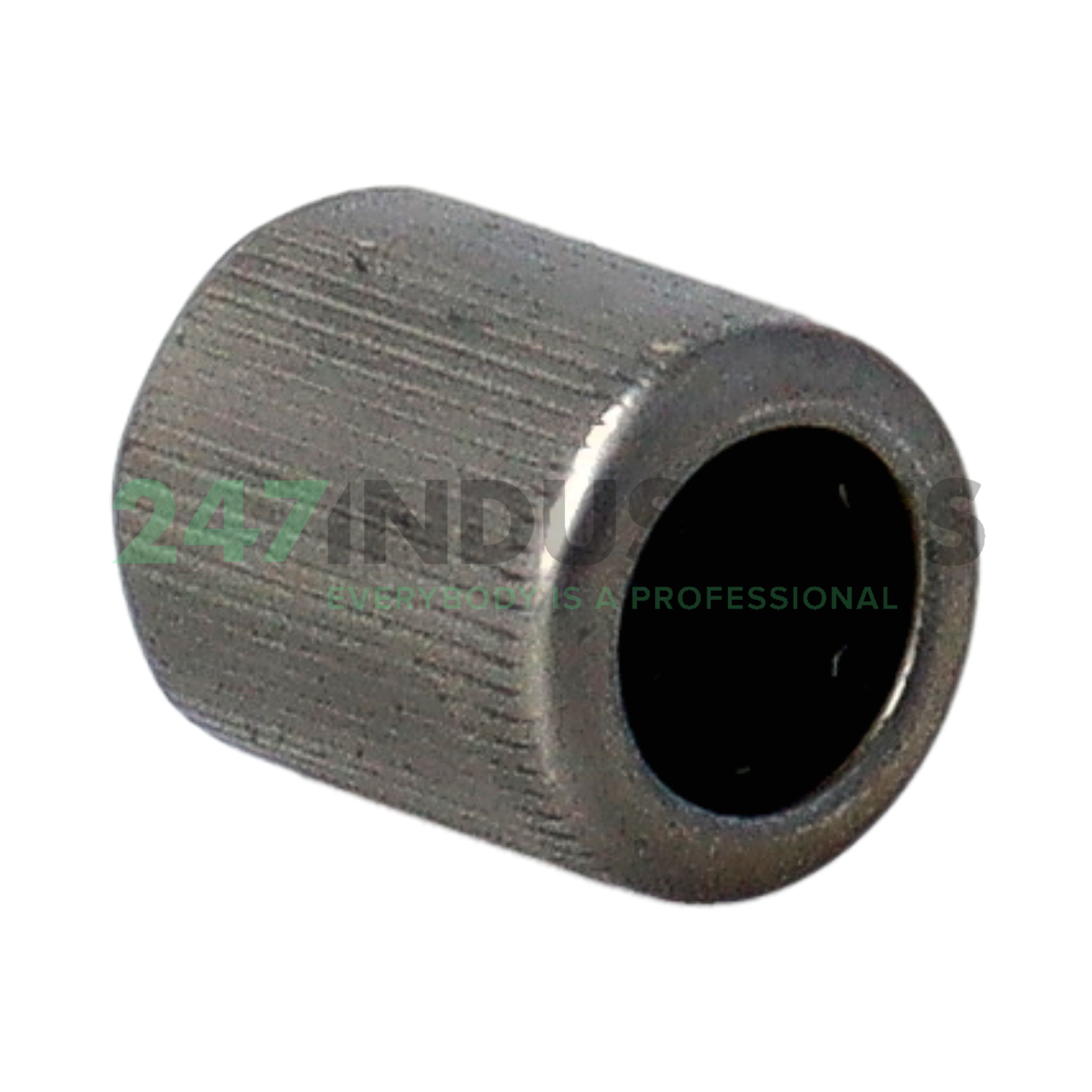

6. Medias description Drawn cup roller clutches HF..-KF-R, with plastic springs and knurled outer ring
