HCS71914-C-T-P4S-UL FAG

HCS hybrid spindle bearing with small ceramic balls with seals

Stock
2 pcs in stock and ready for shipment
Brand FAG
Article number HCS71914-C-T-P4S-UL FAG
Product description

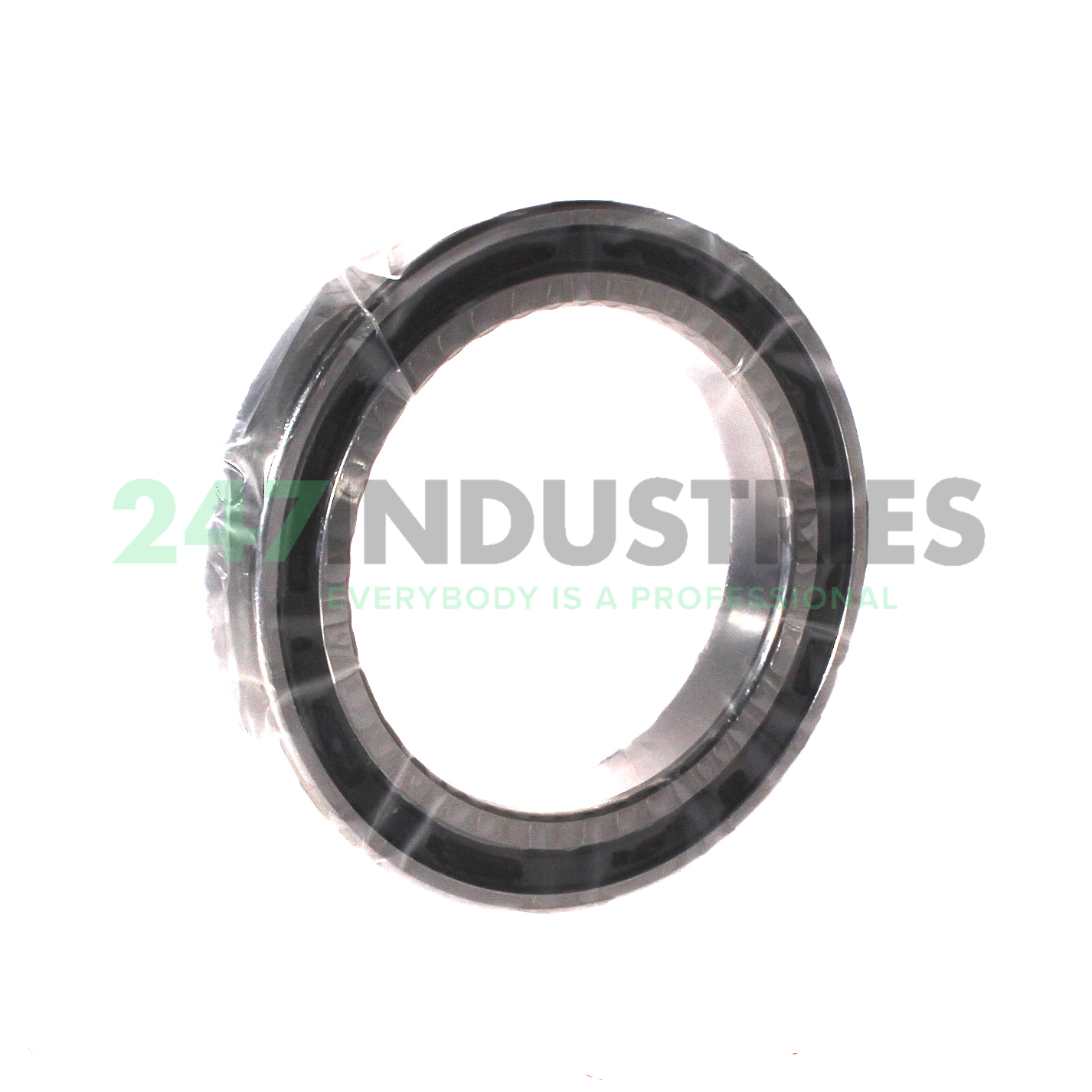

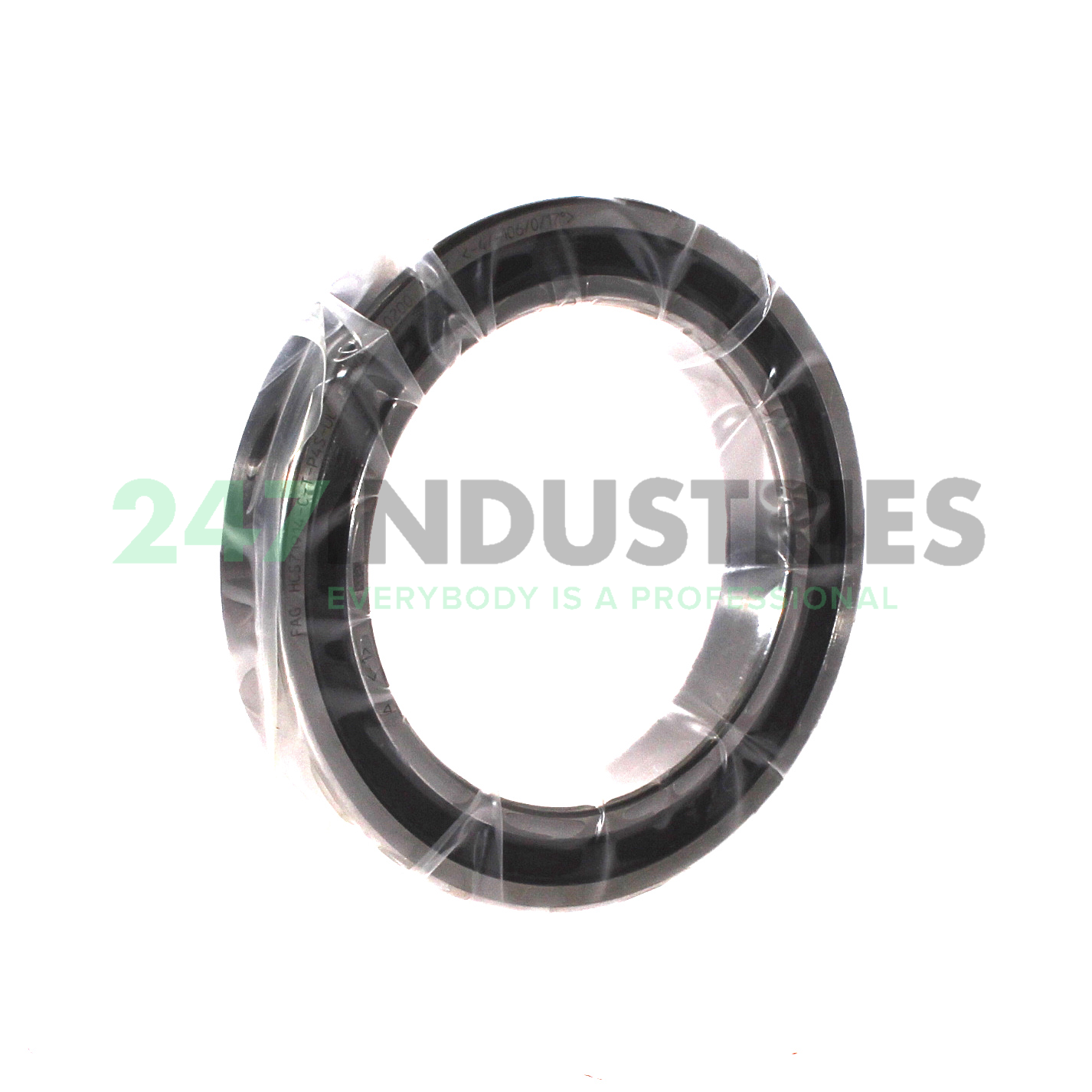

The HCS71914-C-T-P4S-UL FAG is a high-speed design hybrid spindle bearing. This bearing type has seals on both sides, and small ceramic balls. Hybrid spindle bearings can reach very high speeds with very little heat generation and wear. Even at very high speeds, a high degree of rigidity is maintained. This makes the HCS71914-C-T-P4S-UL FAG particularly suitable for use in high-speed- or grinding spindles.

FAG spindle bearings are single-row, angular contact ball bearings that cannot be dismantled. They have solid inner and outer rings as well as ball-and-cage assemblies with solid window cages. Due to their extremely tight tolerances, they are particularly suitable for applications that require high guidance accuracy and suitability for high speeds. Spindle bearings are commonly used for main spindles in machine tools.

In addition, FAG spindle bearings are designed as universal bearings. Universal bearings with the same deviation in inner ring bore and outer diameter can be combined for use in different arrangements. For example, when the load capacity of a single bearing is insufficient, two matching bearings can be used in a tandem arrangement to support axial loads in one direction only. In order to support axial loads in both directions as well as moments, O or X arrangements are good solutions.

Read more Show less
Help with this product

Similar to: HCS71914-C-T-P4S-UL FAG

No similar products found

Product specifications

Suffix description

  1. C 15° Or 17° Contact Angle
  2. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
  3. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
  4. UL Single Bearing, Universal, Light Preload

Technical details

  1. Availability 2 pcs
  2. Brand FAG
  3. Item number HCS71914-C-T-P4S-UL FAG
  4. Also known as 0384393360000
    2MMVC9314HXVVSUL
  5. EAN 4012801483803
  6. Category Angular Contact Ball Bearing Single Row

Product Properties

  1. Lubrication Standard Lubrication
