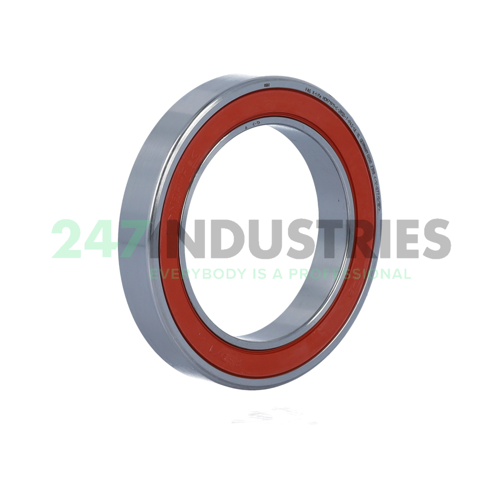

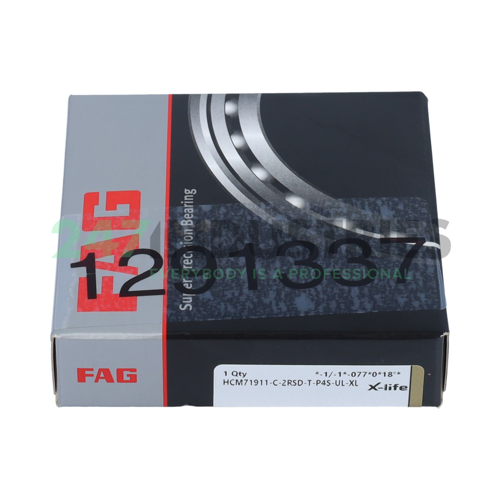

HCM71911-C-2RSD-T-P4S-UL-XL FAG

All dimensions

1. Width (b) mm 13

Suffix description

1. C 15° Or 17° Contact Angle
2. 2RSD Lip Seals On Both Sides, Non-Contact
3. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
4. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
5. UL Single Bearing, Universal, Light Preload
6. XL X-Life

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number HCM71911-C-2RSD-T-P4S-UL-XL FAG
4. Also known as 0928358480000

5. EAN 4054369883619
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Cage Type TB - Hard Fiber Cage
3. Precision P4S Precision (Higher than P4)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 9500
2. Limiting speed for grease lubrication (n G Grease) 30400

Downloads and links

1. Link to manufacturer Link to manufacturer
