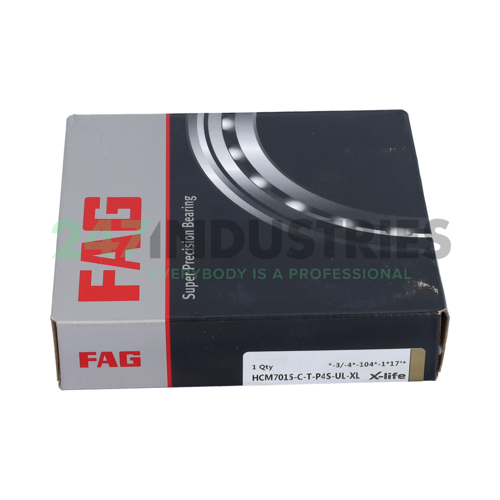

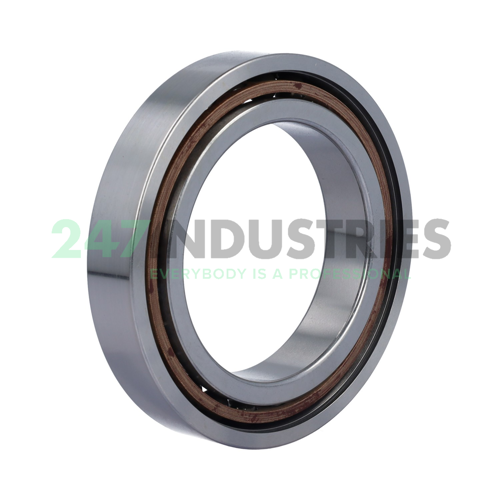

HCM7015-C-T-P4S-UL-XL FAG

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 115
3. Width (B) MM 20
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.5276
6. Width (B) Inch 0.7874
7. Width (b) mm 20

Suffix description

1. C 15° Or 17° Contact Angle
2. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
3. P4S Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
4. UL Single Bearing, Universal, Light Preload
5. XL X-Life

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number HCM7015-C-T-P4S-UL-XL FAG
4. Also known as 0930176420000

5. EAN 4054371038960
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.62

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4S Precision (Higher than P4)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
7. Lubrication Standard Lubrication

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 16600
2. Limiting speed for grease lubrication (n G Grease) 21600
3. Limiting speed for oil lubrication (n G Oil) 31600
