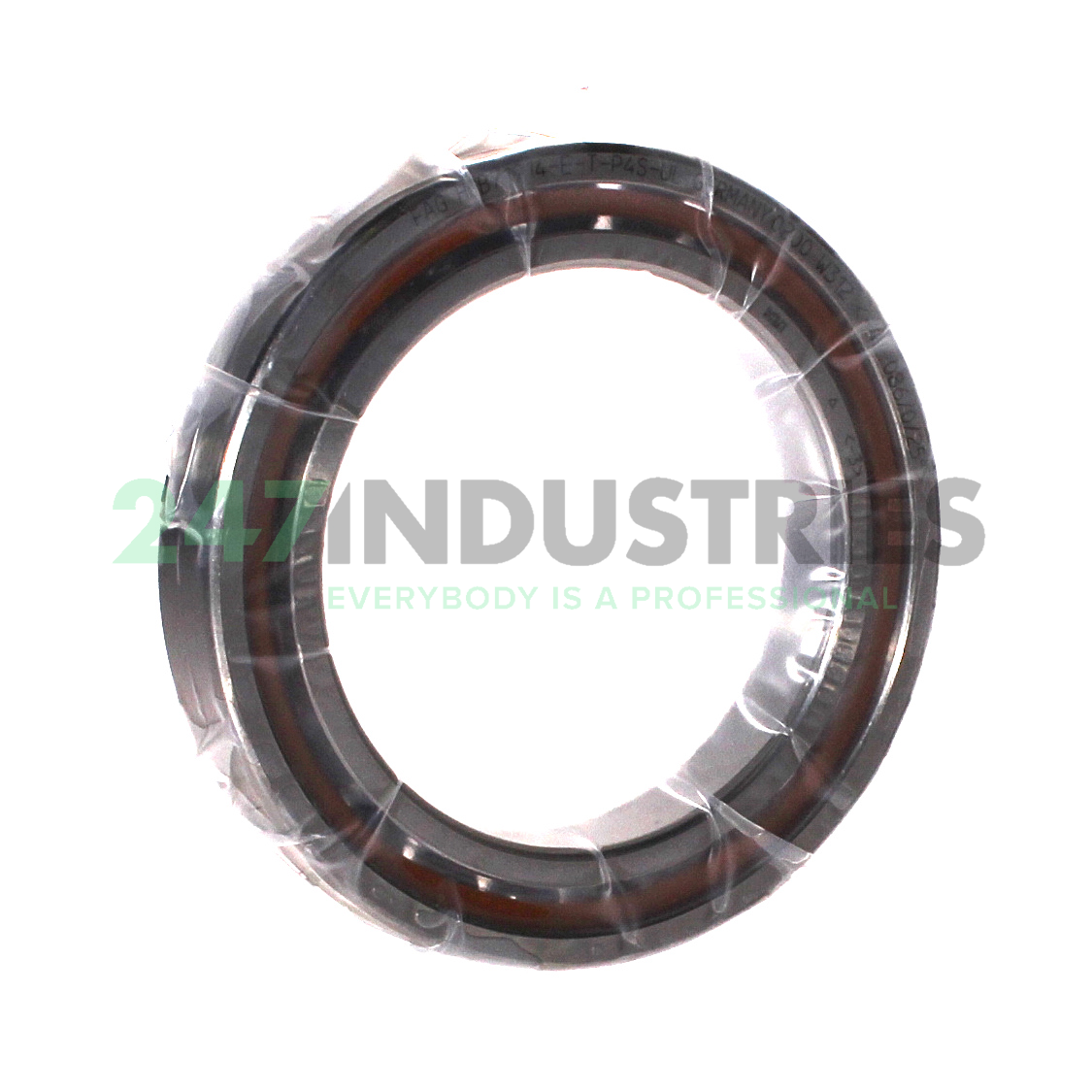

HCB71914E.T.P4S.UL Deutsche Kugellager Fabrik

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 100,00
3. Width (B) MM 16,00
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 3.9370
6. Width (B) Inch 0.6299

Suffix description

1. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
2. P4S Boundry Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9
3. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 2 pcs
2. Brand Deutsche Kugellager Fabrik
3. Item number HCB71914E.T.P4S.UL Deutsche Kugellager Fabrik
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.28

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4S Precision (Higher than P4)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
7. Lubrication Standard Lubrication
