HCB7014-E-T-P4S-UL FAG

618,00 ex VAT
€ 747,78 incl. VAT
€ 747,78 incl. VAT
618,00 ex VAT
Guaranteed same day shipment on orders placed before 17.00h (CEST)
This product is available from stock
Worldwide shipping from The Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

HCB7014-E-T-P4S-UL FAG

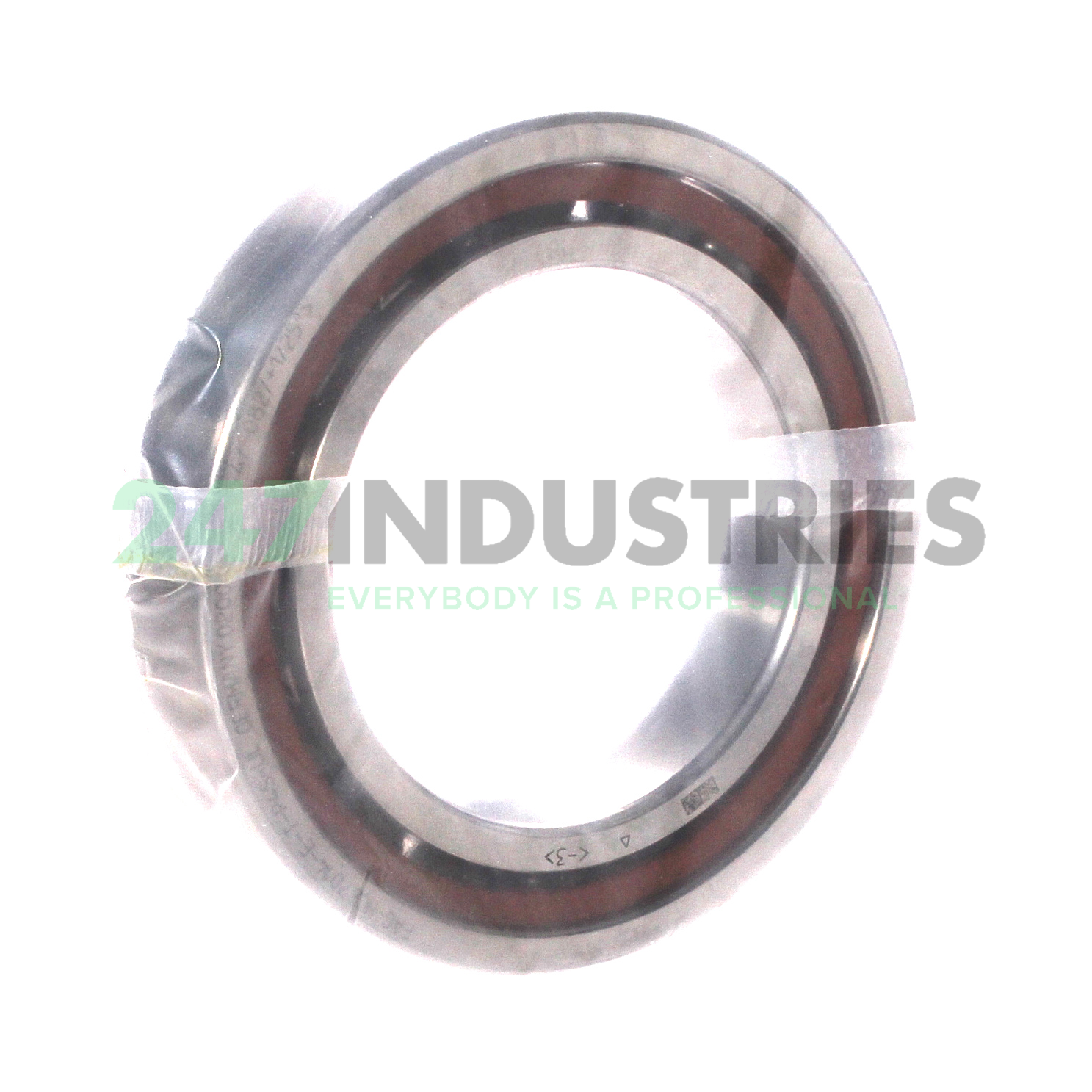

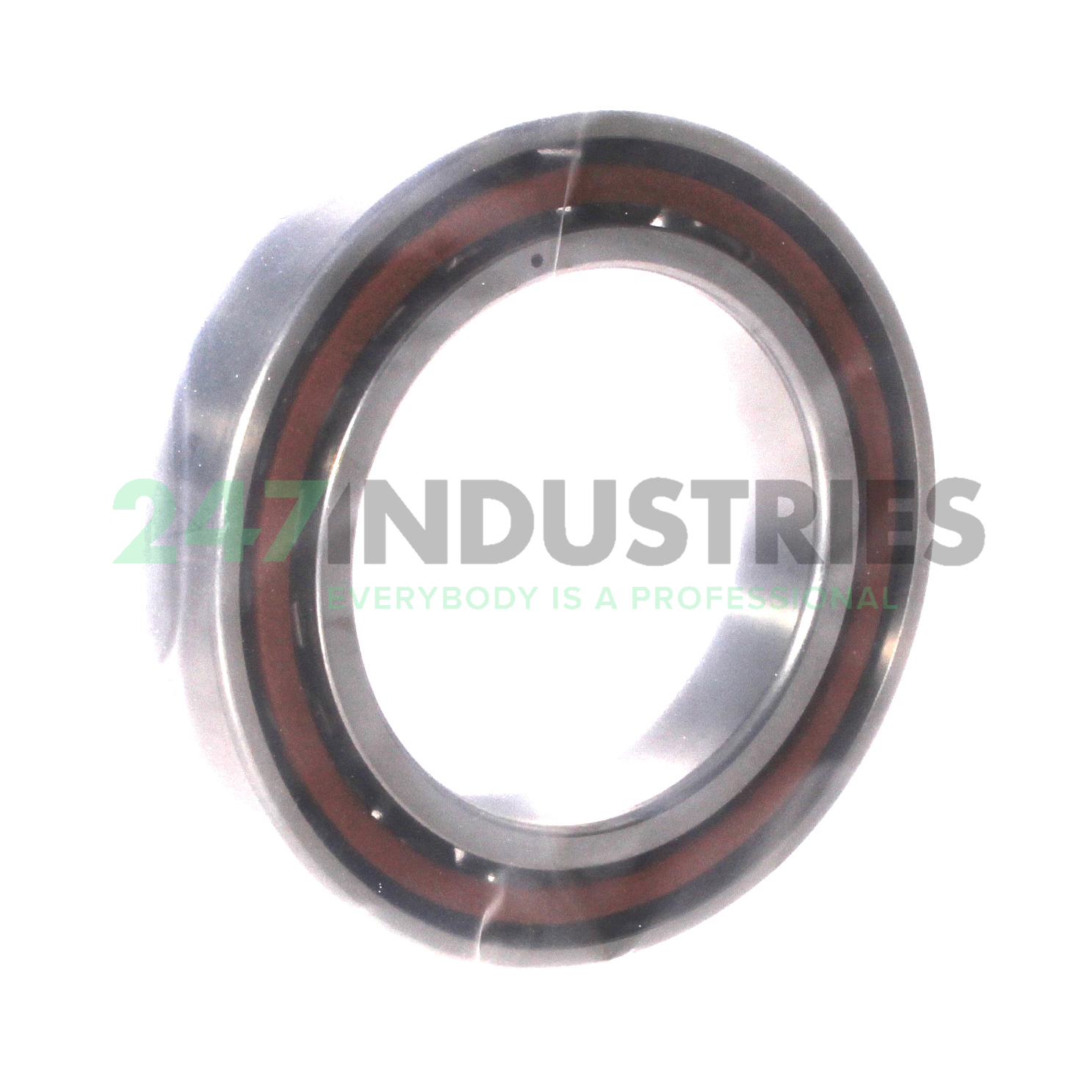

The HCB7014-E-T-P4S-UL FAG is a single row angular contact ball bearing with a hard fiber cage and no seal.

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number HCB7014-E-T-P4S-UL FAG
Inside diameter 70mm
Outside diameter 110mm
Width 20mm
Product description
Spindle bearings HCB70..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, restricted tolerances
Read more Show less
Help with this product

Downloads

Similar to: HCB7014-E-T-P4S-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 70
  2. Outer (D) MM 110
  3. Width (B) MM 20

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number HCB7014-E-T-P4S-UL FAG
  4. Technical details (E-T-P4S-UL) E=(AC-SKF)=25° Contact Angle. T=(TB-Cage Segment)=Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C. P4S=(4S-Precision Segment)/(P4A-SKF)=(MMV-FAF)=Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9. UL=(GA-SKF)=Single Bearing, Universal, Light Preload.
  5. Category Angular Contact Ball Bearing Single Row
  6. Description from Medias Spindle bearings HCB70..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, restricted tolerances
  7. Weight (kg) 0.50
  8. Manufacturer Part Number (MPN) HCB7014-E-T-P4S-UL
  9. Seal No Seal
  10. Cage Type TB - Hard Fiber Cage
  11. Precision P4S Precision (Higher than P4)
  12. Contact Angle 25 Degrees
  13. Pairing G - Universal Pairing
  14. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  15. Lubrication Standard Lubrication
