HCB7013-C-T-P4S-UL FAG

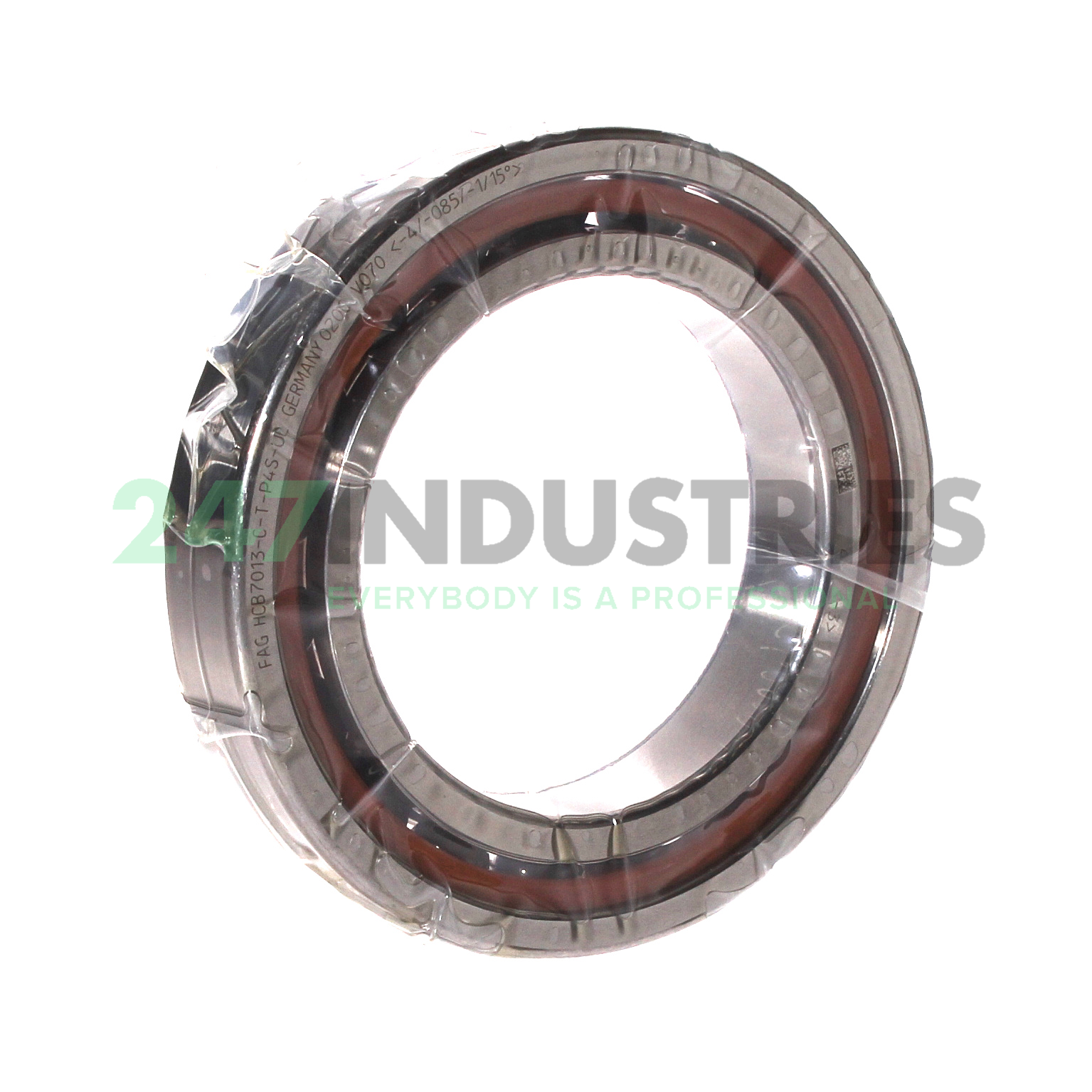

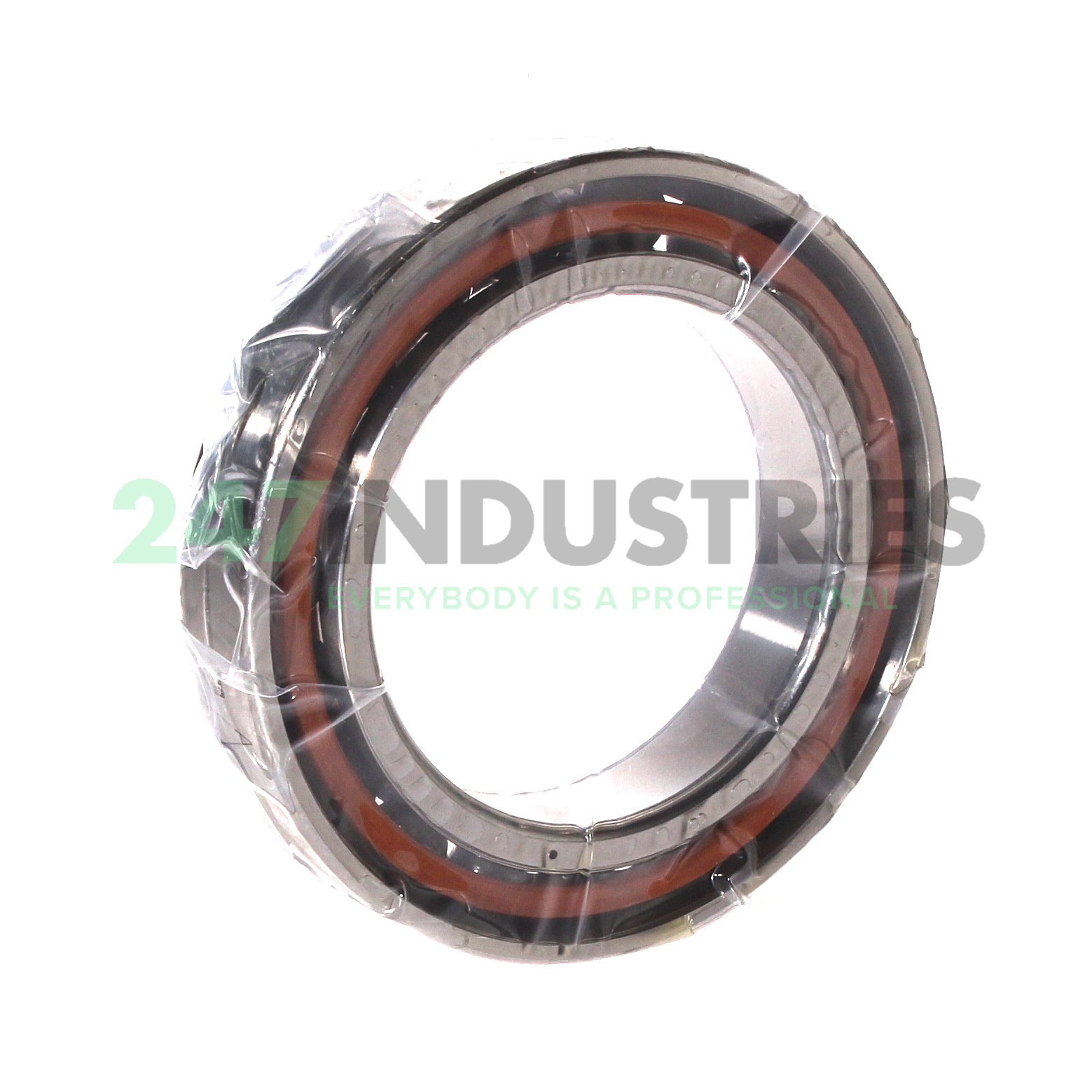

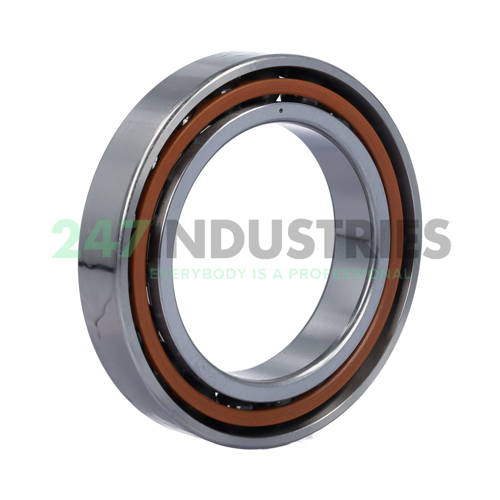

The HCB7013-C-T-P4S-UL FAG is a single row angular contact ball bearing with a hard fiber cage and no seal.

Stock
1 pc in stock and ready for shipment
Brand FAG
Article number HCB7013-C-T-P4S-UL FAG
Inside diameter 65,00mm
Outside diameter 100,00mm
Width 18,00mm
Product description
Spindle bearings HCB70..-C, adjusted, in pairs or sets, contact angle α = 15°, with ceramic balls, restricted tolerances
Read more Show less
Help with this product

Downloads

Similar to: HCB7013-C-T-P4S-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 65,00
  2. Outer (D) MM 100,00
  3. Width (B) MM 18,00

Technical details

  1. Availability 1 pc
  2. Brand FAG
  3. Item number HCB7013-C-T-P4S-UL FAG
  4. Technical details (C-T-P4S-UL) C=(C-SKF)=15° Contact Angle. T=(TB-Cage Segment)=Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C. P4S=(4S-Precision Segment)/(P4A-SKF)=(MMV-FAF)=Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9. UL=(GA-SKF)=Single Bearing, Universal, Light Preload.
  5. Category Angular Contact Ball Bearing Single Row
  6. Description from Medias Spindle bearings HCB70..-C, adjusted, in pairs or sets, contact angle α = 15°, with ceramic balls, restricted tolerances
  7. Weight (kg) 0.36
  8. Manufacturer Part Number (MPN) HCB7013-C-T-P4S-UL
  9. Seal No Seal
  10. Cage Type TB - Hard Fiber Cage
  11. Precision P4S Precision (Higher than P4)
  12. Contact Angle 15 Degrees
  13. Pairing G - Universal Pairing
  14. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  15. Lubrication Standard Lubrication
