HC71907-E-T-P4S-UL FAG

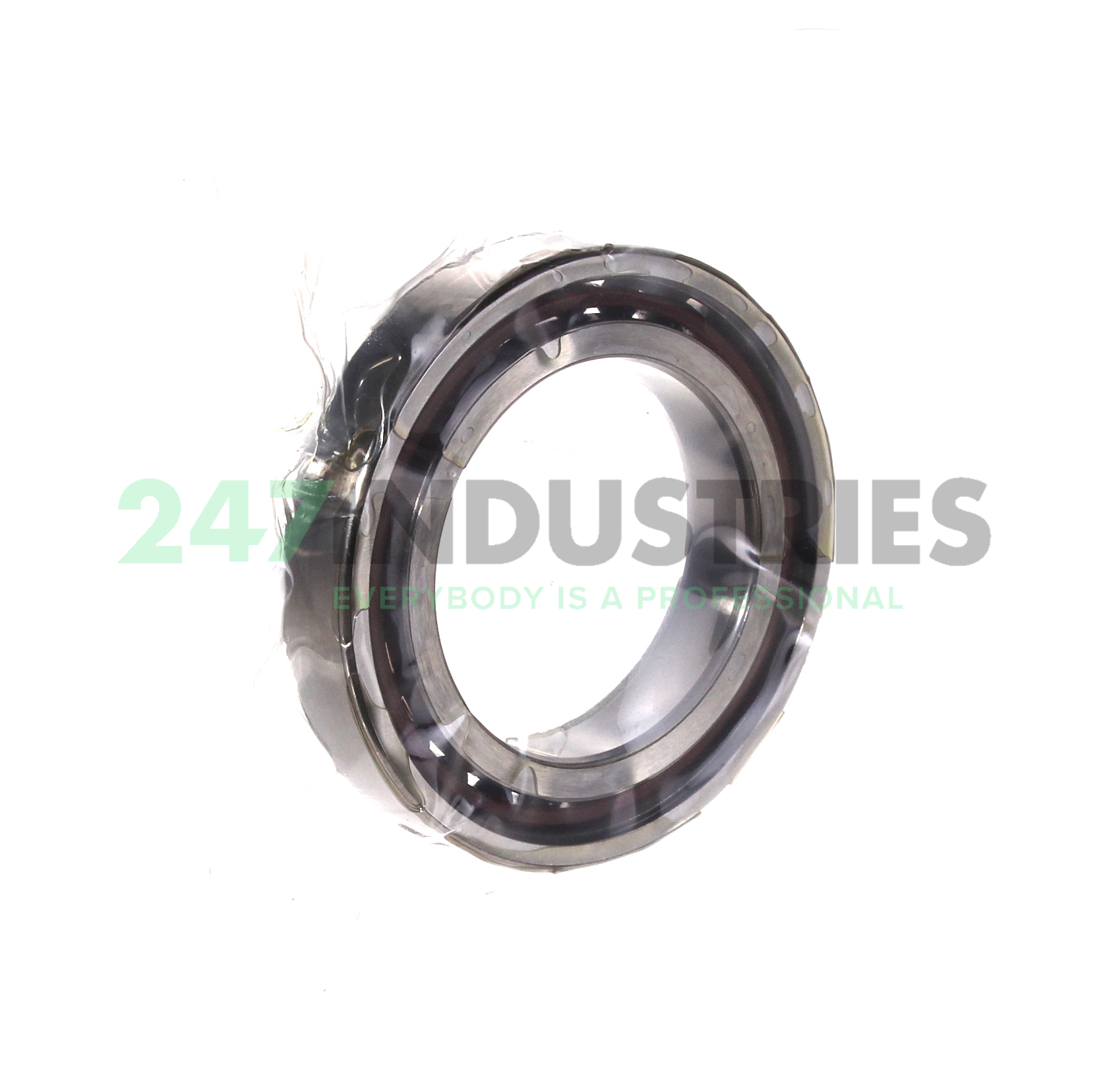

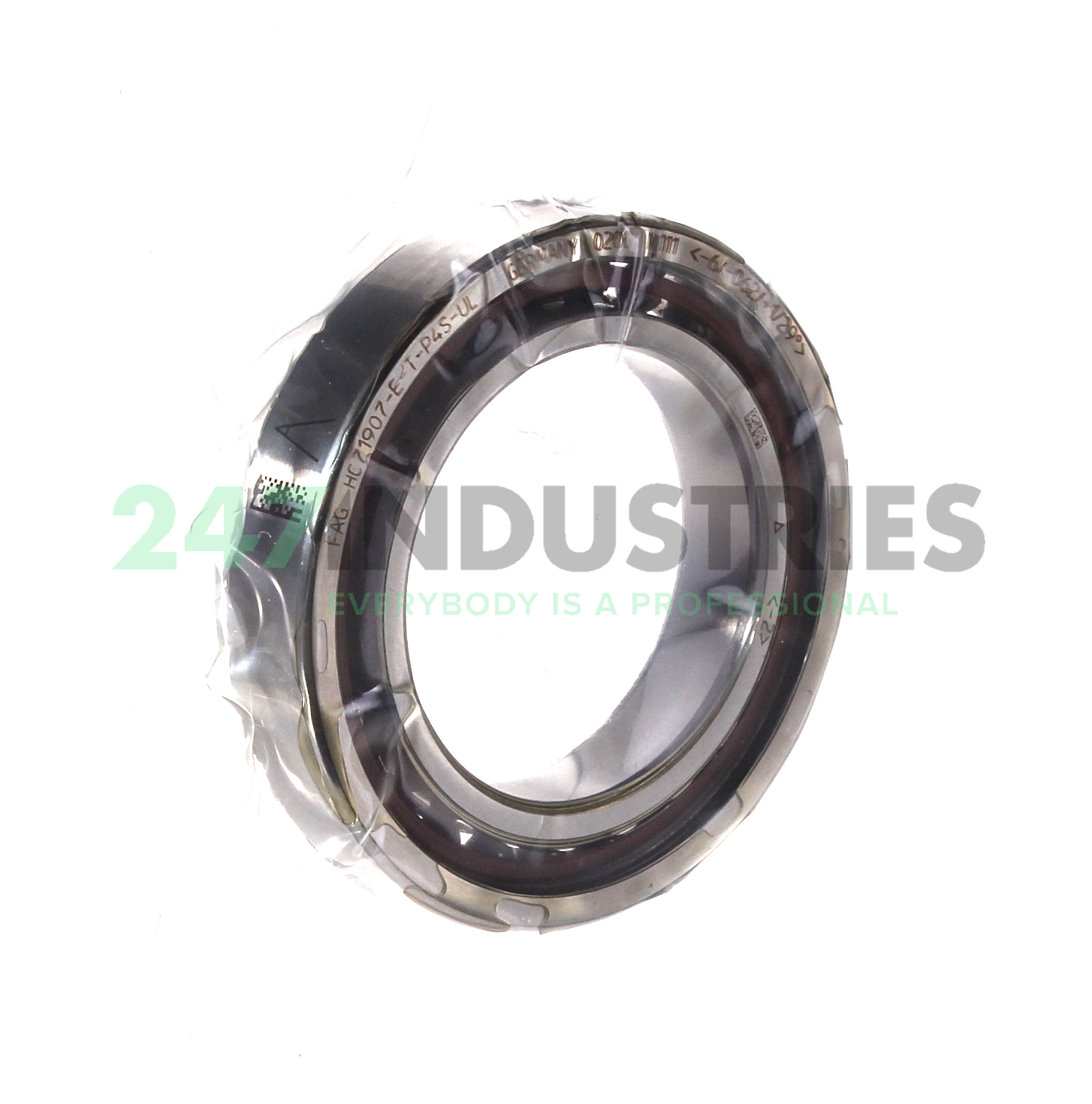

The HC71907-E-T-P4S-UL FAG is a single row angular contact ball bearing with a hard fiber cage and no seal.

Stock
3 pcs in stock and ready for shipment
Brand FAG
Article number HC71907-E-T-P4S-UL FAG
Inside diameter 35,00mm
Outside diameter 55,00mm
Width 10,00mm
Product description
Spindle bearings HC719..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, restricted tolerances
Read more Show less
Help with this product

Downloads

Similar to: HC71907-E-T-P4S-UL FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 35,00
  2. Outer (D) MM 55,00
  3. Width (B) MM 10,00

Technical details

  1. Availability 3 pcs
  2. Brand FAG
  3. Item number HC71907-E-T-P4S-UL FAG
  4. Technical details (E-T-P4S-UL) E=(AC-SKF)=25° Contact Angle. T=(TB-Cage Segment)=Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C. P4S=(4S-Precision Segment)/(P4A-SKF)=(MMV-FAF)=Boundary Dimensions ISO 4, Abec-7, Running Accuracy ISO 2, Abec-9. UL=(GA-SKF)=Single Bearing, Universal, Light Preload.
  5. Also known as 4012801748032
  6. Category Angular Contact Ball Bearing Single Row
  7. Description from Medias Spindle bearings HC719..-E, adjusted, in pairs or sets, contact angle α = 25°, with ceramic balls, restricted tolerances
  8. Weight (kg) 0.08
  9. Manufacturer Part Number (MPN) HC71907-E-T-P4S-UL
  10. Seal No Seal
  11. Cage Type TB - Hard Fiber Cage
  12. Precision P4S Precision (Higher than P4)
  13. Contact Angle 25 Degrees
  14. Pairing G - Universal Pairing
  15. Axial Internal Clearance / Preload UL - Universal design for fitting in pairs, bearing pair has slight preload in O and X arrangements
  16. Lubrication Standard Lubrication
