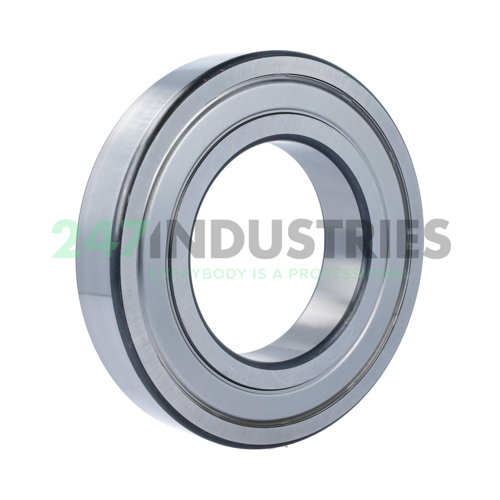

HC6220-2Z-L038-C3 FAG

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 180
3. Width (B) MM 34
4. Inner (d) Inch 3.937
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.3386

Suffix description

1. 2Z Non-Contact Sealing Shield On Both Sides (Sheet Metal Gap Seal)
2. L038 Arcanol Grease Medium Temperature -25ºC/+130ºC
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number HC6220-2Z-L038-C3 FAG
4. Also known as 0928092270030

5. EAN 4054371111212
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.844

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
