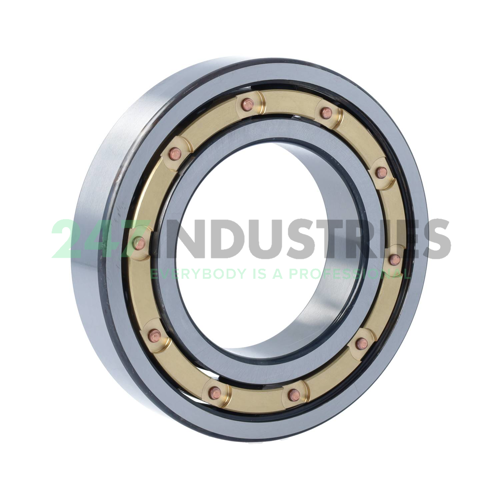

HC6214-M-C4 FAG

All dimensions

1. Inner (d) MM 70,00
2. Outer (D) MM 125,00
3. Width (B) MM 24,00
4. Width (b) mm 24,00

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number HC6214-M-C4 FAG
4. Also known as 0392764300040

5. EAN 4012802266320
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.232

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 42000
2. Radial Dynamic Load Rating Cr (N) 66000
3. Basic static load rating, radial (C 0r) "42000.0000"
4. Limiting speed (n G) "12800.0000"
5. Reference speed (n ϑr) "6800.0000"
6. ECLASS number 23-05-08-01
7. ECLASS2 number 23-05-08-01
8. Medias description Deep groove ball bearing HC62..-M, single row, cf. DIN 625-1
