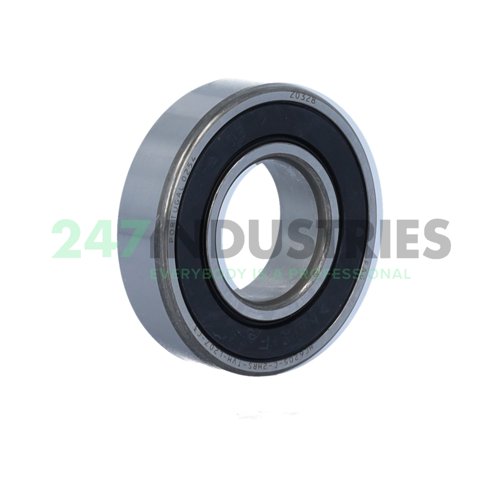

HC6205-C-2HRS-TVH-L207-C3 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 15

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2HRS Lip Seals On Both Sides Made From Nitrile Butadiene Rubber, These Designs Are Lubricated For Life Using A High Quality Grease And Are Suitable For Moderate Speeds. The Frictional Torque And Heat Generation Are Lower Than With The Previous RSR Seal
3. TVH Cage Made From Glass Fibre Reinforced Polyamide, Rolling Element Riding
4. L207 Grease Filling With Arcanol L207 (High Temperature Grease)
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs on Wed 24 Dec
2. Brand FAG
3. Item number HC6205-C-2HRS-TVH-L207-C3 FAG
4. Also known as 0953502410030

5. EAN 4054372734663
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.1303

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RH - High Speed Low Friction Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
