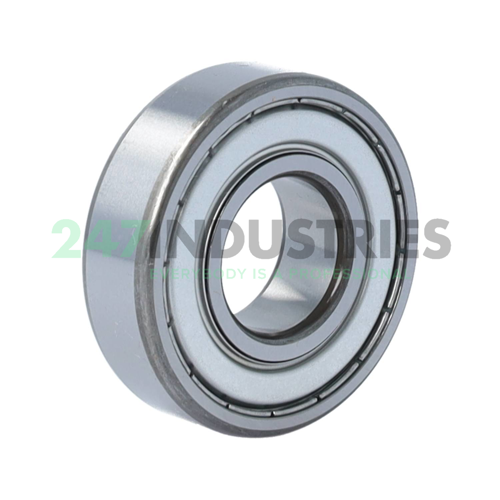

HC6204-C-2Z-L207-C3 FAG

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 14
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides
3. L207 Grease Filling With Arcanol L207 (High Temperature Grease)
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 4 pcs on Wed 24 Jun
2. Brand FAG
3. Item number HC6204-C-2Z-L207-C3 FAG
4. Also known as 0974650970030

5. EAN 4064327738752
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.095

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication 2 - High Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
