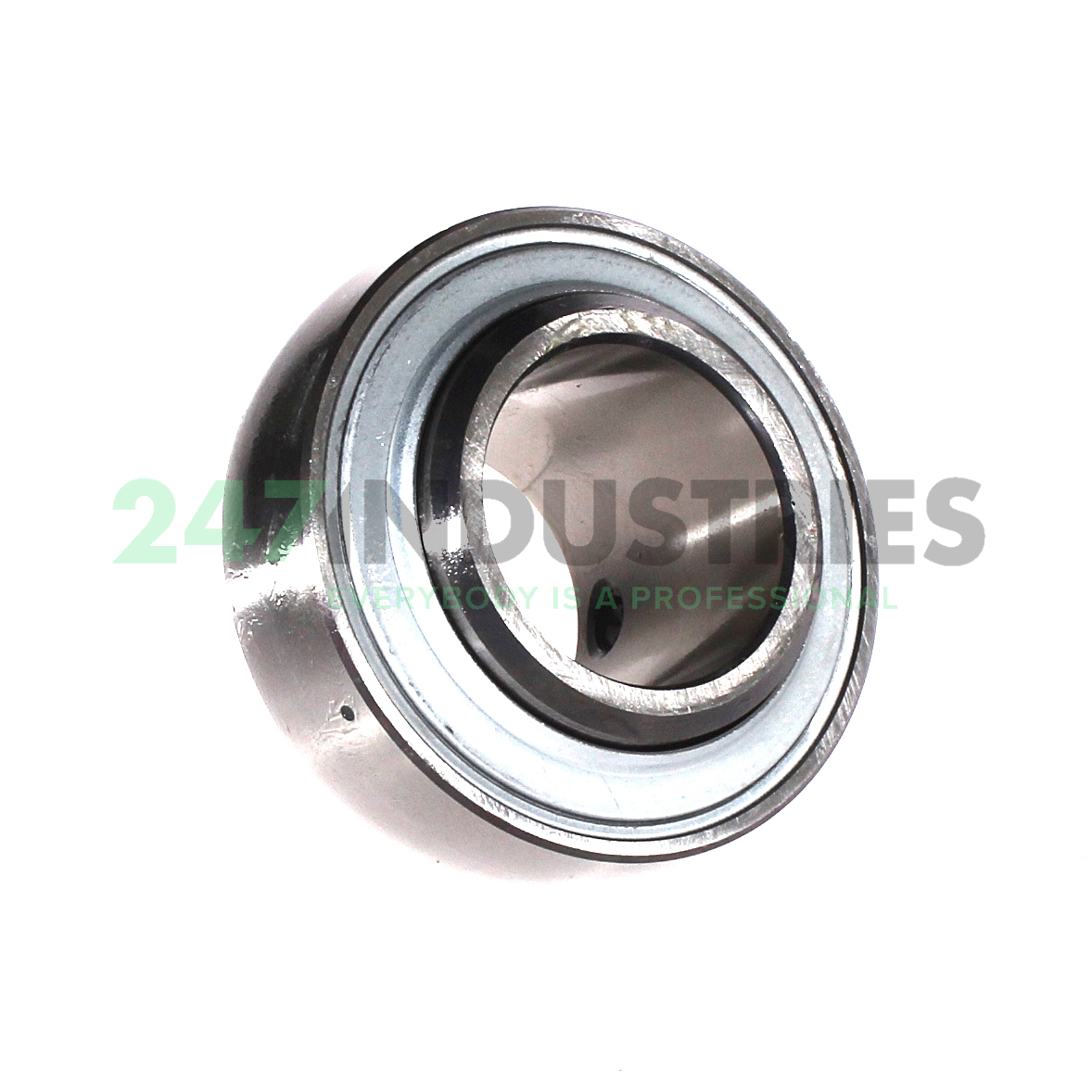

GYE40-XL-KRR-B INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 49,2
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.937
7. Outside diameter (D SP) mm 80
8. Width (b) mm 49,2

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring

Technical details

1. Availability 50 pcs on Tue 23 Dec
2. Brand INA
3. Item number GYE40-XL-KRR-B INA
4. Also known as 0008139150000
   GYE40-KRR-B
   YAR208-2F

5. EAN 4012802782622
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.55

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19800
2. Radial Dynamic Load Rating Cr (N) 34500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GYE..-KRR-B, spherical outer ring, location by grub screws, R seals on both sides
