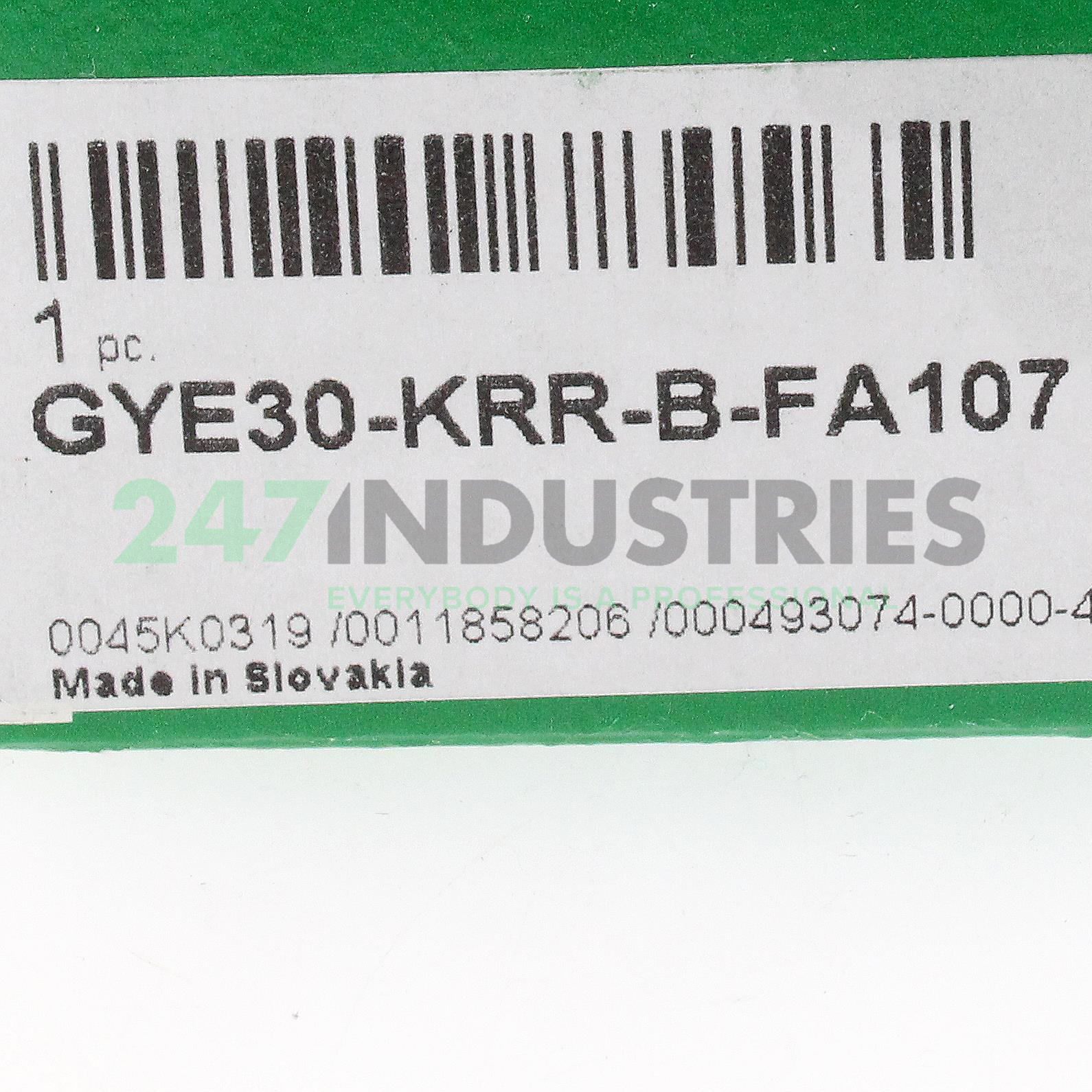

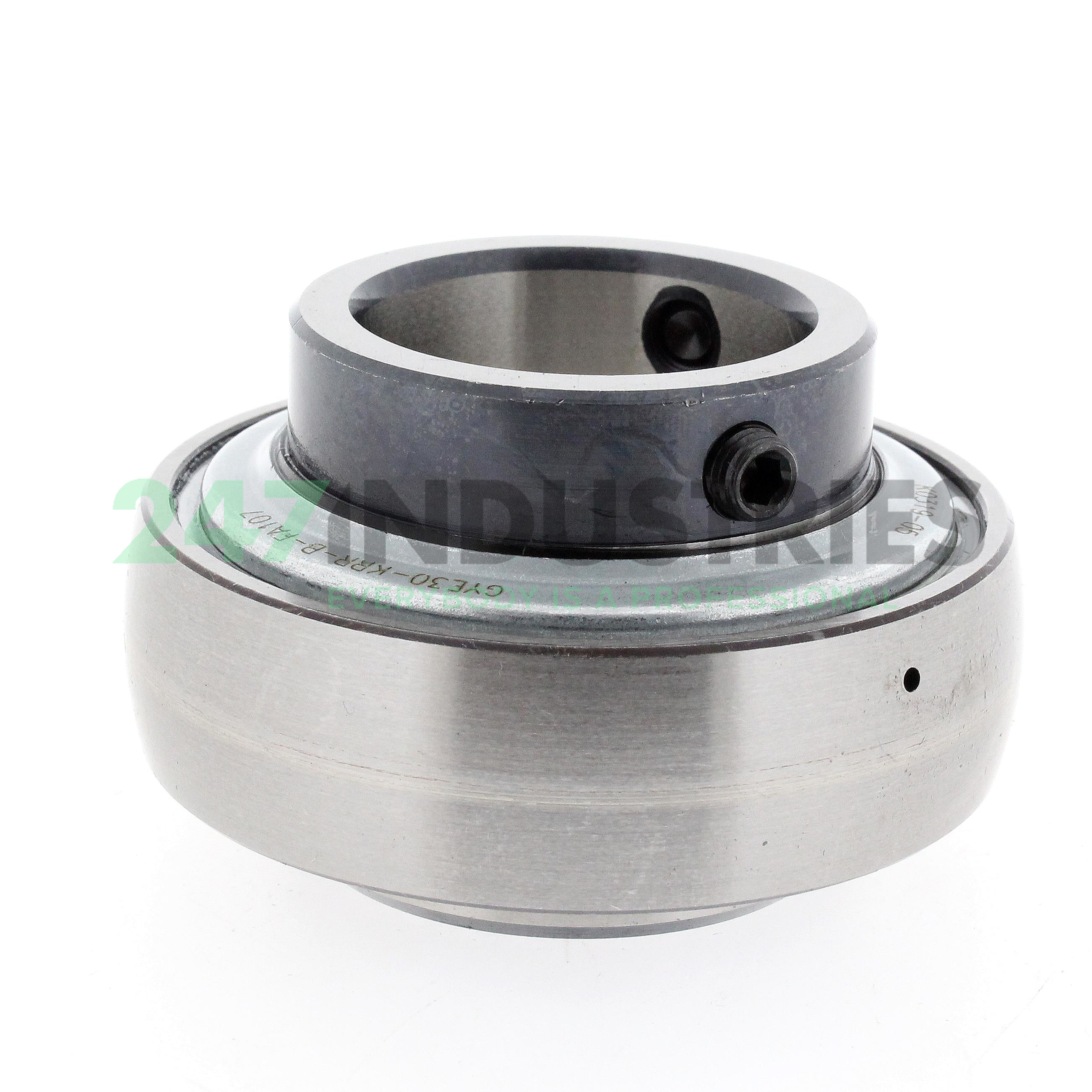

GYE30-KRR-B-FA107 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 38,1
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.5
7. Outside diameter (D SP) mm 62
8. Width (b) mm 38,1

Suffix description

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
2. B Bearing With Spherical Outer Ring
3. FA107 Bearing With Lubrication Holes On The Locating Side

Technical details

1. Availability 37 pcs
2. Brand INA
3. Item number GYE30-KRR-B-FA107 INA
4. Also known as 0004930740000

5. EAN 4012802784565
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.298

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment I - Lubr Holes on Locating Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11300
2. Radial Dynamic Load Rating Cr (N) 20700
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GYE..-KRR-B

Downloads and links

1. Link to manufacturer Link to manufacturer
