GYE15-KRR-B-VA-HLA INA

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 40
3. Width (B) MM 25
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.9843
7. Outside diameter (D SP) mm 40
8. Width (b) mm 25

Suffix description

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
2. B Bearing With Spherical Outer Ring
3. VA Corrosion-Resistant Design Made From High Alloy Rolling Bearing Steel
4. HLA Factory Location Code, No Additional Meaning. Can Be Used As Standard

Technical details

1. Availability 30 pcs on Fri 19 Dec
2. Brand INA
3. Item number GYE15-KRR-B-VA-HLA INA
4. Also known as 0530918840000
   GYE15-KRR-B-VA

5. EAN 4047643202695
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.105

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment Stainless Steel Bearing

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4550
2. Radial Dynamic Load Rating Cr (N) 9200
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02

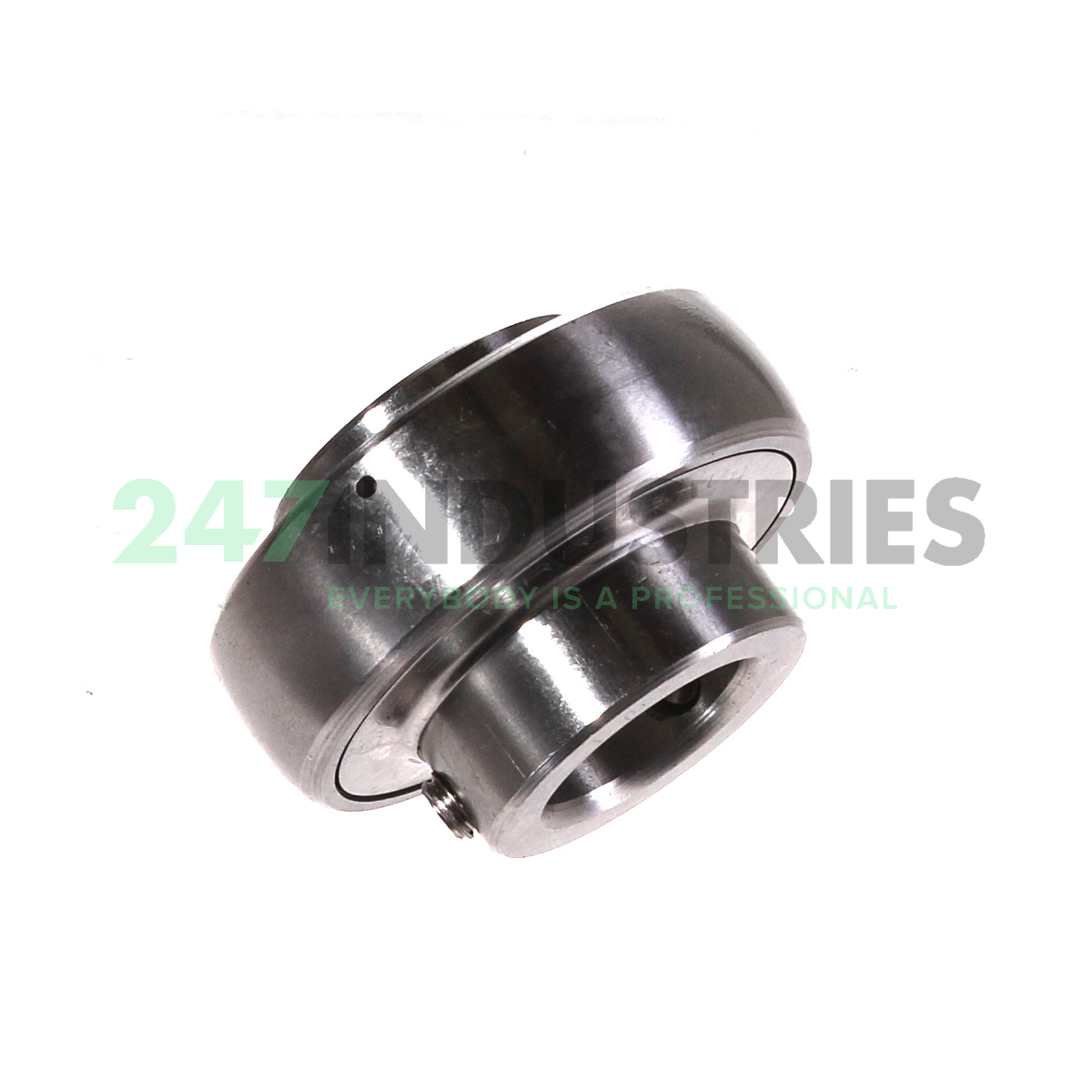

5. Medias description Radial insert ball bearing GYE..-KRR-B-VA
