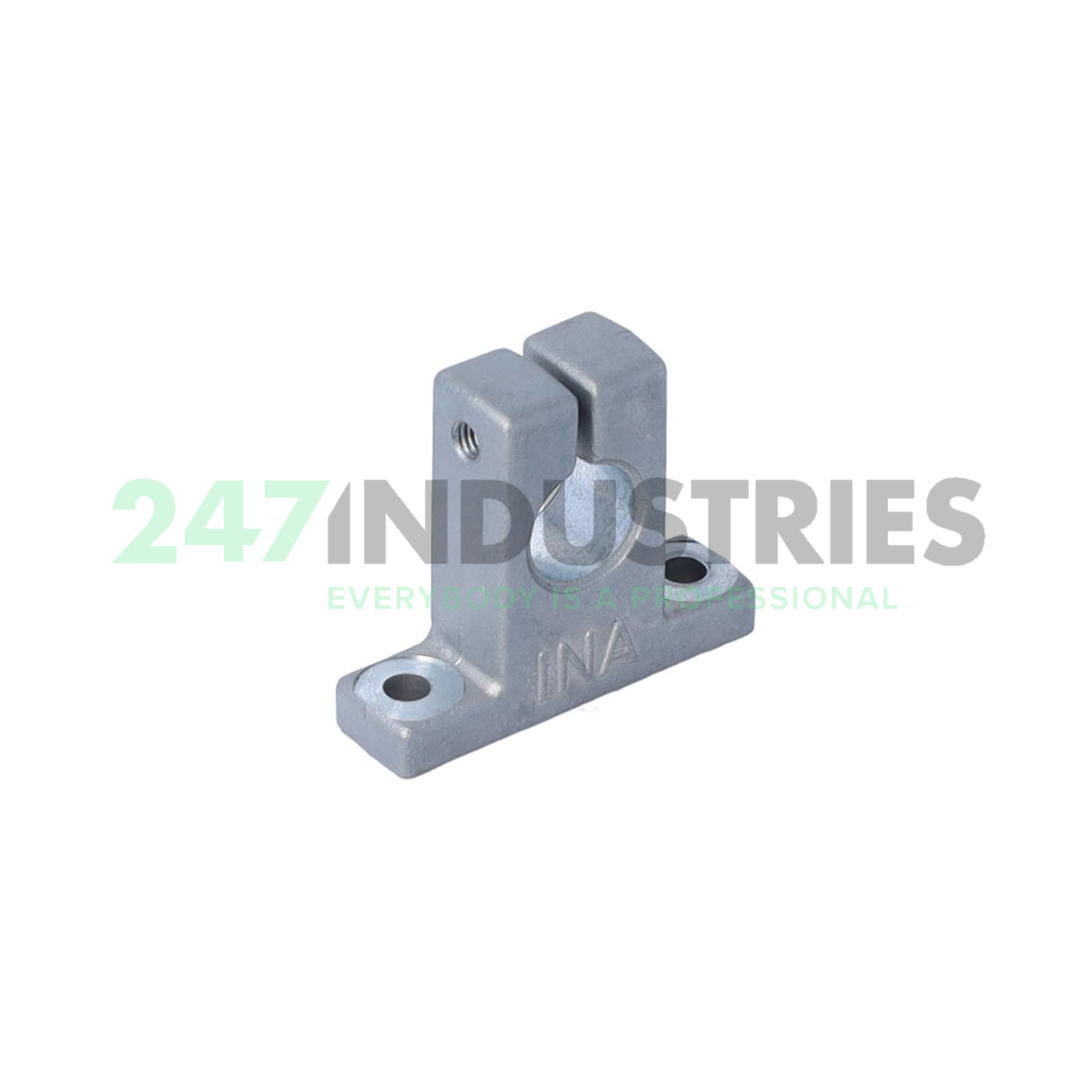

GW12 INA

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 42
3. Width (B) MM 12
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.4724
7. Height (H) mm 35
8. Length (L) mm 12
9. Width (b) mm 42

Suffix description

1. C Hollow Section Profile, With Two Raceway Shafts. For Use In Actuators This Suffix Means: Basic Design
2. ZR For Use In Actuators, This Suffix Means: Drive By Toothed Belt
3. 3000

Technical details

1. Availability 95 pcs
2. Brand INA
3. Item number GW12 INA
4. Also known as 0015761860000

5. EAN 4012802041941
6. Category Linear Bearing Part

Weight and Dimensions

1. Weight (kg) 0.04

Data from Schaeffler (medias)

1. ECLASS number 23-30-92-90
2. ECLASS2 number 23-30-92-90

Downloads and links

1. Link to manufacturer Link to manufacturer
