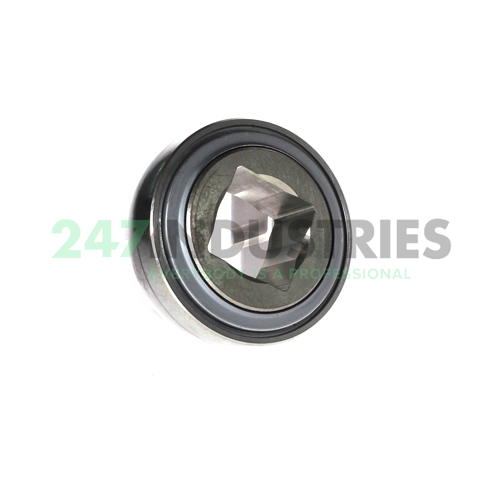

GVK109-211-KTT-B INA

All dimensions

1. Inner (d) MM 39,69
2. Outer (D) MM 100
3. Width (B) MM 36
4. Inner (d) Inch 1.5625
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.4173

Suffix description

1. KTT Triple Lip Seals On Both Sides Of The Bearing (T Type Seal)
2. B Bearing With Spherical Outer Ring

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number GVK109-211-KTT-B INA
4. Also known as GW211PPB3 AH08

5. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 1.25

Product Properties

1. Seal 3T - Tripple Seal
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 46000
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Self-aligning deep groove ball bearings GVK..-KTT-B, spherical outer ring, inner ring with square bore, T seals on both sides

Downloads and links

1. Link to manufacturer Link to manufacturer
