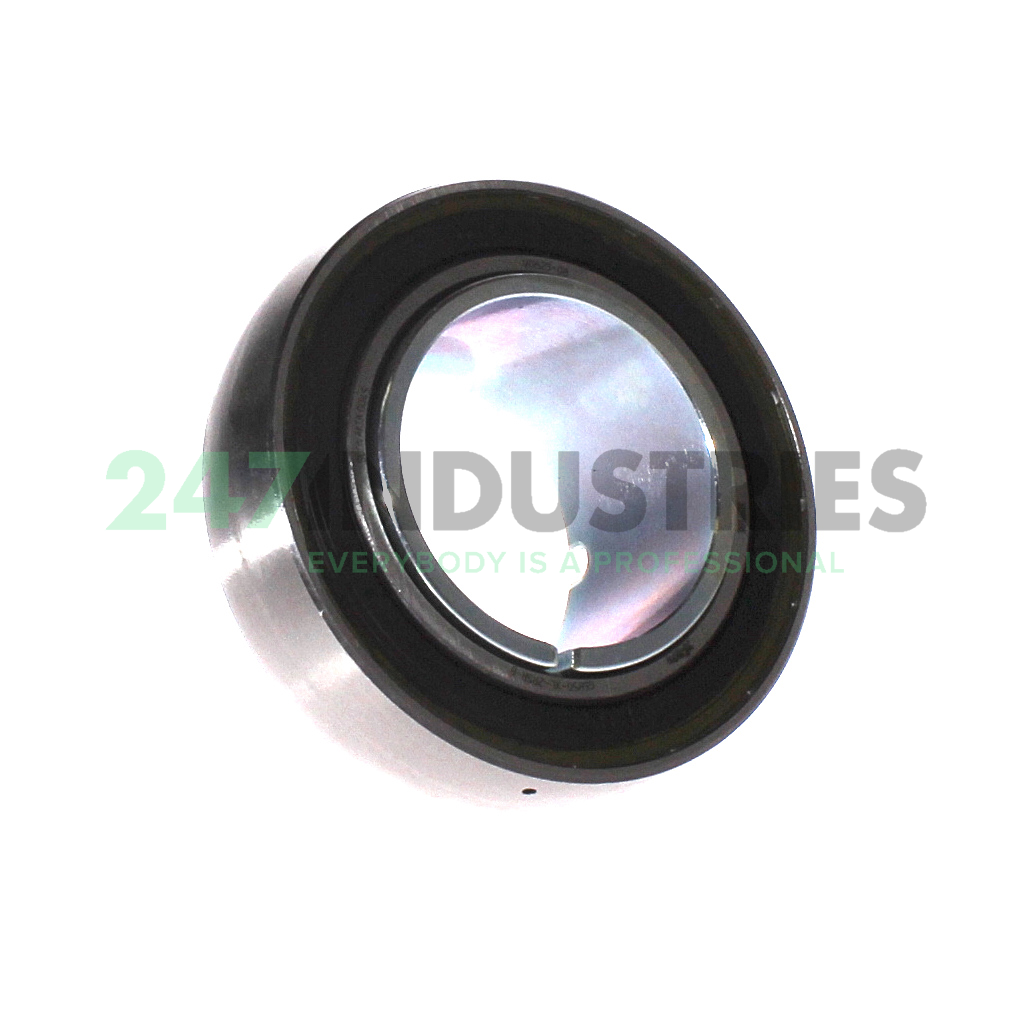

GSH50-XL-2RSR-B INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 40
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.5748
7. Outside diameter (D SP) mm 90
8. Width (b) mm 22
9. Locking collar total width (B 1) mm 42

Suffix description

1. XL X-Life
2. 2RSR Lip Seals On Both Sides (Vulcanised)
3. B Spherical Outside Diameter

Technical details

1. Availability 5 pcs
2. Brand INA
3. Item number GSH50-XL-2RSR-B INA
4. Also known as 0004138950000
   GSH50-2RSR-B

5. EAN 4012802786491
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.7

Product Properties

1. Seal 2RS - Rubber Seal on Two Sides
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23100
2. Radial Dynamic Load Rating Cr (N) 35000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GSH..-2RSR-B, spherical outer ring, location by adapter sleeve, RSR seals on both sides
