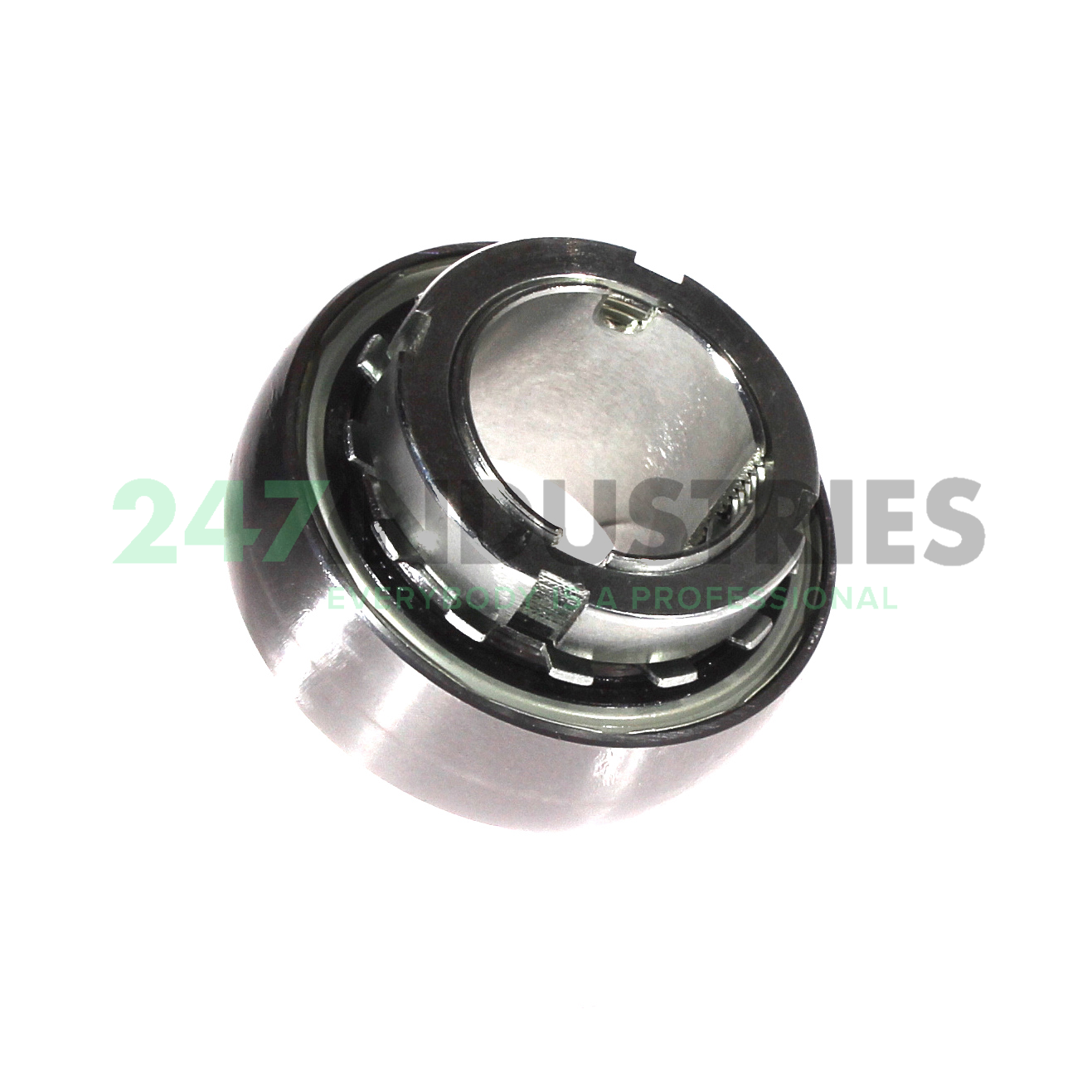

GSH30-XL-2RSR-B INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 18
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.7087
7. Outside diameter (D SP) mm 62
8. Width (b) mm 18
9. Locking collar total width (B 1) mm 32

Suffix description

1. XL X-Life
2. 2RSR Lip Seals On Both Sides (Vulcanised)
3. B Spherical Outside Diameter

Technical details

1. Availability 112 pcs
2. Brand INA
3. Item number GSH30-XL-2RSR-B INA
4. Also known as 0009474070000
   362006BTN
   GSH30-2RSR-B

5. EAN 4012802802900
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.27

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 11600
2. Radial Dynamic Load Rating Cr (N) 20100
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GSH..-2RSR-B, spherical outer ring, location by adapter sleeve, RSR seals on both sides
