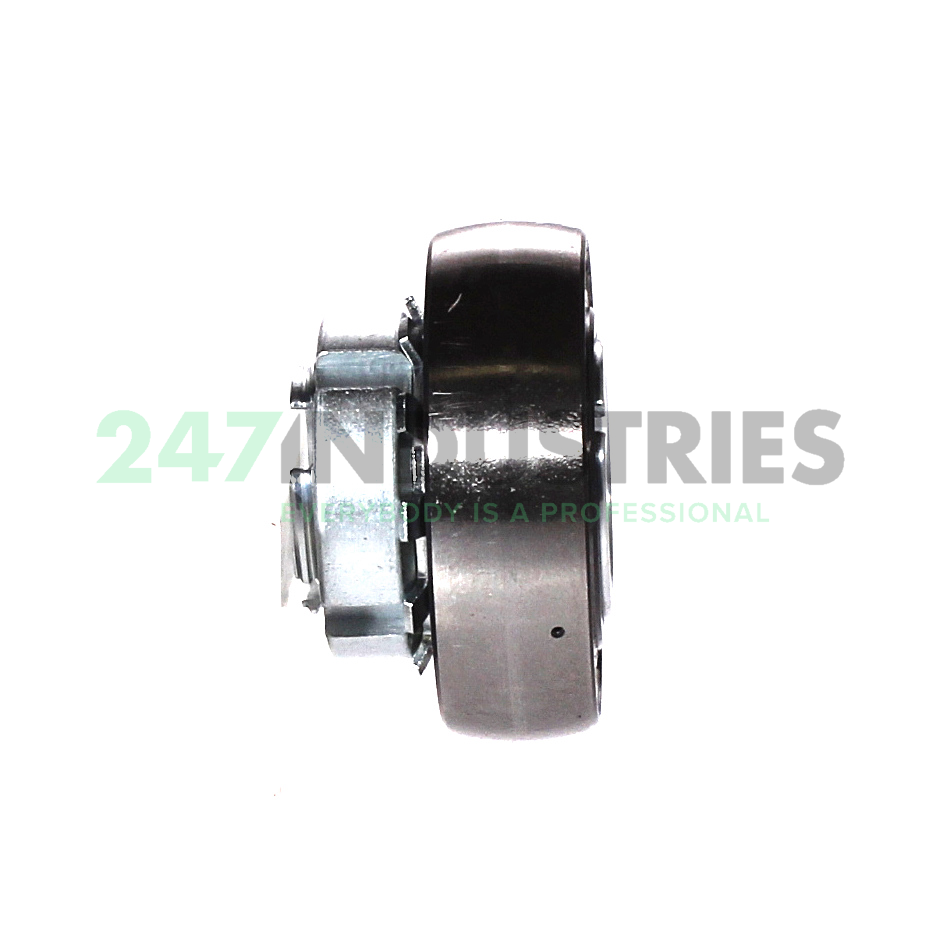

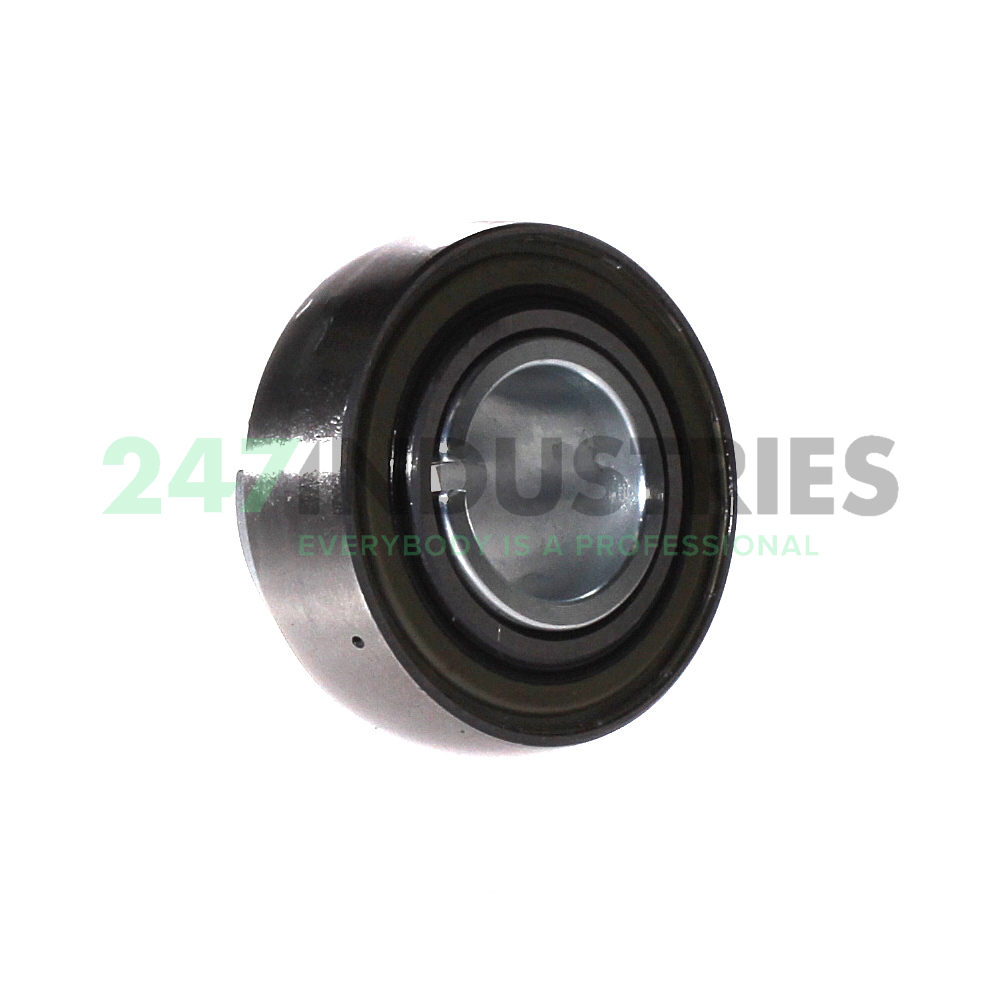

GSH20-XL-2RSR-B INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 15
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5906
7. Outside diameter (D SP) mm 47
8. Width (b) mm 15
9. Locking collar total width (B 1) mm 28

Suffix description

1. XL X-Life
2. 2RSR Lip Seals On Both Sides (Vulcanised)
3. B Spherical Outside Diameter

Technical details

1. Availability 64 pcs
2. Brand INA
3. Item number GSH20-XL-2RSR-B INA
4. Also known as 0009929410000
   362004BTN
   GSH20-2RSR-B

5. EAN 4012802816211
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.14

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 7000
2. Radial Dynamic Load Rating Cr (N) 13400
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GSH..-2RSR-B, spherical outer ring, location by adapter sleeve, RSR seals on both sides
