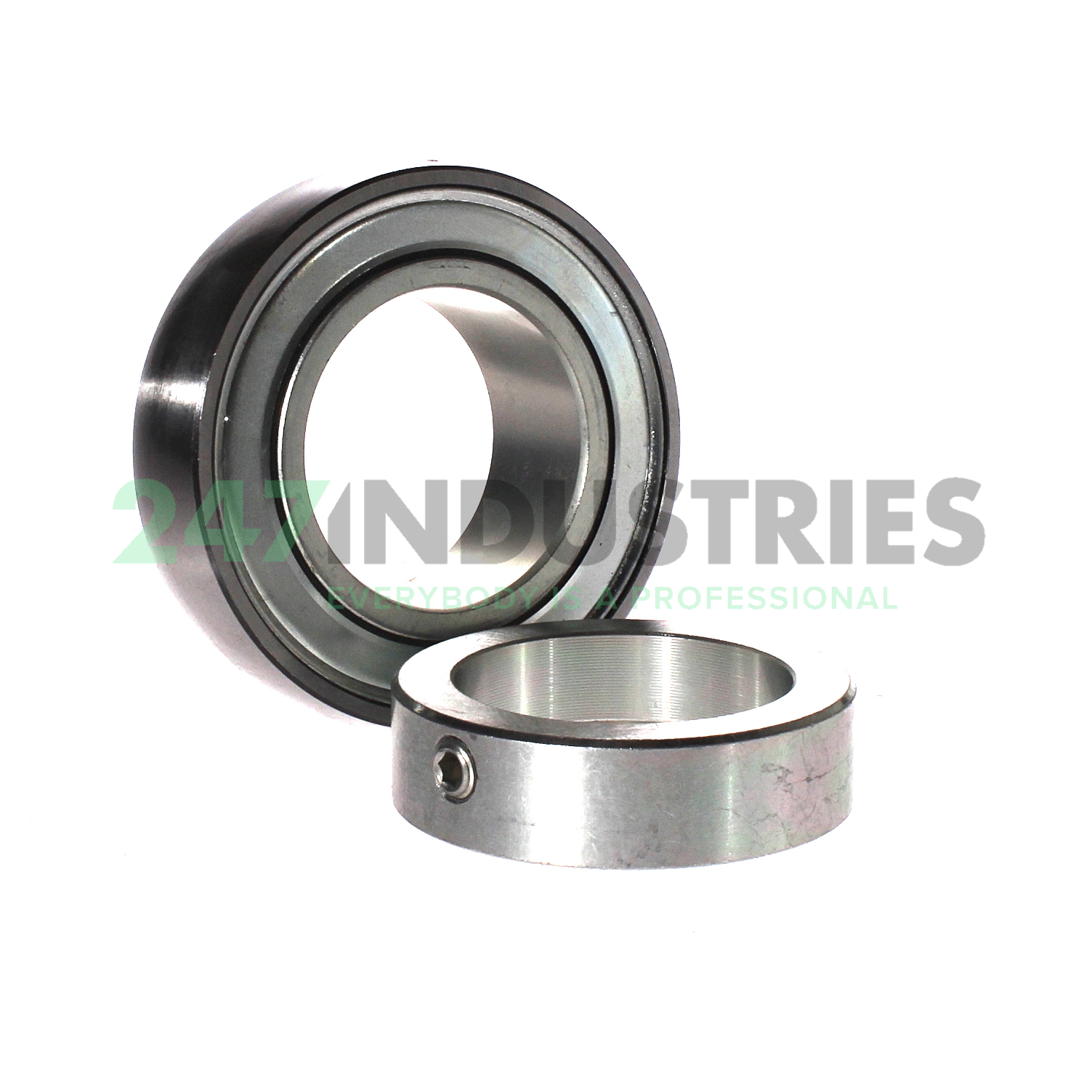

GRAE55-XL-NPP-B INA

All dimensions

1. Inner (d) MM 55
2. Outer (D) MM 100
3. Width (B) MM 48,4
4. Inner (d) Inch 2.1654
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.9055
7. Outside diameter (D SP) mm 100
8. Width (b) mm 32,5
9. Locking collar total width (B 1) mm 48,4

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing
5. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 70 pcs
2. Brand INA
3. Item number GRAE55-XL-NPP-B INA
4. Also known as 0131322020000
   16211
   YET211

5. EAN 4012802829525
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 1.001

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 29000
2. Radial Dynamic Load Rating Cr (N) 46000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GRAE..-XL-NPP-B

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
