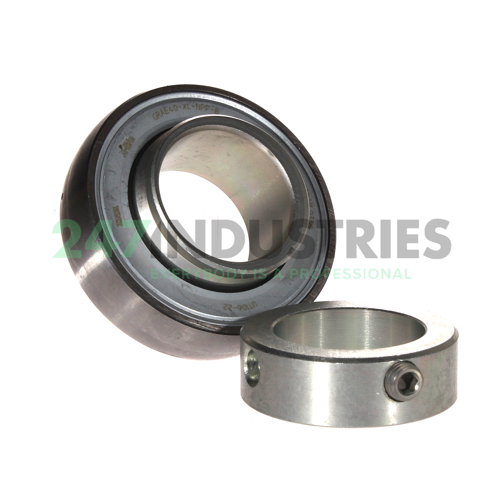

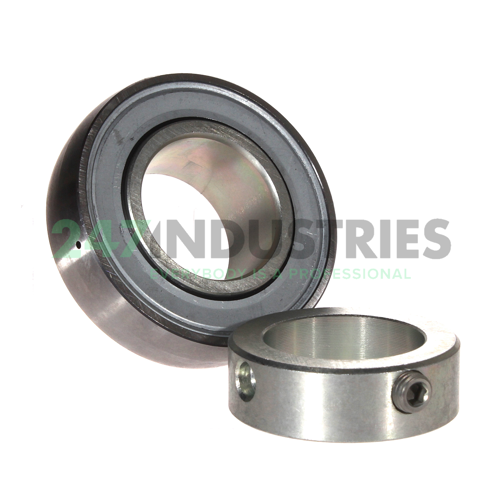

GRAE40-XL-NPP-B INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 43,7
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.7205
7. Outside diameter (D SP) mm 80
8. Width (b) mm 30,2
9. Locking collar total width (B 1) mm 43,8

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing
5. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 92 pcs
2. Brand INA
3. Item number GRAE40-XL-NPP-B INA
4. Also known as 0008494720000
   1240-40ECG
   16208
   238208BD-2LS
   238208D-2LS
   AEL208
   EN208S
   ES208
   FH208
   GRAE40KRRB
   GRAE40-NPP-B
   GRAE40RRB
   INS-SXV-40M
   KH208
   SA208
   UE208
   WG2M40UL
   YET208

5. EAN 4012802800760
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.59

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19800
2. Radial Dynamic Load Rating Cr (N) 34500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GRAE..-XL-NPP-B
