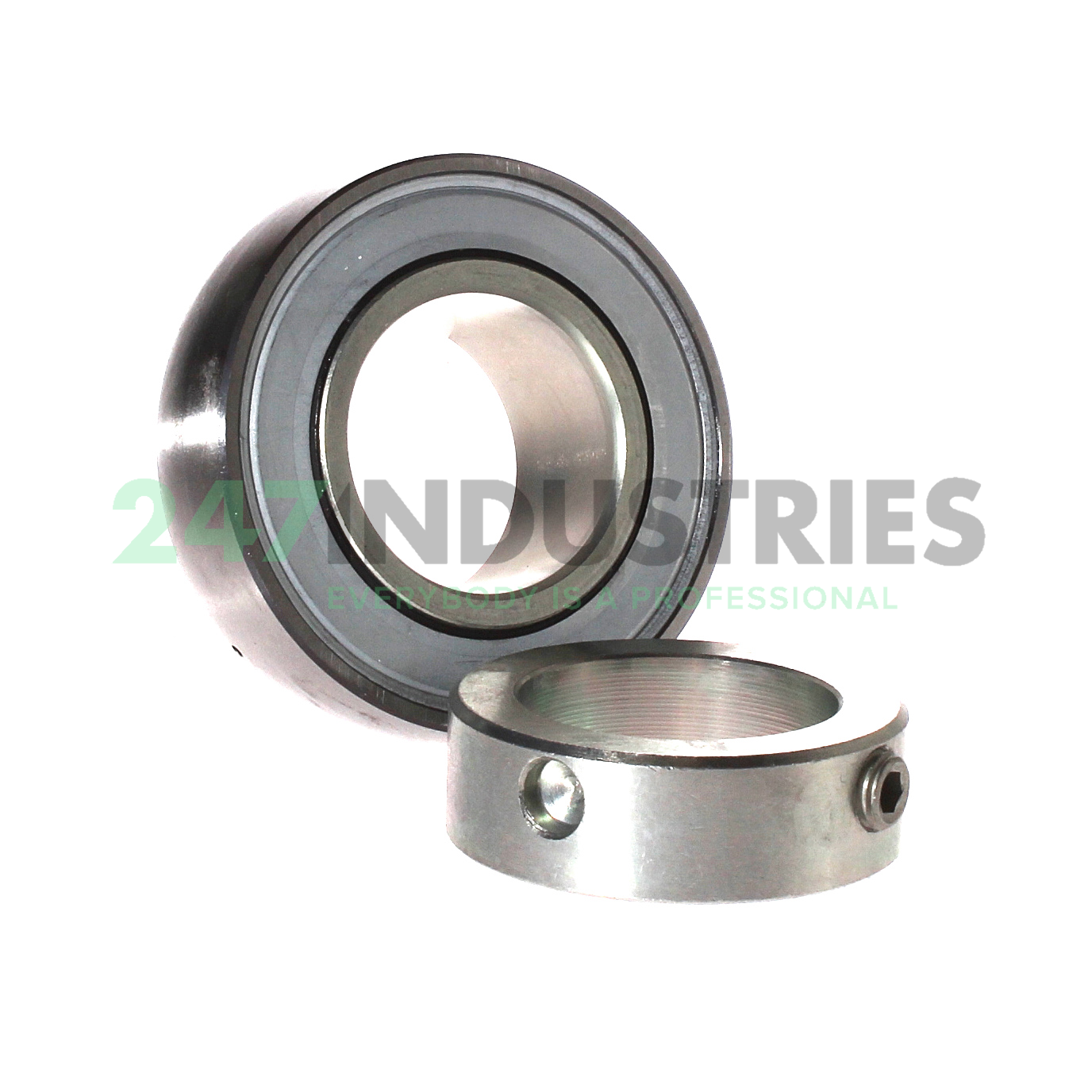

GRAE40-NPP-B-FA107 INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 80
3. Width (B) MM 43,7
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.1496
6. Width (B) Inch 1.7205
7. Outside diameter (D SP) mm 80
8. Width (b) mm 30,2
9. Locking collar total width (B 1) mm 43,8

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. FA107 Bearing With Lubrication Holes On The Locating Side

Technical details

1. Availability 540 pcs
2. Brand INA
3. Item number GRAE40-NPP-B-FA107 INA
4. Also known as 0004901640000
   YET208

5. EAN 4012802784824
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.59

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment I - Lubr Holes on Locating Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19800
2. Radial Dynamic Load Rating Cr (N) 34500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GRAE..-NPP-B
