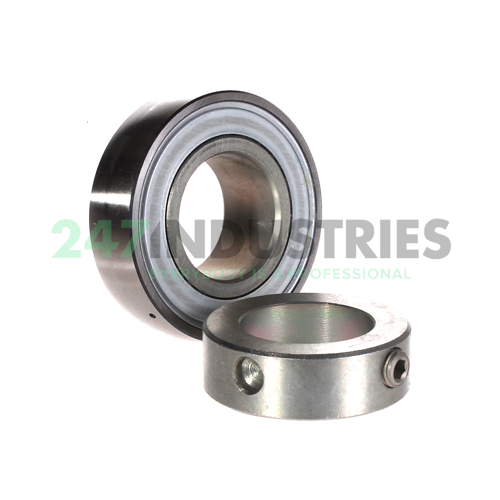

GRAE35-XL-NPP-B INA

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 72
3. Width (B) MM 38,9
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.8346
6. Width (B) Inch 1.5315
7. Outside diameter (D SP) mm 72
8. Width (b) mm 25,4
9. Locking collar total width (B 1) mm 39

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. FA106 Bearing Subjected To Special Noise Testing
5. L460 NSF-H1 Approval, Lubricants Registered As H1 Or Certified To ISO 21469 Are Considered Food Grade

Technical details

1. Availability 167 pcs
2. Brand INA
3. Item number GRAE35-XL-NPP-B INA
4. Also known as 0008494480000
   16207
   238207BD-2LS
   238207D-2LS
   GRAE35-NPP-B
   YET207

5. EAN 4012802800784
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.44

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 15300
2. Radial Dynamic Load Rating Cr (N) 27500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GRAE..-XL-NPP-B
