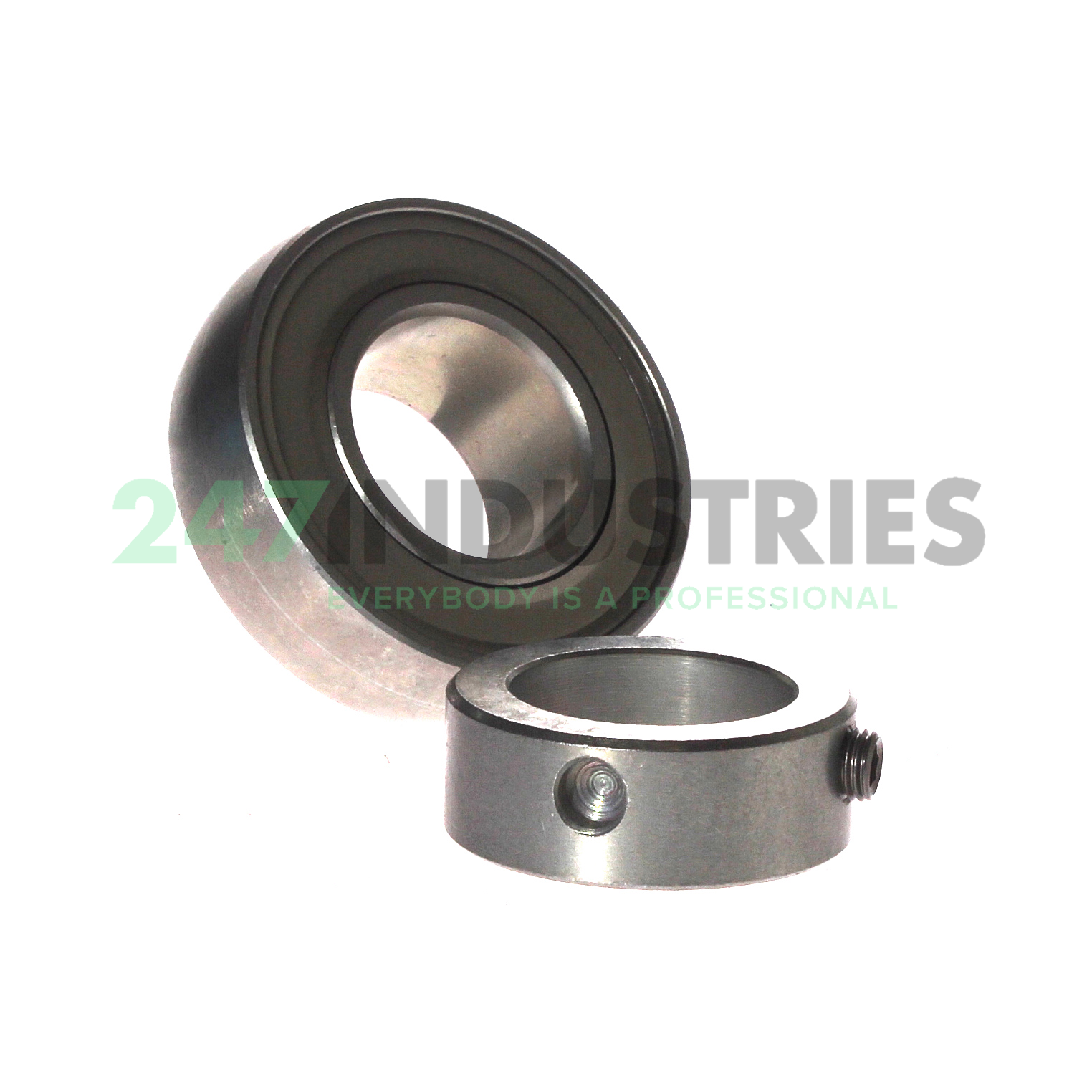

GRAE30-NPP-B-FA107/125.5 INA

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 62
3. Width (B) MM 35,7
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.4409
6. Width (B) Inch 1.4055
7. Outside diameter (D SP) mm 62
8. Width (b) mm 23,8
9. Locking collar total width (B 1) mm 35,8

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. B Bearing With Spherical Outer Ring
3. FA107/125.5
4. FA107 Bearing With Lubrication Holes On The Locating Side
5. FA125.5 With Corrotect® Coating, Protected Against Corrosion

Technical details

1. Availability 79 pcs
2. Brand INA
3. Item number GRAE30-NPP-B-FA107/125.5 INA
4. Also known as 0076158760000
   YET206

5. EAN 4012802812213
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.3

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment D - Corrotect Coating & Lubr Holes

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 11300
