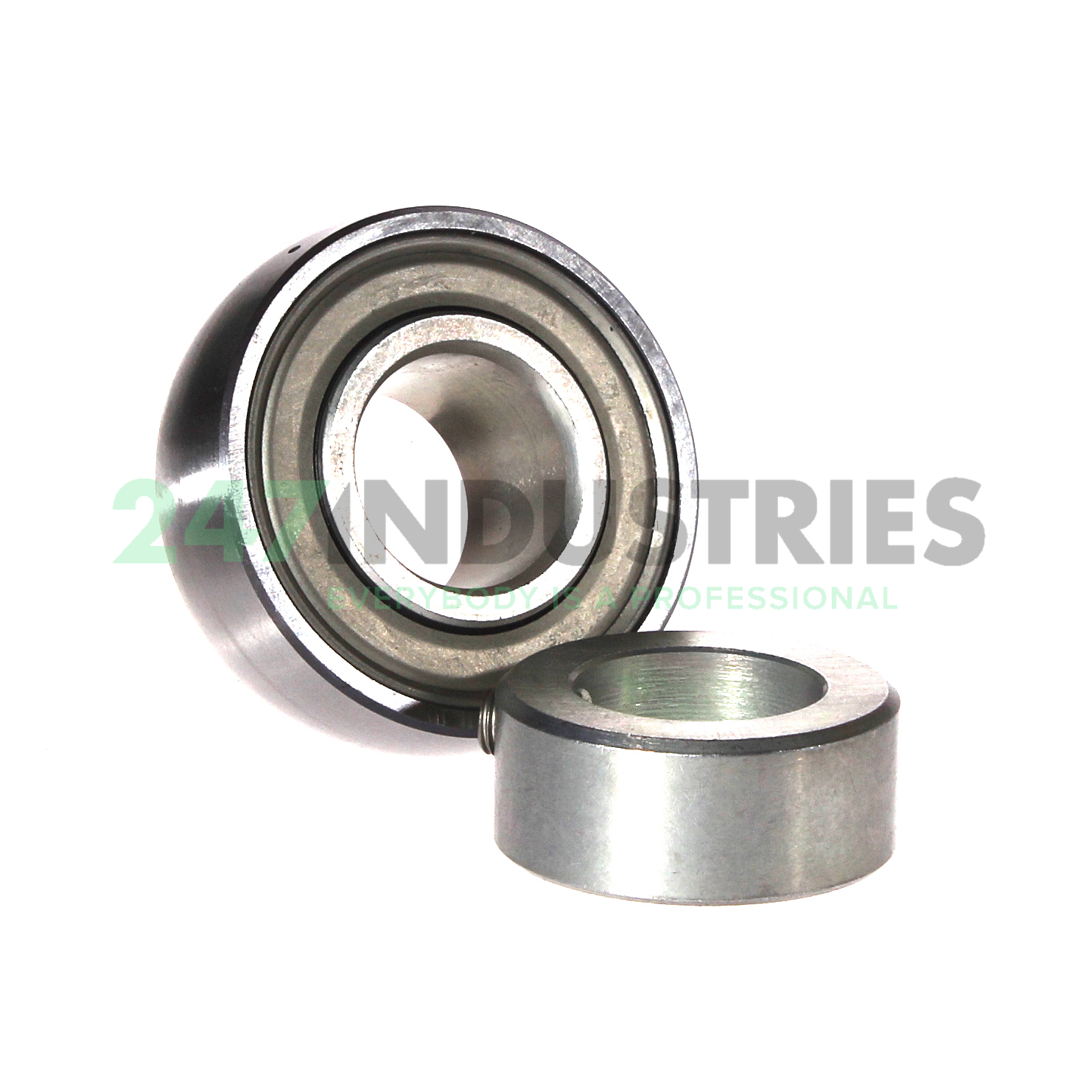

GRAE20-NPP-B-FA106 INA

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 47
3. Width (B) MM 31
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.2205
7. Outside diameter (D SP) mm 47
8. Width (b) mm 21,4
9. Locking collar total width (B 1) mm 31

Suffix description

1. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
2. B Bearing With Spherical Outer Ring
3. FA106 Bearing Subjected To Special Noise Testing

Technical details

1. Availability 2 pcs
2. Brand INA
3. Item number GRAE20-NPP-B-FA106 INA
4. Also known as 0008404240000
   YET204

5. EAN 4012802788686
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.18

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment FA106

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 6600
2. Radial Dynamic Load Rating Cr (N) 13600
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GRAE..-NPP-B
