GRA50-XL INA

Housing and Bearing (assembly)

Stock
68 pcs in stock and ready for shipment
Brand INA
Article number GRA50-XL INA
Product description

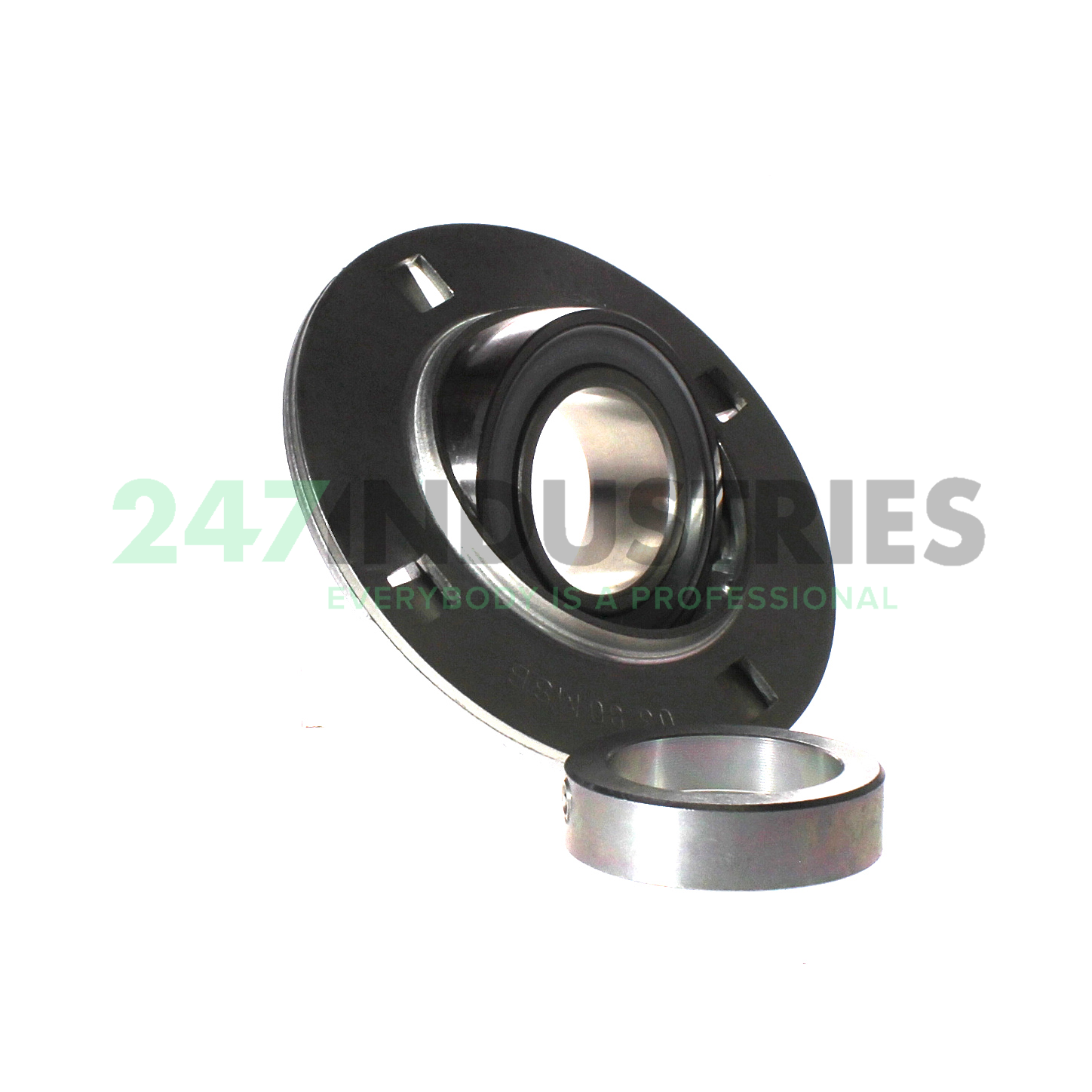

The GRA50-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: GRA50-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 50
  2. Outer (D) MM 155,5
  3. Width (B) MM 43,7
  4. Inner (d) Inch 1.9685
  5. Outer (D) Inch 6.122
  6. Width (B) Inch 1.7205
  7. Height flange (H) mm 155,5
  8. Locking collar total width (B 1) mm 43,8
  9. Total height unit (U) mm 36,7

Suffix description

  1. XL X-Life

Technical details

  1. Availability 68 pcs
  2. Brand INA
  3. Item number GRA50-XL INA
  4. Also known as 0008294390000
    GRA50
    GRAE50NPPB + 90MSB/MSA
  5. EAN 4012802792485
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.68

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 23200
  2. Radial Dynamic Load Rating Cr (N) 37500
  3. Load carrying capacity (housing) (C 0r G) 8600
  4. ECLASS number 23-05-16-02
  5. ECLASS2 number 23-05-16-02
  6. Medias description Housing units GRA, three/four-bolt flanged housing units, sheet steel, eccentric locking collar, P seals

Downloads and links

  1. Download datasheet Download datasheet
  2. Link to Manufacturer Link to Manufacturer
  3. X-life brochure X-life brochure
