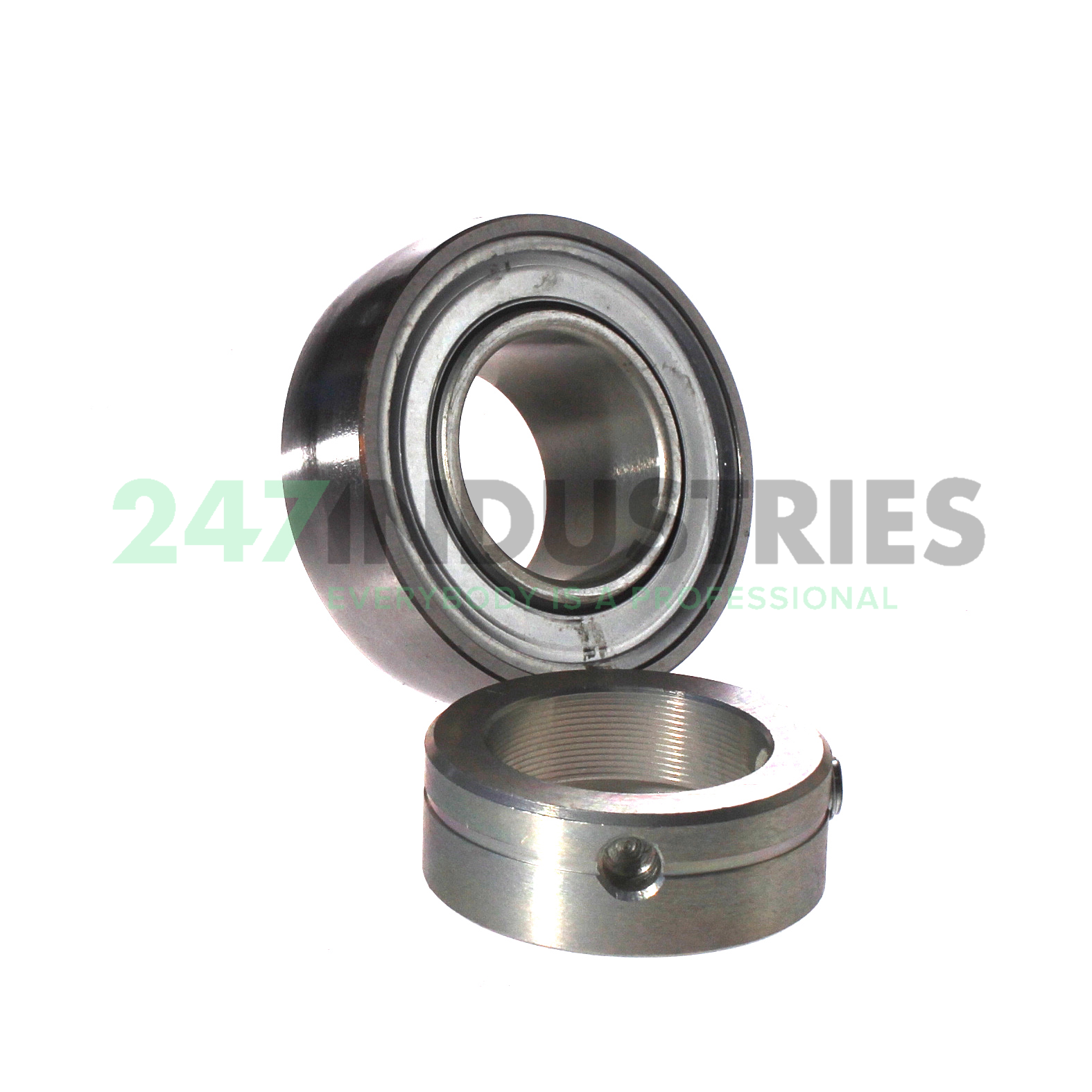

GRA100-XL-NPP-B-AS2/V INA

All dimensions

1. Inner (d) MM 25,4
2. Outer (D) MM 52
3. Width (B) MM 31
4. Inner (d) Inch 1
5. Outer (D) Inch 2.0472
6. Width (B) Inch 1.2205
7. Outside diameter (D SP) mm 52
8. Width (b) mm 21,4
9. Locking collar total width (B 1) mm 31

Suffix description

1. XL X-Life
2. NPP Lip Seals On Both Sides (P Type - Two Zinc-Plated Sheet Steel Washers With Intermediate NBR Part, Seal Lip Axially Preloaded)
3. B Bearing With Spherical Outer Ring
4. AS2/V Bearing Outer Ring With Two Lubrication Holes In Offset Planes

Technical details

1. Availability 26 pcs
2. Brand INA
3. Item number GRA100-XL-NPP-B-AS2/V INA
4. Also known as 0965961390000
   YET205-100

5. EAN 4064327238115
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.184

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 7800

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
