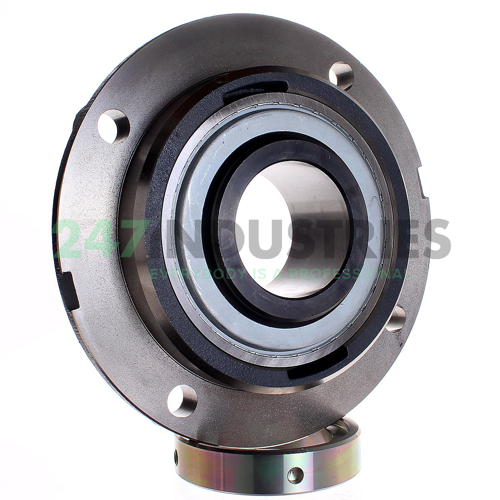

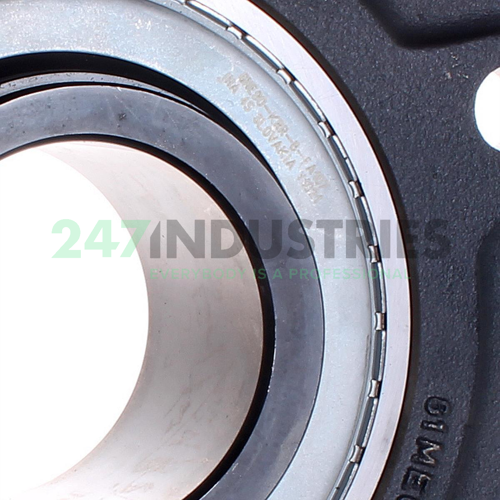

GNE90-KRR-B-FA107 INA

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 190
3. Width (B) MM 101
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 7.4803
6. Width (B) Inch 3.9764
7. Outside diameter (D SP) mm 190
8. Width (b) mm 77,5
9. Locking collar total width (B 1) mm 101

Suffix description

1. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
2. B Bearing With Spherical Outer Ring
3. FA107 Bearing With Lubrication Holes On The Locating Side

Technical details

1. Availability 7 pcs
2. Brand INA
3. Item number GNE90-KRR-B-FA107 INA
4. Also known as 0004880620000

5. EAN 4012802784886
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 9.3

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment I - Lubr Holes on Locating Side

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 107000
2. Radial Dynamic Load Rating Cr (N) 151000
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearing GNE..-KRR-B
