GNE80-XL-KRR-B INA

All dimensions

1. Inner (d) MM 80,00
2. Outer (D) MM 170,00
3. Width (B) MM 93,60
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 6.6929
6. Width (B) Inch 3.6850
7. Outside diameter (D SP) mm 170,00
8. Width (b) mm 73,00
9. Locking collar total width (B 1) mm 93,60

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring

Technical details

1. Availability 17 pcs
2. Brand INA
3. Item number GNE80-XL-KRR-B INA
4. Also known as 0008838910000
   GNE80-KRR-B

5. EAN 4012802809107
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 7.1

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 87000
2. Radial Dynamic Load Rating Cr (N) 131000
3. Basic static load rating, radial (C 0r) "87000.0000"
4. ECLASS number 23-05-08-02
5. ECLASS2 number 23-05-08-02

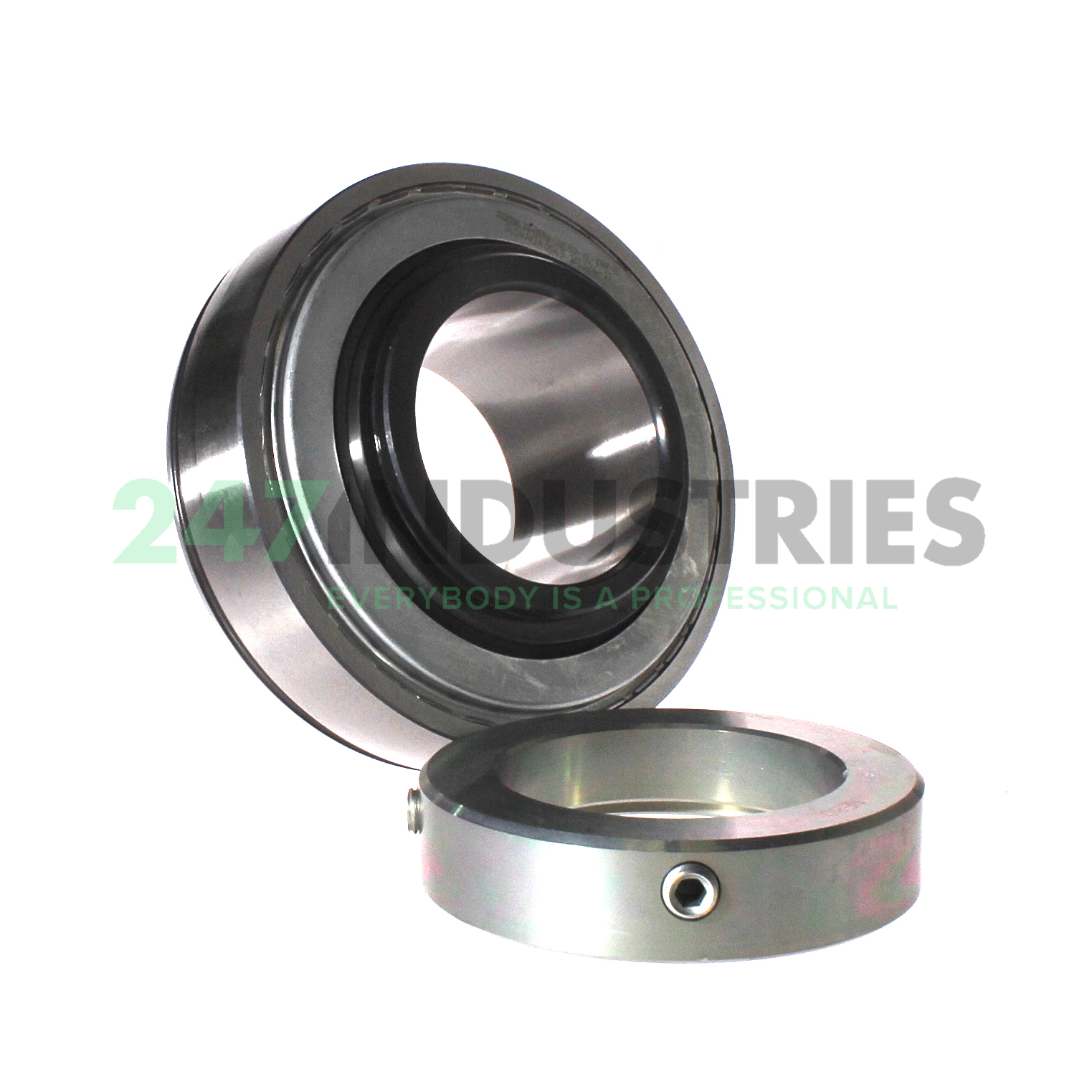

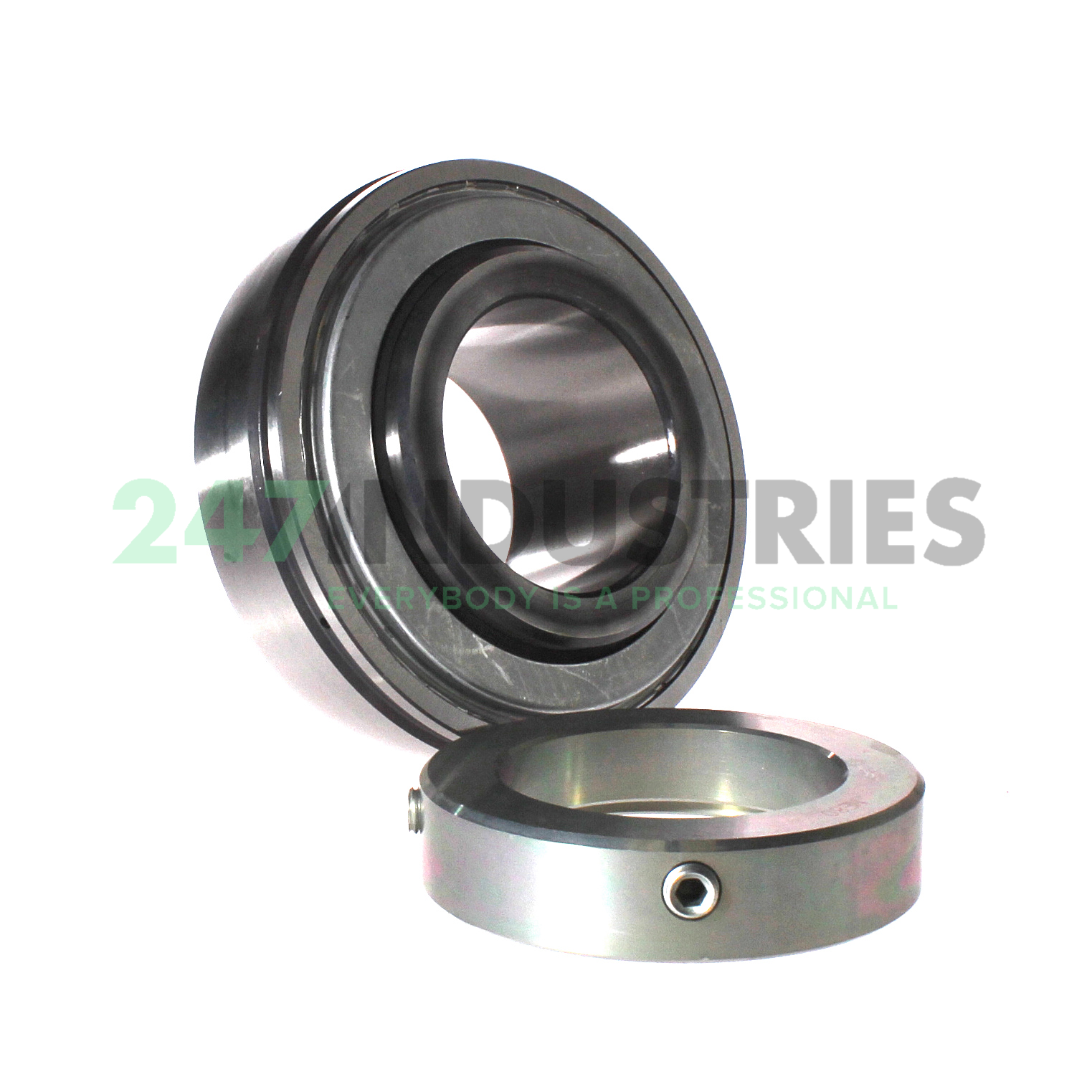

6. Medias description Radial insert ball bearings GNE..-KRR-B, spherical outer ring, location by eccentric locking collar, R seals on both sides
