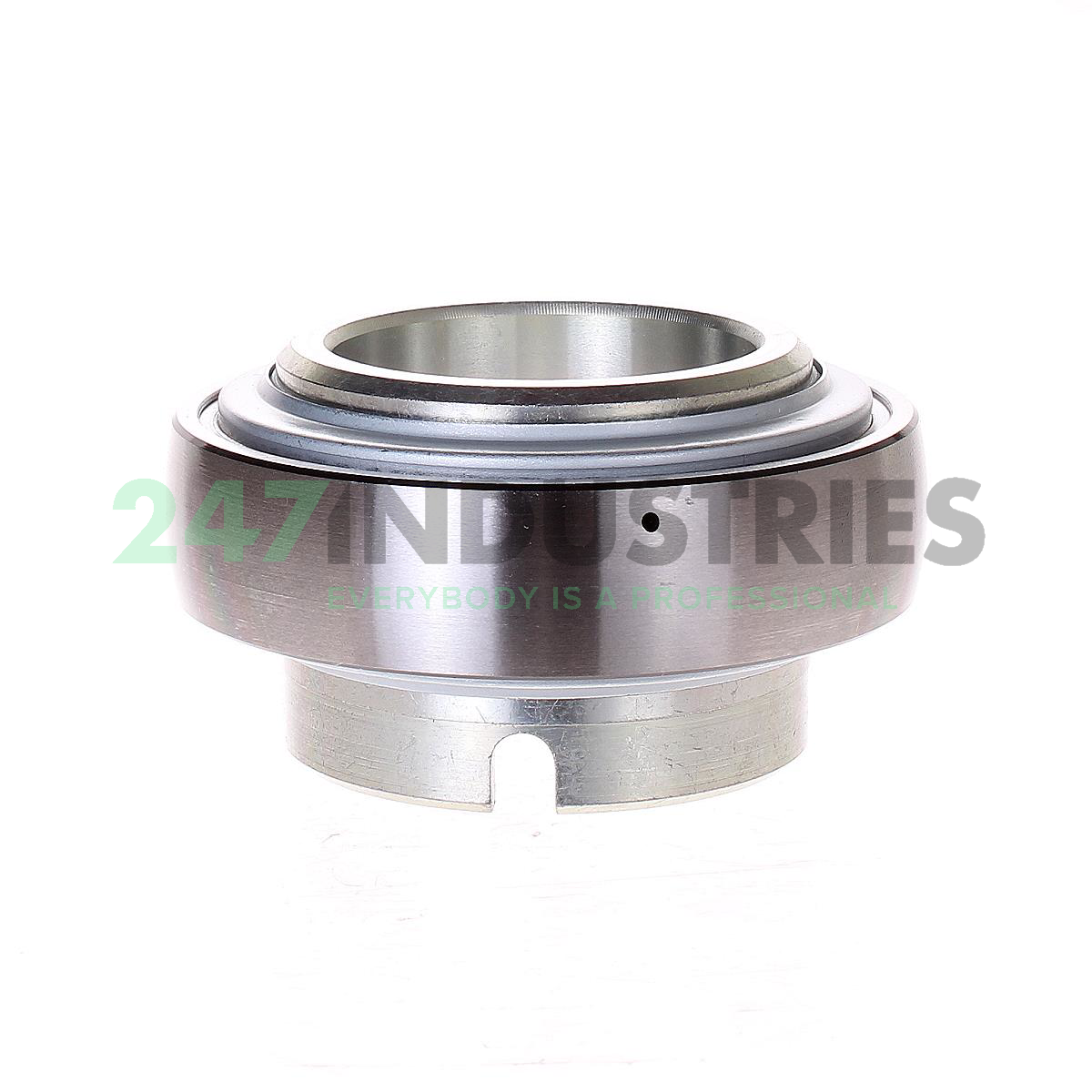

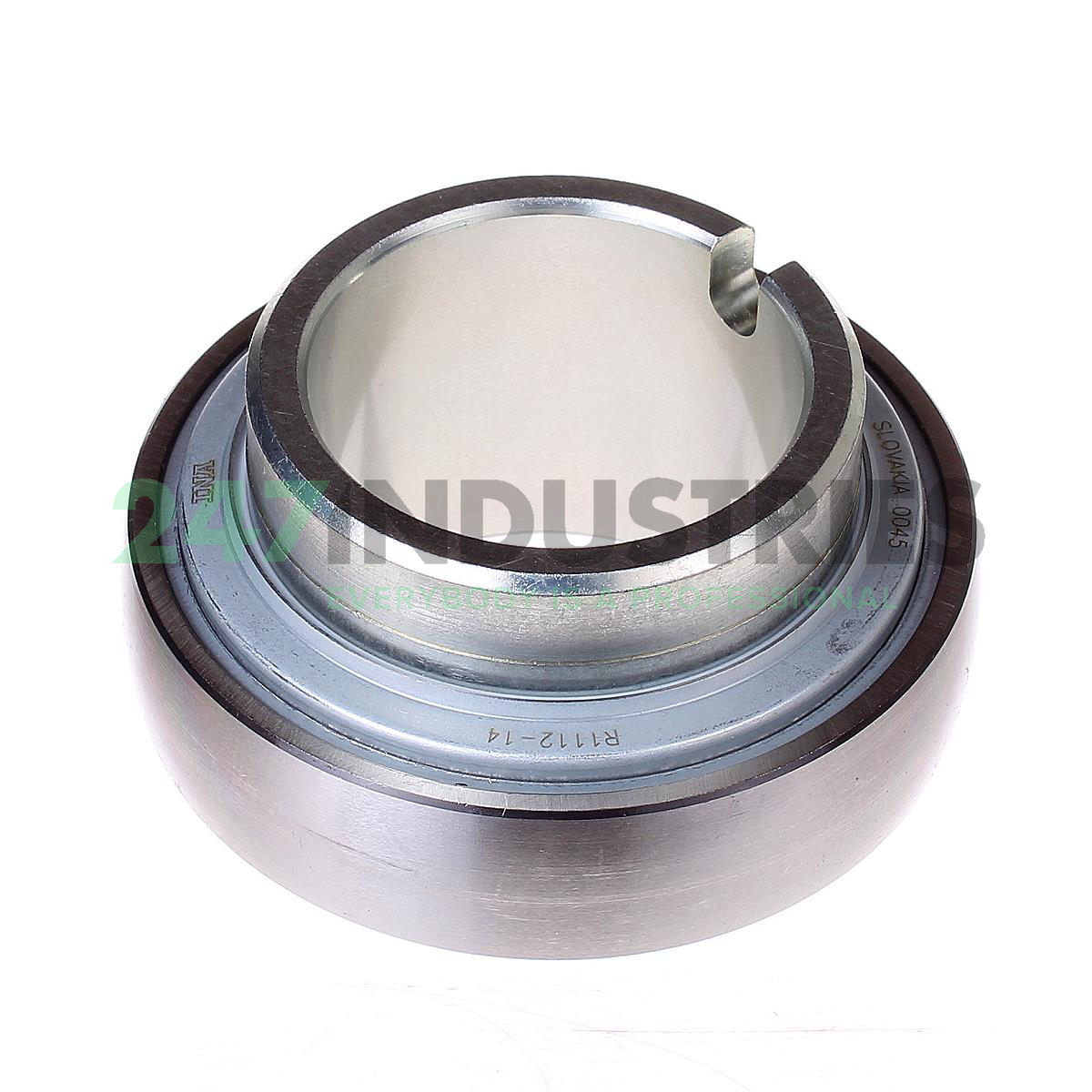

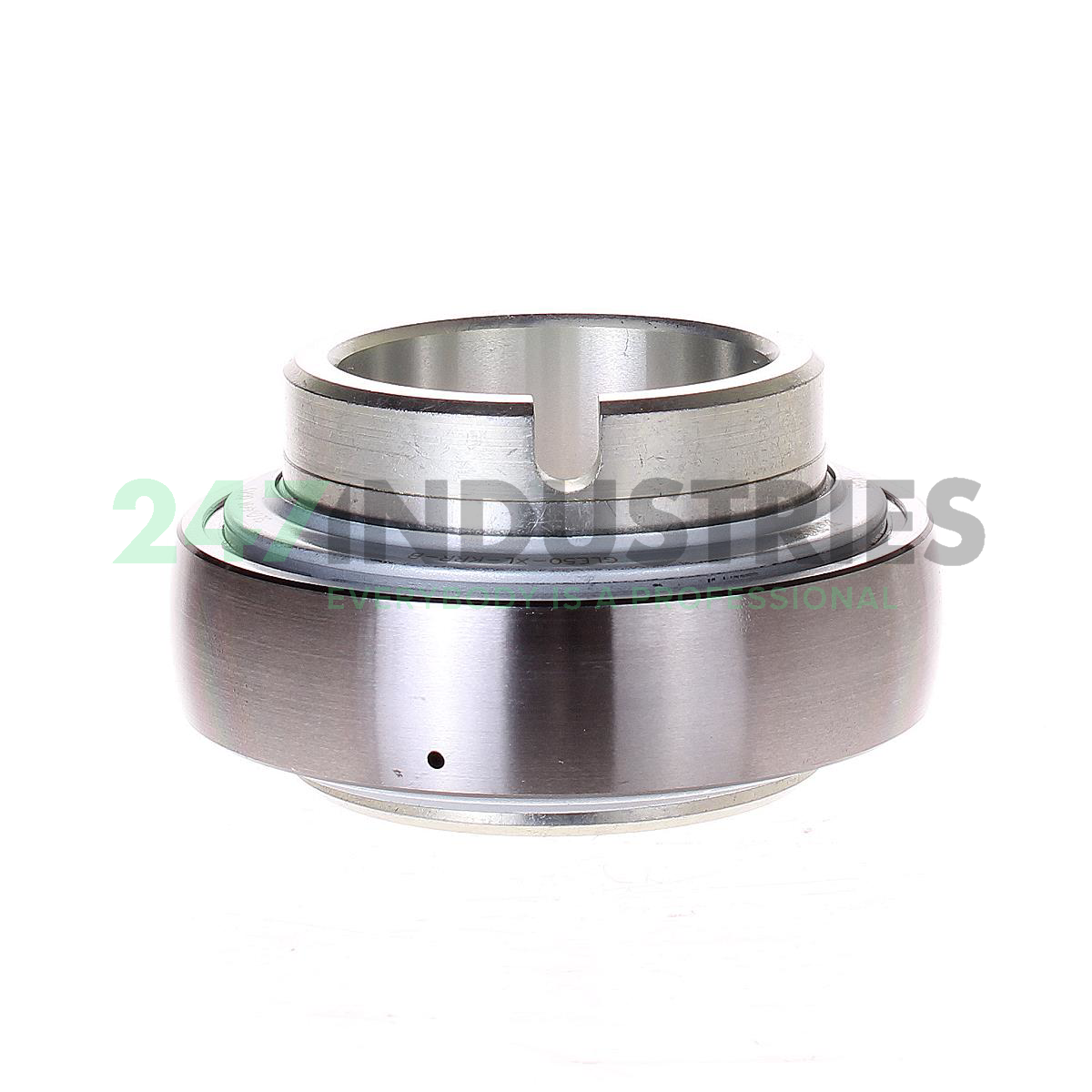

GLE50-XL-KRR-B INA

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 49,2
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 1.937
7. Outside diameter (D SP) mm 90
8. Width (b) mm 49,2

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)
3. B Bearing With Spherical Outer Ring

Technical details

1. Availability 42 pcs
2. Brand INA
3. Item number GLE50-XL-KRR-B INA
4. Also known as 0008530700000
   GLE50-KRR-B

5. EAN 4012802799538
6. Category Bearings for Housings

Weight and Dimensions

1. Weight (kg) 0.76

Product Properties

1. Seal 2F - Standard Seal for Y-bearings
2. Lubrication Standard Lubrication
3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 23200
2. Radial Dynamic Load Rating Cr (N) 37500
3. ECLASS number 23-05-08-02
4. ECLASS2 number 23-05-08-02
5. Medias description Radial insert ball bearings GLE..-KRR-B, spherical outer ring, non-locating bearing, drive slot in inner ring, R seals on both sides
