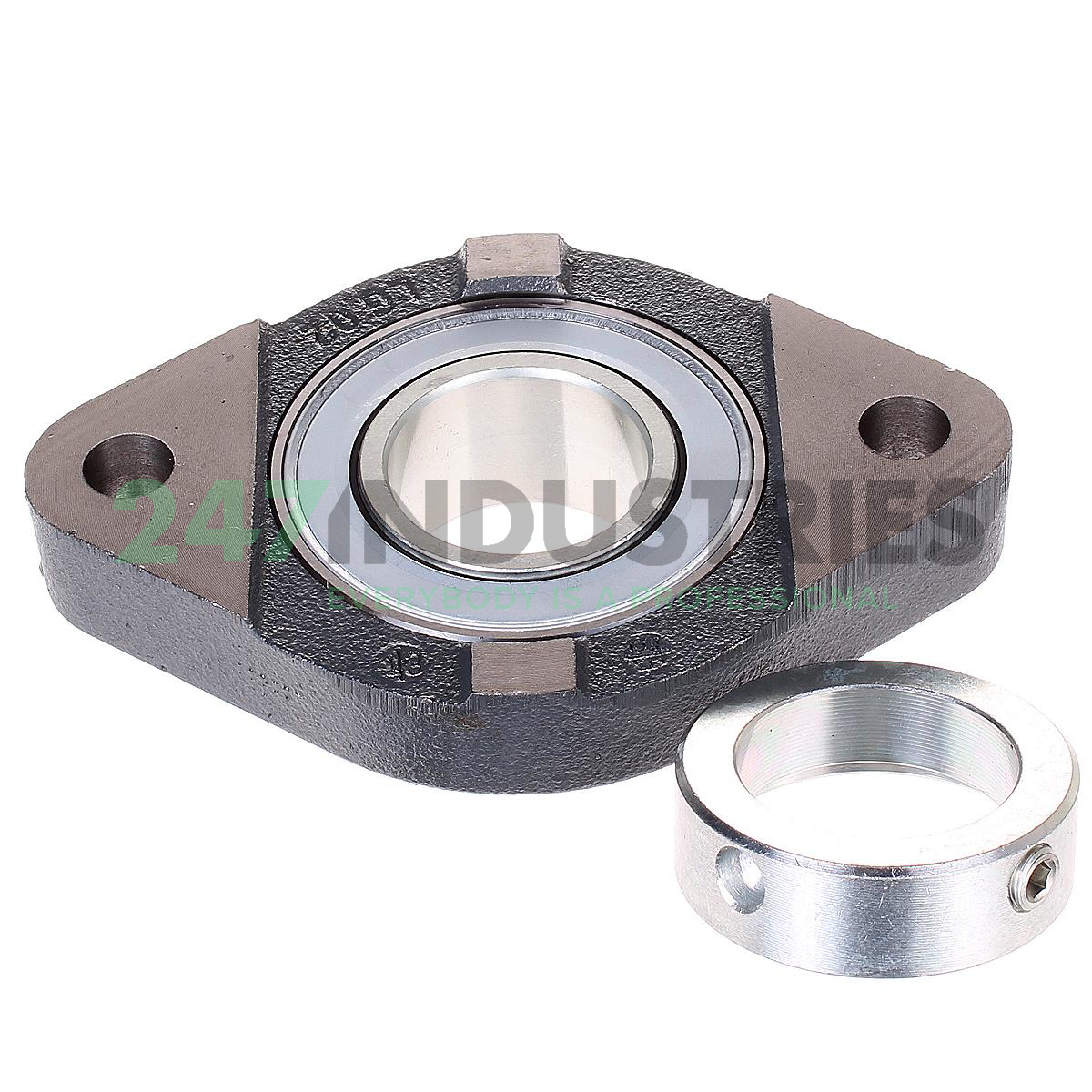

GLCTE40-XL INA

Housing and Bearing (assembly)

Stock
338 pcs in stock and ready for shipment
Brand INA
Article number GLCTE40-XL INA
Inside diameter 40mm
Outside diameter 150mm
Width 46,2mm
Product description

The GLCTE40-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: GLCTE40-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 40
  2. Outer (D) MM 150
  3. Width (B) MM 46,2
  4. Inner (d) Inch 1.5748
  5. Outer (D) Inch 5.9055
  6. Width (B) Inch 1.8189
  7. Flange width (L) mm 100
  8. Height flange (H) mm 150
  9. Total height unit (U) mm 46,3

Suffix description

  1. XL X-Life

Technical details

  1. Availability 338 pcs
  2. Brand INA
  3. Item number GLCTE40-XL INA
  4. Also known as 0008938380000
    FYTF40FM
    GLCTE40
    GRAE40NPPB + LCTE08
  5. EAN 4012802807745
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 1.27

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 19800
  2. Radial Dynamic Load Rating Cr (N) 34500
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units GLCTE, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
