GLCTE20-XL INA

€ 24,66 ex VAT
€ 29,84 in VAT
€ 29,84 in VAT
€ 24,66 ex VAT

Guaranteed same day shipment on orders placed before 18.00h (CET)
This product is available from stock
Worldwide shipping from the Netherlands
30 days return policy
Track your order through Track & Trace
iDeal, Mastercard, Visa, PayPal

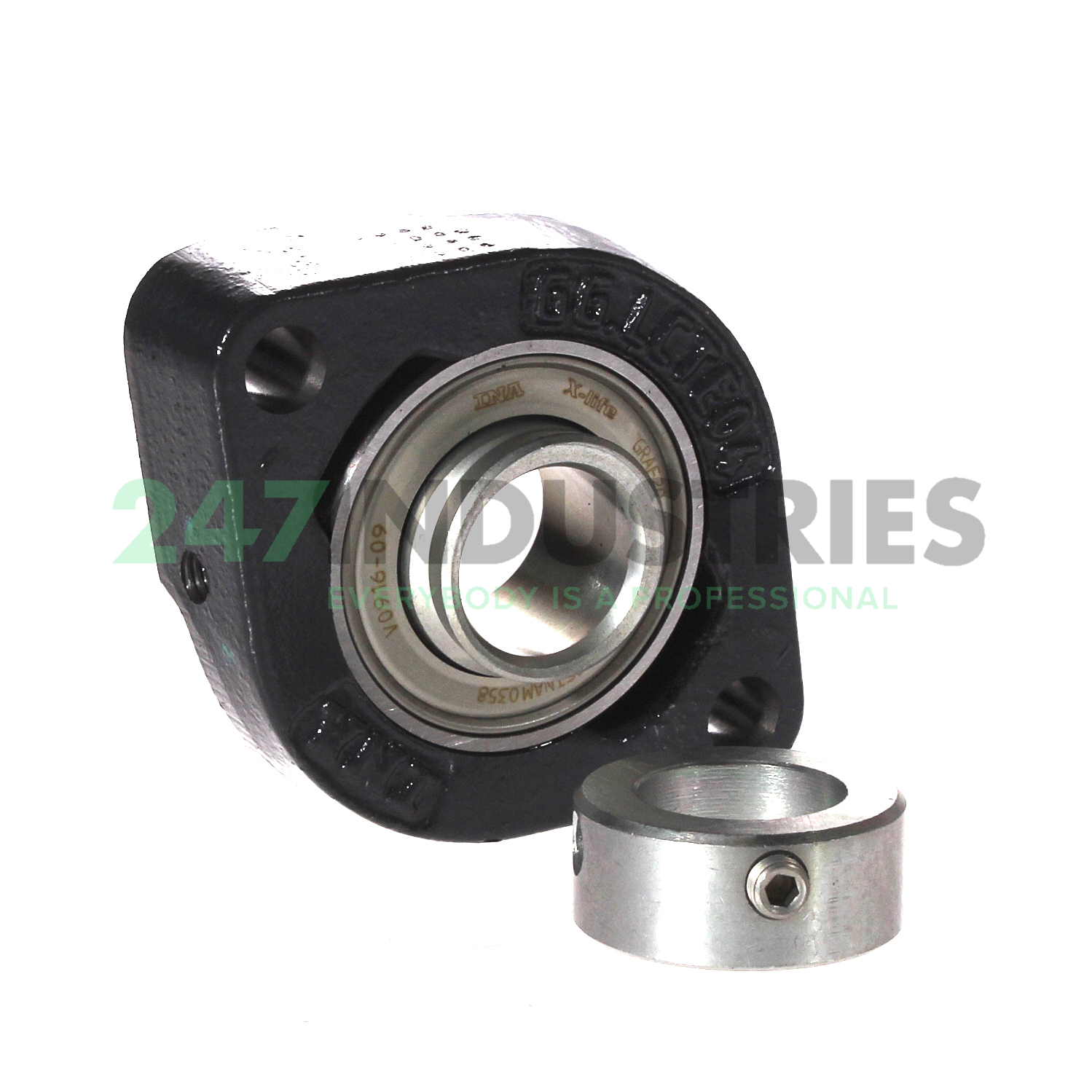

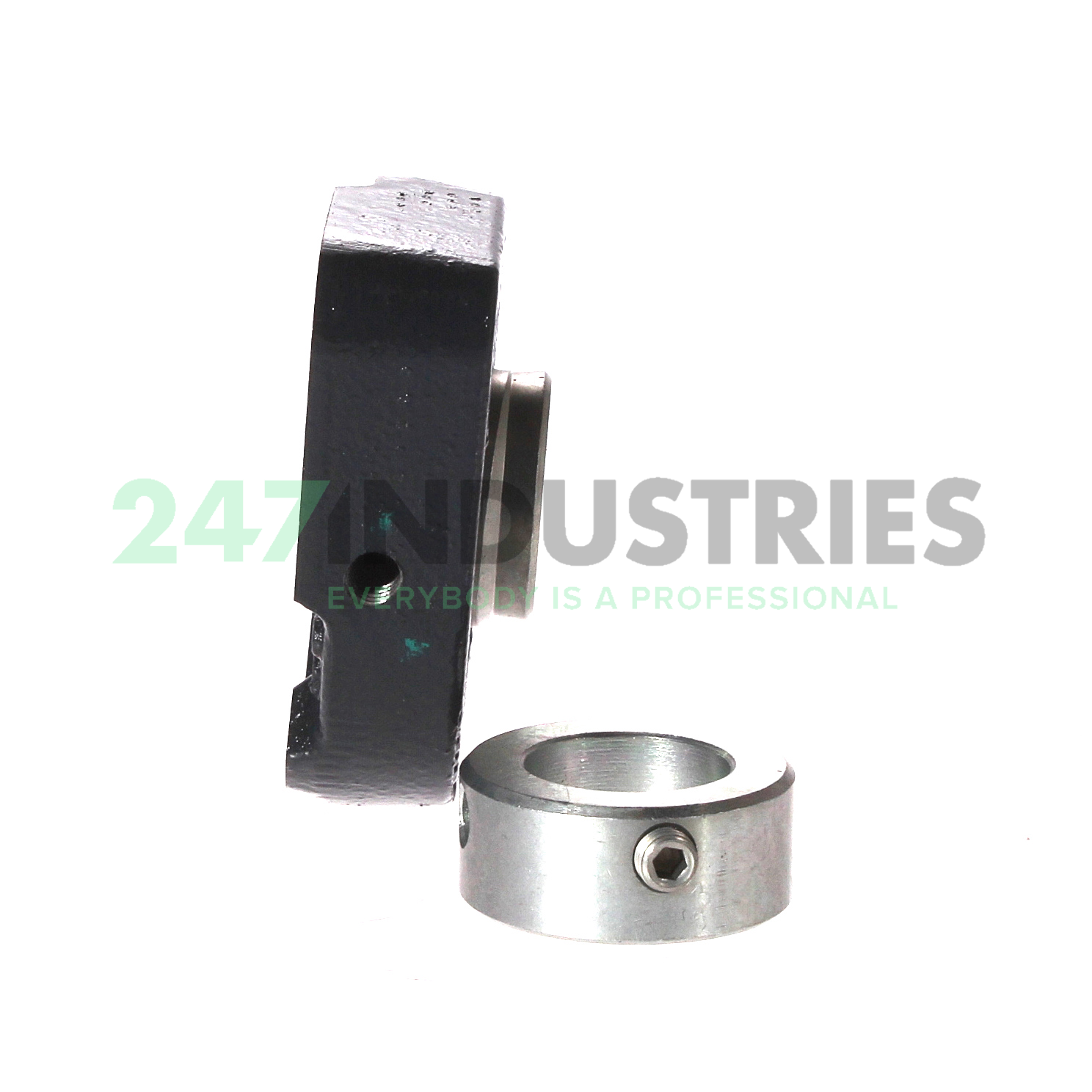

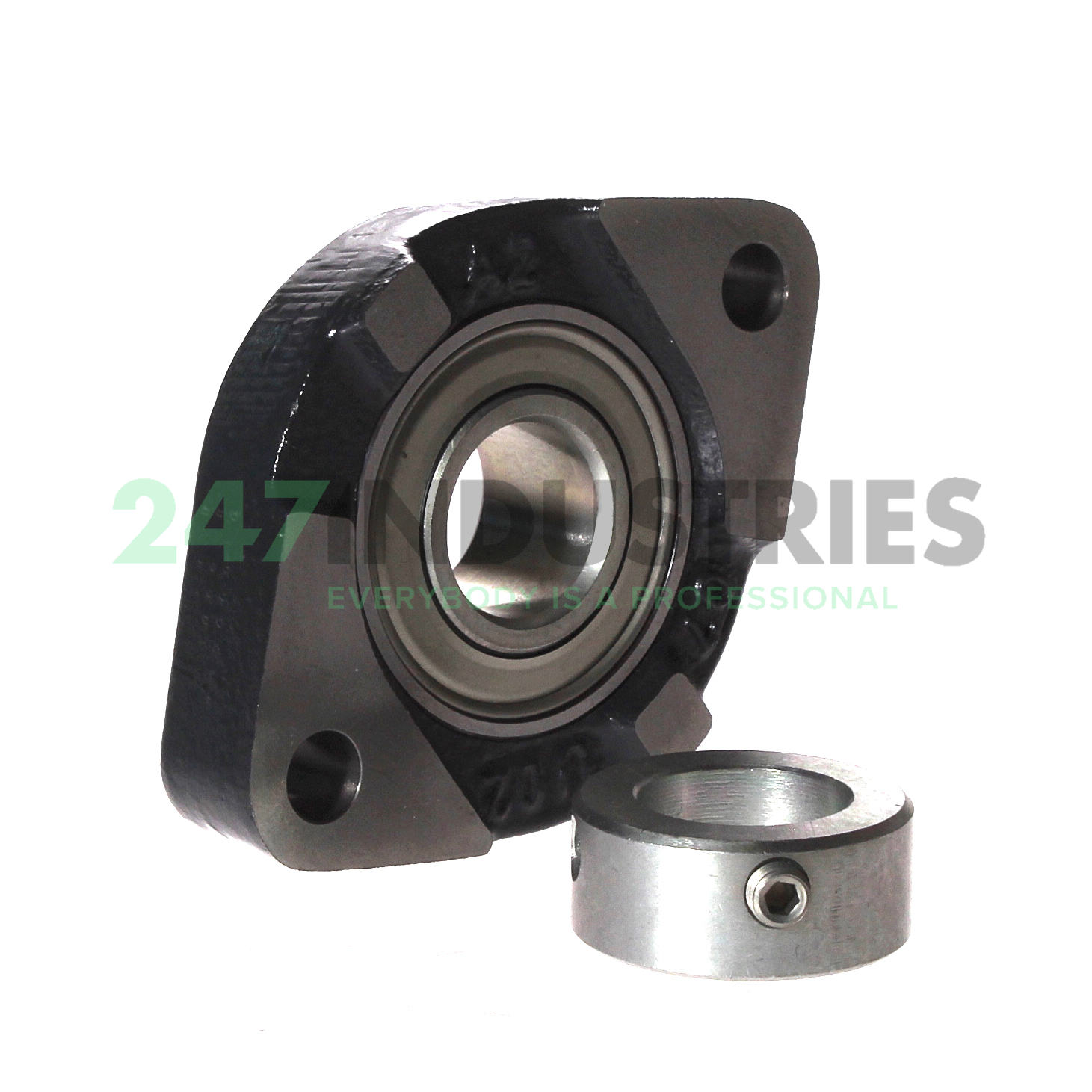

GLCTE20-XL INA

Housing and Bearing (assembly)

Stock
64 pcs in stock and ready for shipment
Brand INA
Article number GLCTE20-XL INA
Inside diameter 20mm
Outside diameter 90,5mm
Width 33mm
Product description

The GLCTE20-XL INA is a housing unit. The components of this bearing and housing assembly are matched to each other for reliable operation. This complete set is ready for use and easy to install. Housings simplify the installation of the bearing and shaft. Additionally, the bearing is supported and protected by the housing. Performing maintenance becomes easier while extending the bearing's lifespan.

Read more Show less
Help with this product

Downloads and links

Similar to: GLCTE20-XL INA

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 20
  2. Outer (D) MM 90,5
  3. Width (B) MM 33
  4. Inner (d) Inch 0.7874
  5. Outer (D) Inch 3.563
  6. Width (B) Inch 1.2992
  7. Flange width (L) mm 66,5
  8. Height flange (H) mm 90,5
  9. Total height unit (U) mm 33

Suffix description

  1. XL X-Life

Technical details

  1. Availability 64 pcs
  2. Brand INA
  3. Item number GLCTE20-XL INA
  4. Also known as 0008313440000
    GLCTE20
    GRAE20NPPB + LCTE04
    LFT204
  5. EAN 4012802791877
  6. Category Housing and Bearing (assembly)

Weight and Dimensions

  1. Weight (kg) 0.39

Product Properties

  1. Seal 2F - Standard Seal for Y-bearings
  2. Lubrication Standard Lubrication
  3. Special Treatment No Special Treatment

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 6600
  2. Radial Dynamic Load Rating Cr (N) 13600
  3. ECLASS number 23-05-16-02
  4. ECLASS2 number 23-05-16-02
  5. Medias description Housing units GLCTE, two-bolt flanged housing units, cast iron, eccentric locking collar, P seals

Downloads and links

  1. X-life brochure X-life brochure
  2. Link to manufacturer Link to manufacturer
Show all details Show less
