GIR10-DO INA

Rod end

Stock
45 pcs in stock and ready for shipment
Brand INA
Article number GIR10-DO INA
Width 9mm
Product description

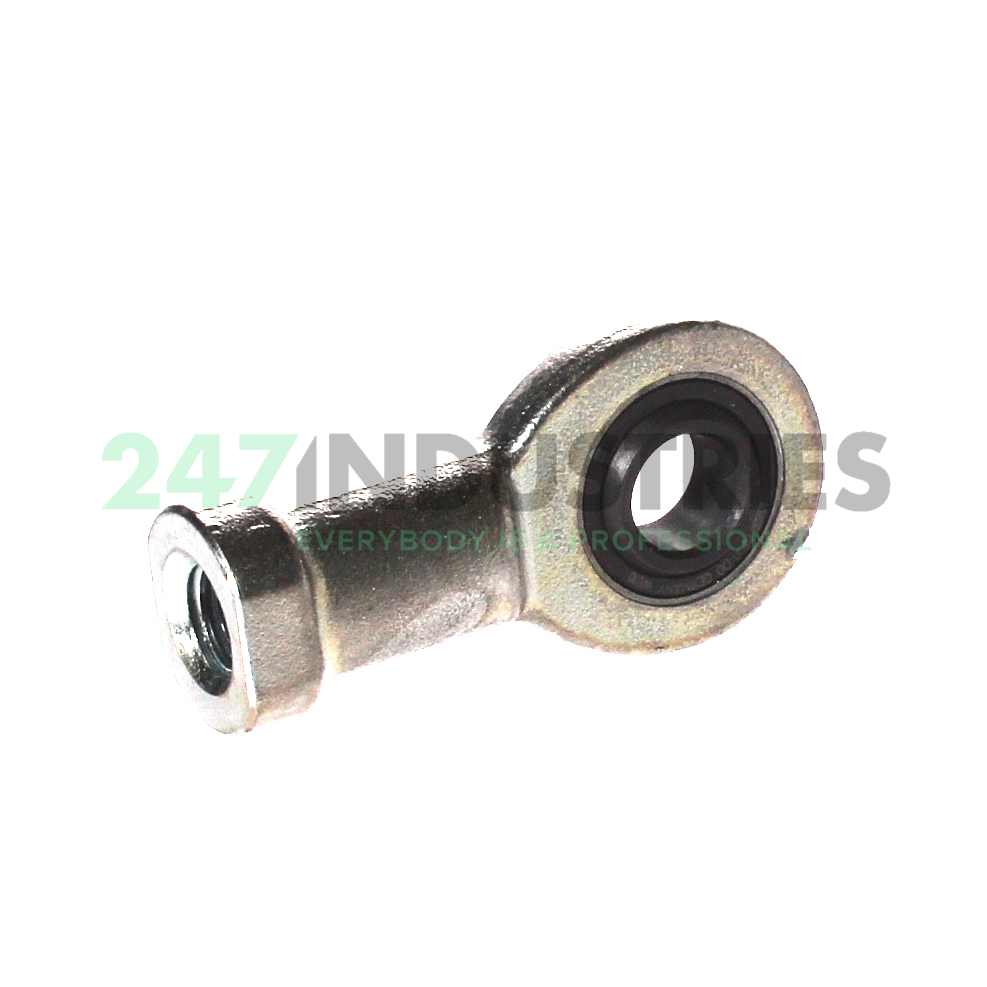

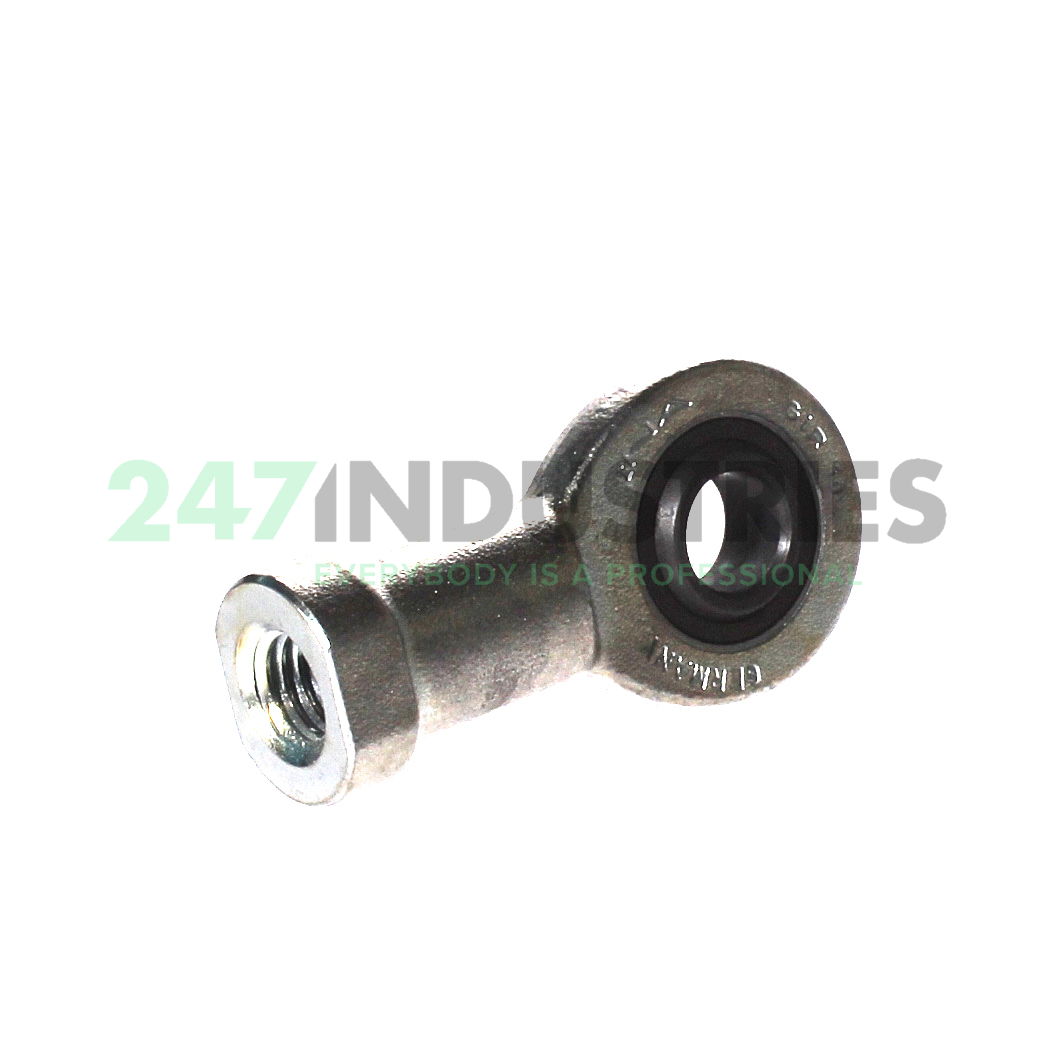

The GIR10-DO INA is a rod end. Rod ends consist of a housing with integral shank and a spherical plain bearing. This plain bearing is composed of an inner and outer ring without rolling elements. Rod ends are often mounted on the end of hydraulic or pneumatic cylinders. They are also used to connect two shafts. Rod ends can accommodate misalignment, and they support radial forces in a tensile or compressive direction.

The GIR10-DO INA has a spherical plain bearing with a steel-on-steel sliding contact. Both the outer and inner rings of this bearing are made of steel. Bearings with steel-on-steel sliding contacts are wear-resistant and have a high load carrying capacity. This bearing type requires regular maintenance. Proper lubrication is required to reduce friction and prevent fouling and corrosion.

Read more Show less
Help with this product

Similar to: GIR10-DO INA

Loading similair products

Product specifications

All dimensions

  1. Width (B) MM 9
  2. Width (B) Inch 0.3543

Suffix description

  1. DO Steel/Steel & Inner And Outer Ring Hardened

Technical details

  1. Availability 45 pcs
  2. Brand INA
  3. Item number GIR10-DO INA
  4. Also known as 0066306420000
    GIR10-ES
    SI10E
    TFI10FK
  5. EAN 4012802522907
  6. Category Rod End

Weight and Dimensions

  1. Weight (kg) 0.069

Product Properties

  1. Seal No Seal
  2. Contact Material Steel on Steel

Data from Schaeffler (medias)

  1. Medias description Rod end with internal thread, right hand thread, requiring maintenance, sliding contact surface: steel/steel, DIN ISO 12240-4, dimension series E, type F, open design
