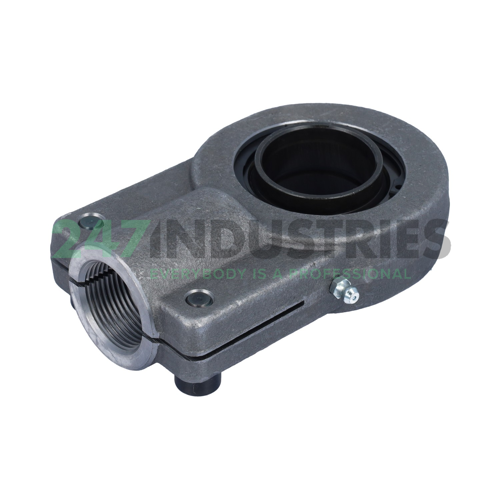

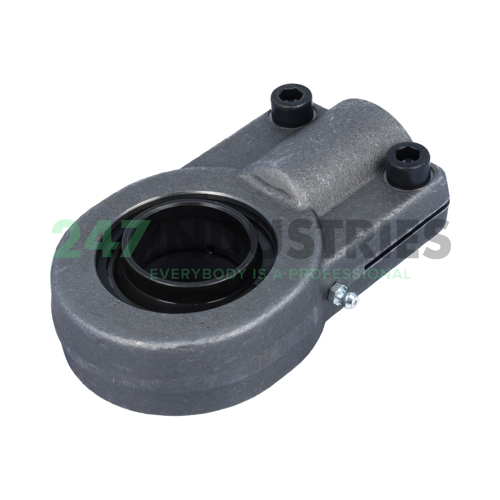

GIHNRK40-LO-C INA

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 89
3. Width (B) MM 40
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5039
6. Width (B) Inch 1.5748

Suffix description

1. LO Sliding Contact Surface Is Steel/Steel, Inner Ring Extended On Both Sides, Single Axial Split In Outer Ring
2. C The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)'

Technical details

1. Availability 8 pcs
2. Brand INA
3. Item number GIHNRK40-LO-C INA
4. Also known as 3022676620000
   SIQG40ES
   TAPR40CE

5. EAN 4064328483101
6. Category Rod End

Weight and Dimensions

1. Weight (kg) 1.91

Product Properties

1. Seal No Seal
2. Contact Material Steel on Steel

Downloads and links

1. Link to manufacturer Link to manufacturer
